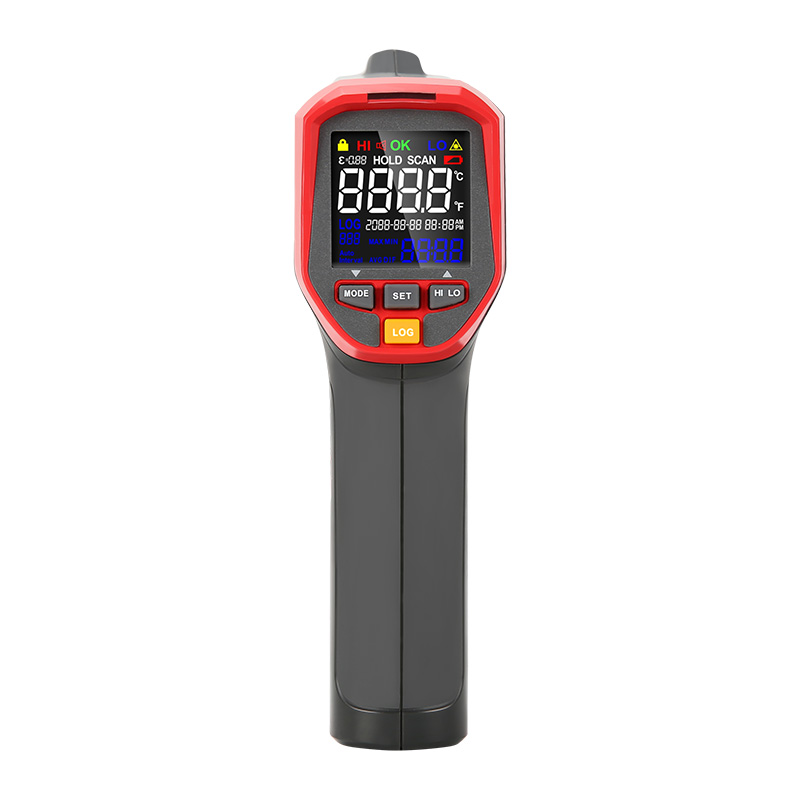

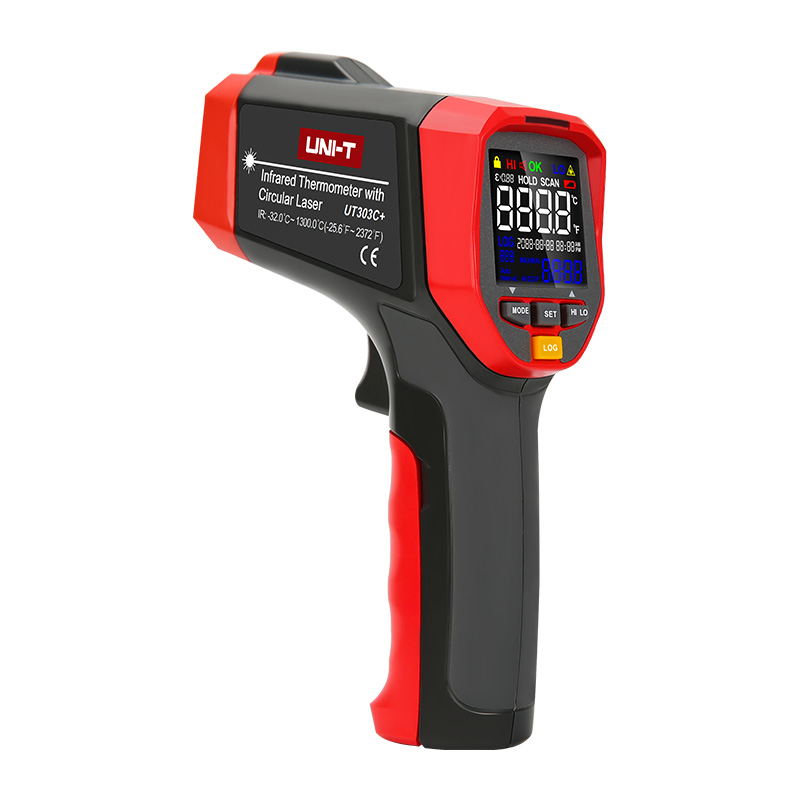

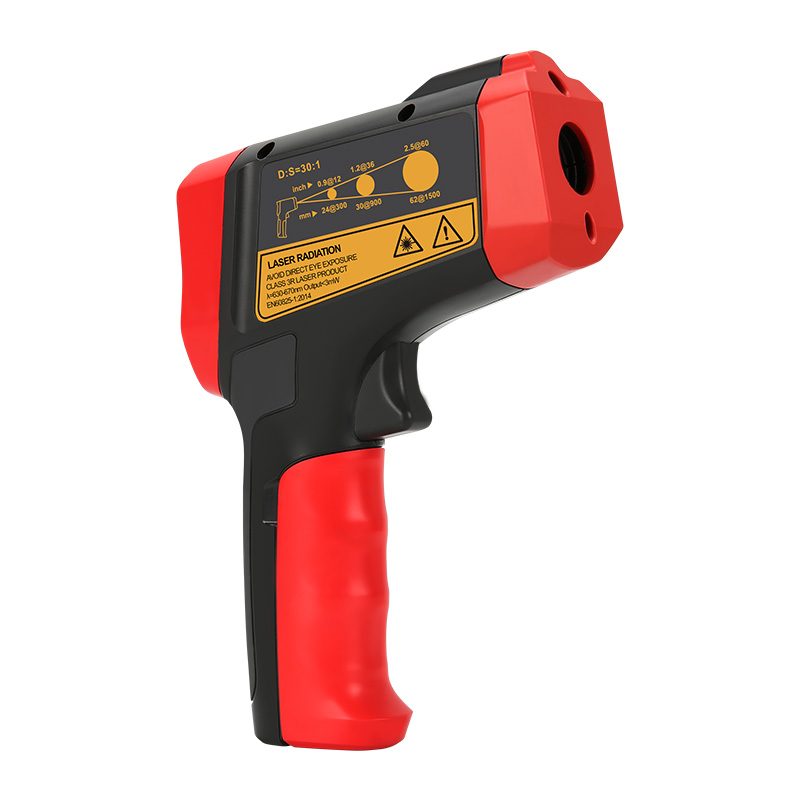

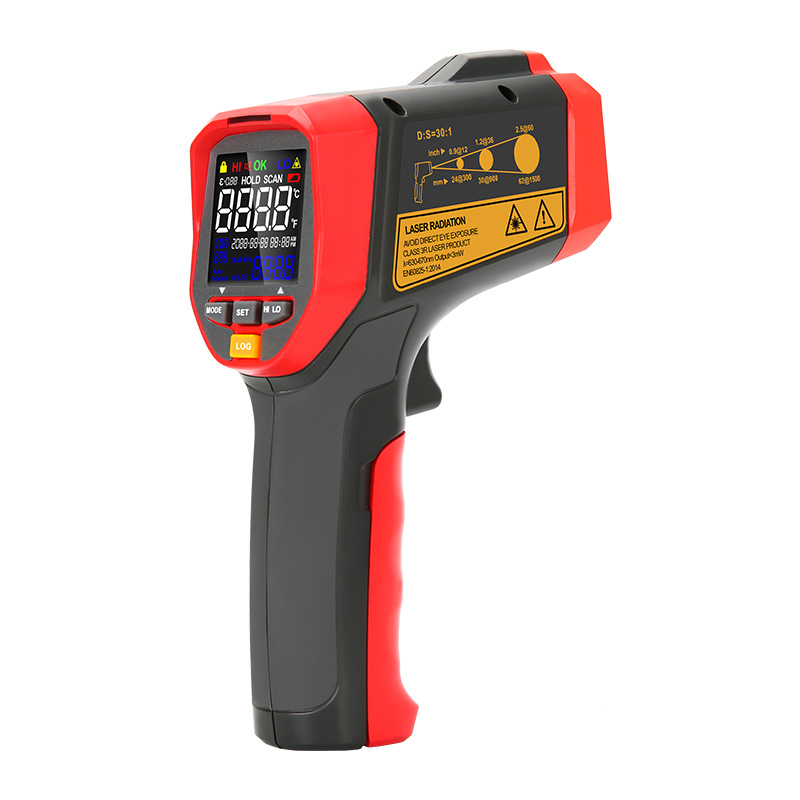

UT303C+ Infrared Thermometer

UT303C+ Infrared Thermometer

UT303+ series infrared thermometer can quickly and accurately determine the surface temperature by measuring the infrared energy radiated from the target surface. It is suitable for non-contact surface temperature measurement. The UT303C+ has ring laser, an unique patented display method that covers entire measured area, user will know exactly where the measurement is taking place.

Features:

• ±1.5℃ temperature measurement accuracy.
• User defined visual and audio alarm.
• High contrast EBTN color display.
• MAX/MIN/AVG/DIFF/Hold modes.
• Temperature recording up to 99 groups.
• Date/time display.
• Time scheduled measurement.

Specifications:

Temperature Range	-32℃~1300℃   /    -25.6℉~2372℉
Accuracy	≥0℃: ±1.5℃ or ±1.5%; <0℃: ±(1.5℃+0.1℃/℃)
Repeatability	0.7℃ or 0.7% (1.5℉ or 0.7%)
D:S Ratio	30:1
Response time	250ms
Emissivity	0.1~1.0 (adjustable, stores 5 sets of preset values)
Spectral Response	8um~14um
Laser power	< 1mW
Auto power off	Available
Low battery indication	Available
LCD display	Color EBTN
High/low LED alarm	Available
High/low audible alarm	Available
Data hold/Lock measurement	Available
℃/℉ selection	Available
MAX/MIN/AVG/DIFF mode	Available
Data storage with date and time	99
Scheduled measurement	Available
Backlight	Available
Operating temperature	0℃~50℃ (32℉~122℉)
Storage temperature	-20℃~60℃ (-4℉~140℉)
Operating humidity	<90%RH (non-condensing)
Drop test	1 meter
Tripod mounting hole	Available
Power	9V battery
Display	35mm x 35mm
Product color	Red and grey
Product net weight	310g
Product size	172mm x 113.5mm x 53mm
Standard accessories	Battery, carrying bag
Standard individual packing	Gift box, blister, English manual
Standard quantity per carton	10pcs
Standard carton measurement	425mm x 335mm x 365mm
Standard carton gross weight	6.65kg

Applications:

                                                                                                                         Air conditioning measurement

                                                                                                                                          Vehicle inspection

Documents:

UT303C+ UNI-T Infrared Thermometer Datasheet

UT303C+  Infrared Thermometer User Manual

Package Contents:

1 X UT303C+ UNI-T Infrared Thermometer.
