WiFi ESP8266-12-S Serial TTL Module
170.00 EGP
In stockSKU 3496300093472
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Overview

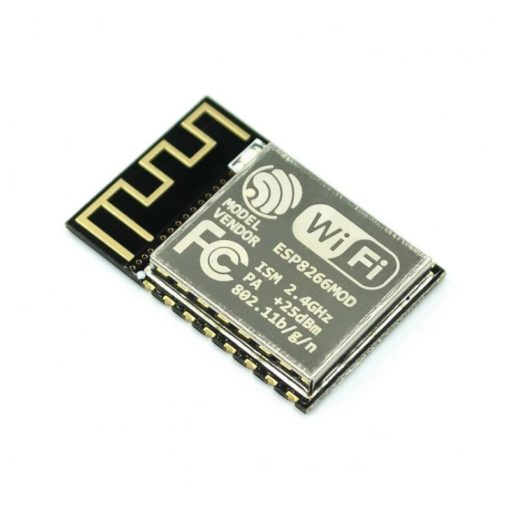

The ESP-12S is a WiFi module based on ESP8266, with built-in 32Mbit Flash, in the small SMD16 package. There’re also onboard PCB antenna and metal shield. In short, it’s a small form factor and fairly high cost effective WiFi module.
With the pre-flashed AT firmware, you can control the module through UART AT commands easily. The module integrates MCU inside, supports other developments like Lua/Micropython/Arduino to achieve flexible and fast prototyping, make it easy to integrate the module into IoT applications.
Features
- 802.11b/g/n Wi-Fi SOC
- Integrated Tensilica L106 ultra-low-power 32-bit micro MCU, run at 80 MHz and 160 MHz frequency, supports RTOS
- Built-in 1-ch 10 bit high precision ADC
- Supports UART/GPIO/ADC/PWM/I2C
- SMD16 package
- Integrated Wi-Fi MAC/ BB/RF/PA/LNA
- Supports multi sleep modes, deep sleep current as low as 20uA
- UART baud rate up to 4Mbps
- Embedded Lwip protocol stack
- Supports STA/AP/STA+AP operation mode
- Supports Smart Config (APP) / AirKiss (WeChat), one key networking
- Supports UART local firmware upgrade and/or remote firmware upgrade (FOTA)
- AT commands for getting started fast
- Supports secondary development, integrated Windows / Linux environment
Specification:
| Module Model | ESP-12S |
| WIFI chip | ESP8266 |
| Built-in Flash | 32Mbit |
| Package | SMD16 |
| Antenna | Onboard PCB antenna |
| Frequency range | 2.4G ~ 2.5G (2400M ~ 2483.5M) |
| WIFI protocol | 802.11b/g/n WiFi |
| WIFI mode | STA, AP, STA+AP |
| Security | WPA / WPA2 |
| Encryption | WEP / TKIP / AES |
| Firmware upgrade | UART / OTA |
| Transmitting power | 802.11b: 16 ±2dBm(@11Mbps) 802.11g: 14 ±2dBm(@54Mbps) 802.11n: 13 ±2dBm(@HT20,MCS7) |
| Receiving sensitivity | CCK,1Mbps: -90 dBm CCK,11Mbps: -85 dBm 6Mbps(1/2 BPSK): -88 dBm 54Mbps(3/4 64-QAM): -70 dBm HT20,MCS7(65Mbps, 72.2Mbps): -67 dBm |
| Power | Continuous Transmission: ~71mA (peak: 300mA) Model Sleep: ~20mA Light Sleep: ~2mA Deep Sleep: ~20uA |
| IO port | 9 |
| UART baudrate | 300 ~ 4608000 bps (default 115200bps) |
| Power supply | 3.0V ~ 3.6V (current > 500mA) |
| Operating temp. | -20 ℃ ~ 85 ℃ |
| Storage condition | -40 ℃ ~ 85 ℃, < 90%RH |
| Dimensions | 24x16x3 (mm) |
Pin Definition
The ESP-12S module leads to 16 pins
Applications
The ESP-12S suit for IOT applications such as:
- Smart home
- Intelligent building
- Industrial automation
- Wearable devices
- IP camera
- Intelligent agriculture
ESP-12S Datasheet
