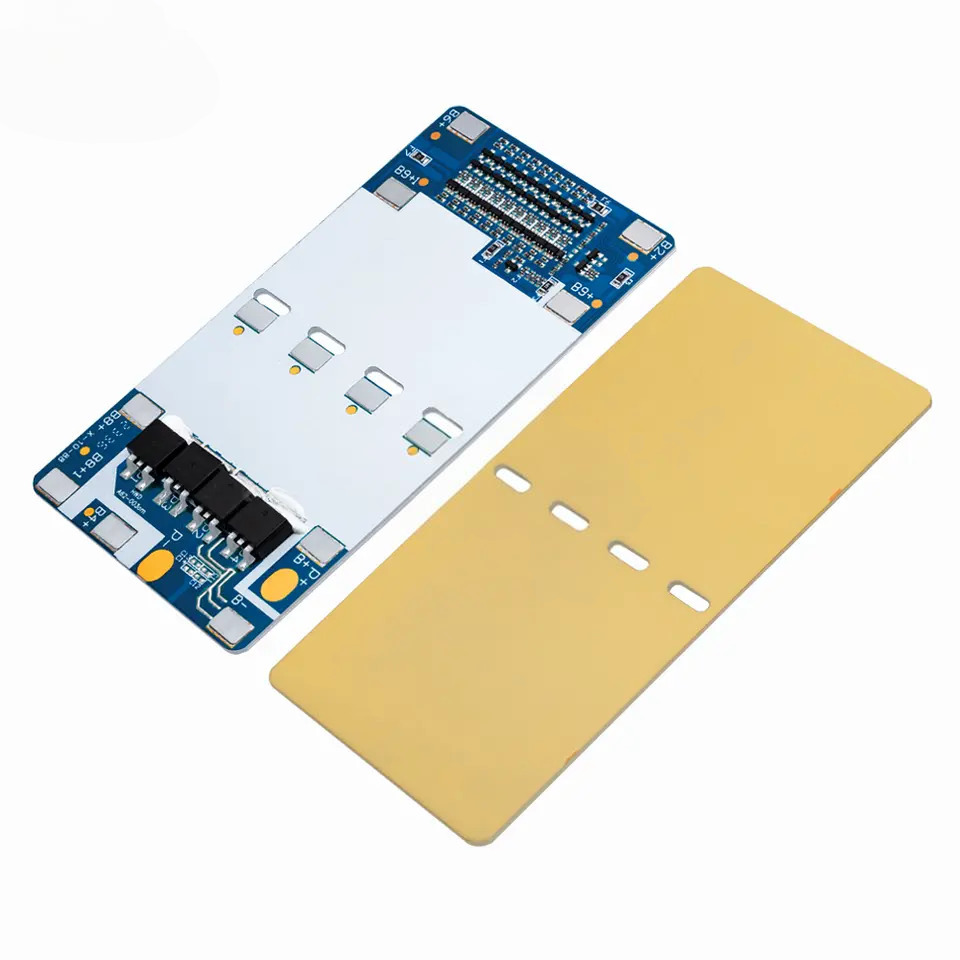

X-10-88 Hoverboard Battery Scooter BMS Protection Board 10S 36V 10A
The X-10-88 Battery Management System (BMS) is a reliable, high-performance protection board specifically engineered for 10S (36V) lithium battery packs. It provides essential balancing, management, and cell protection functions to ensure the longevity and safety of your battery systems. Ideally optimized for electric hoverboards, battery scooters, and custom e-mobility builds, this board prevents cell imbalances and damage by uniformly managing charging and discharging across all 10 cells in series.
Features
- Integrated Battery Balancing
- Onboard Protection Controls
- Clear Pinout Mapping
- Compact, High-Efficiency Layout
Specifications
| Parameter | Specification |
|---|---|
| Model / Board Markings | X-10-88 |
| Configuration | 10S |
| Nominal Voltage | 36V |
| Continuous Discharge Current | 10A |

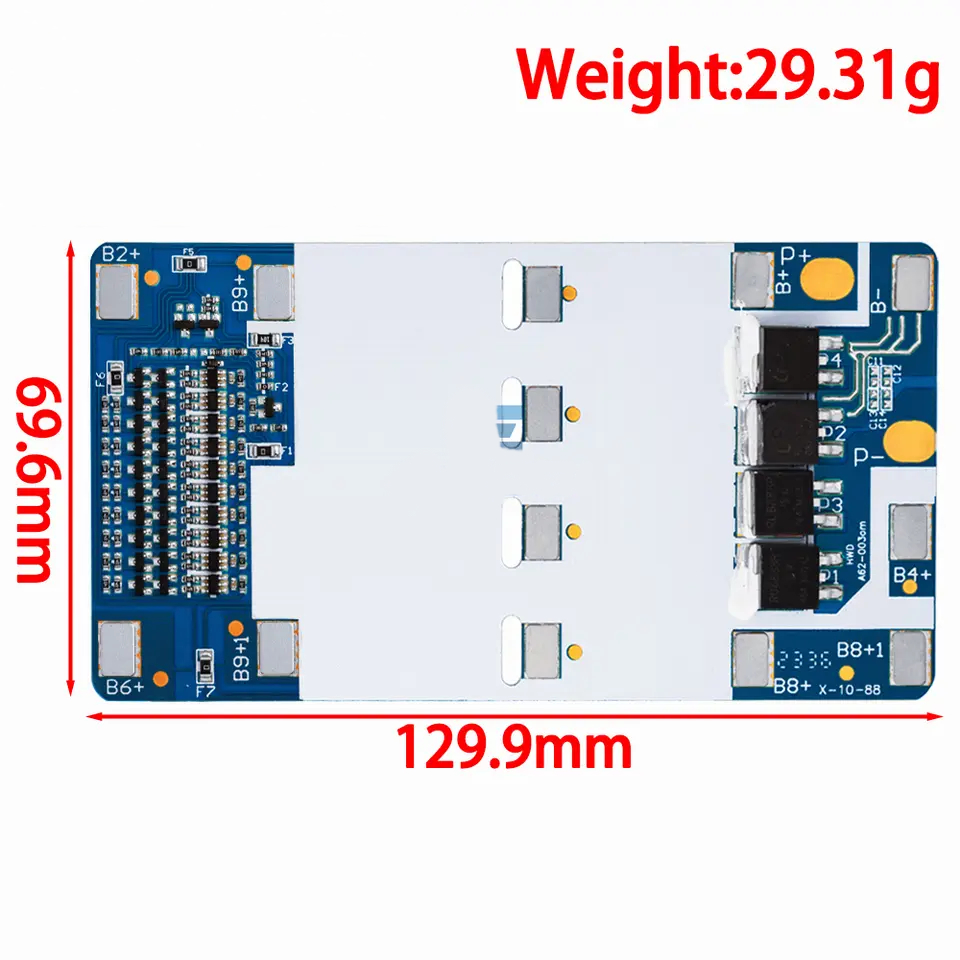

| Board Dimensions | 129.9 mm × 69.6 mm |
| Weight | 29.31g |
| Primary Power Terminals |
|
Applications
- Electric Hoverboards / Self-Balancing Scooters
- 36V E-Scooters and Light Electric Vehicles (LEVs)
- Custom 10S Lithium-Ion Battery Packs
- Portable DIY Power Banks and Electronic Projects
Package Contents
- 1 x X-10-88 Hoverboard Battery Scooter BMS Protection Board 10S 36V 10A
