XBLW DS1307DTR 64X8 Serial Real Time Clock SMD IC SOP-8
The XBLW DS1307DTR is a low-power real-time clock (RTC) integrated circuit designed to maintain time and calendar information in electronic systems. It tracks seconds, minutes, hours, day of the week, date, month, and year, with automatic calendar adjustment for months of different lengths and leap-year compensation through 2100. The clock supports both 12-hour and 24-hour formats.
Features:
- Full binary-coded decimal (BCD) clock/calendar with leap-year compensation valid up to 2100.
- 56 bytes of nonvolatile SRAM for reliable data storage during power interruptions.
- Standard 2-wire serial I2C interface for simplified microcontroller communication.
- Programmable square-wave output signal for system timing and synchronization.
- Automatic power-fail detection and seamless switch circuitry to backup battery.
Specifications:
|
Parameter
|
Value
|
|---|---|
|
Manufacturer
|
XBLW
|
|
Model Number
|
DS1307DTR
|
|
Component Type
|
Serial Real-Time Clock (RTC)
|
|
Package Type
|
SOP-8
|
|
Memory Capacity
|
64×8 (56 bytes NV SRAM)
|
|
Supply Voltage (VCC)
|
4.5V to 5.5V
|
|
Battery Backup Voltage
|
2.0V to 3.5V
|
|
Supply Current
|
1mA
|
|
Backup Current
|
<1µA
|
|
Interface
|
2-Wire Serial (I2C)
|
|
Clock Frequency
|
32.768kHz
|
|
Time Format
|
12-hour or 24-hour with AM/PM
|
|
Operating Temperature
|
-40°C to +85°C
|
|
Square Wave Output
|
Yes
|

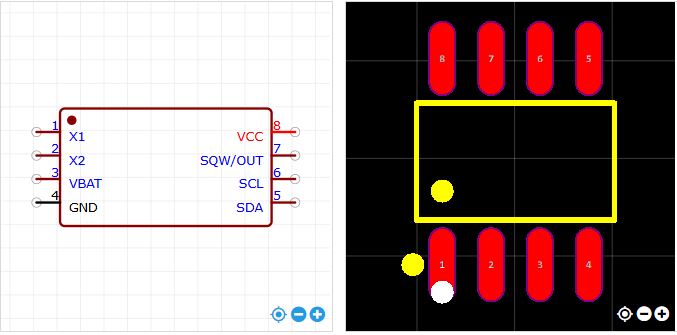

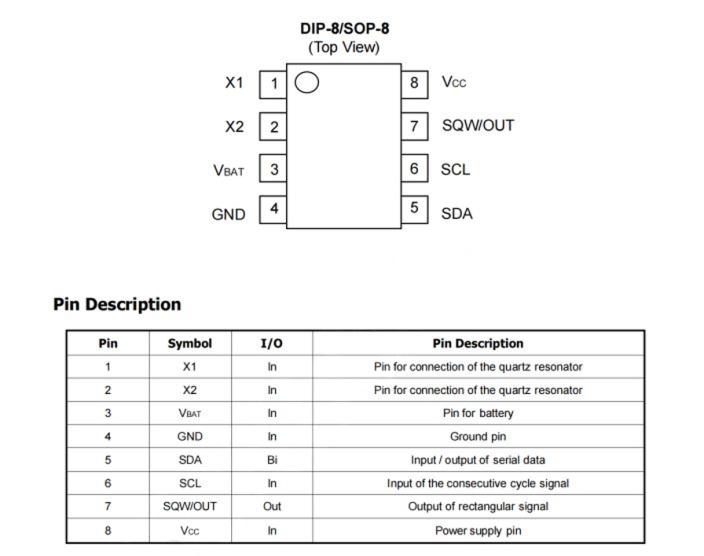

Pin Configuration:

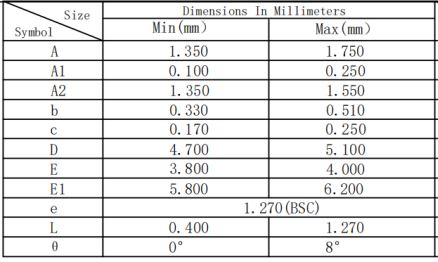

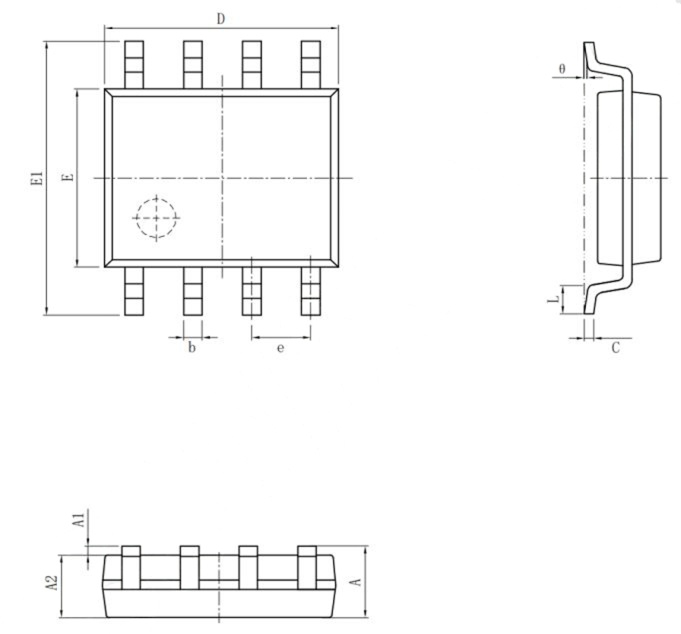

Footprint:
Applications:
- Portable instrumentation and handheld electronic devices.
- Battery-powered consumer electronics and backup systems.
- Smart utility meters including electricity, water, and gas meters.
- Telecommunication equipment and mobile communication devices.
- Industrial control systems requiring precise time stamping.
- Automotive electronics and vehicle data logging applications.
Package Include:
1x XBLW DS1307DTR 64X8 Serial Real Time Clock SMD IC SOP-8.
