XLR Microphone Cable Connector 3 Pin for Wire – Blue Ring Male

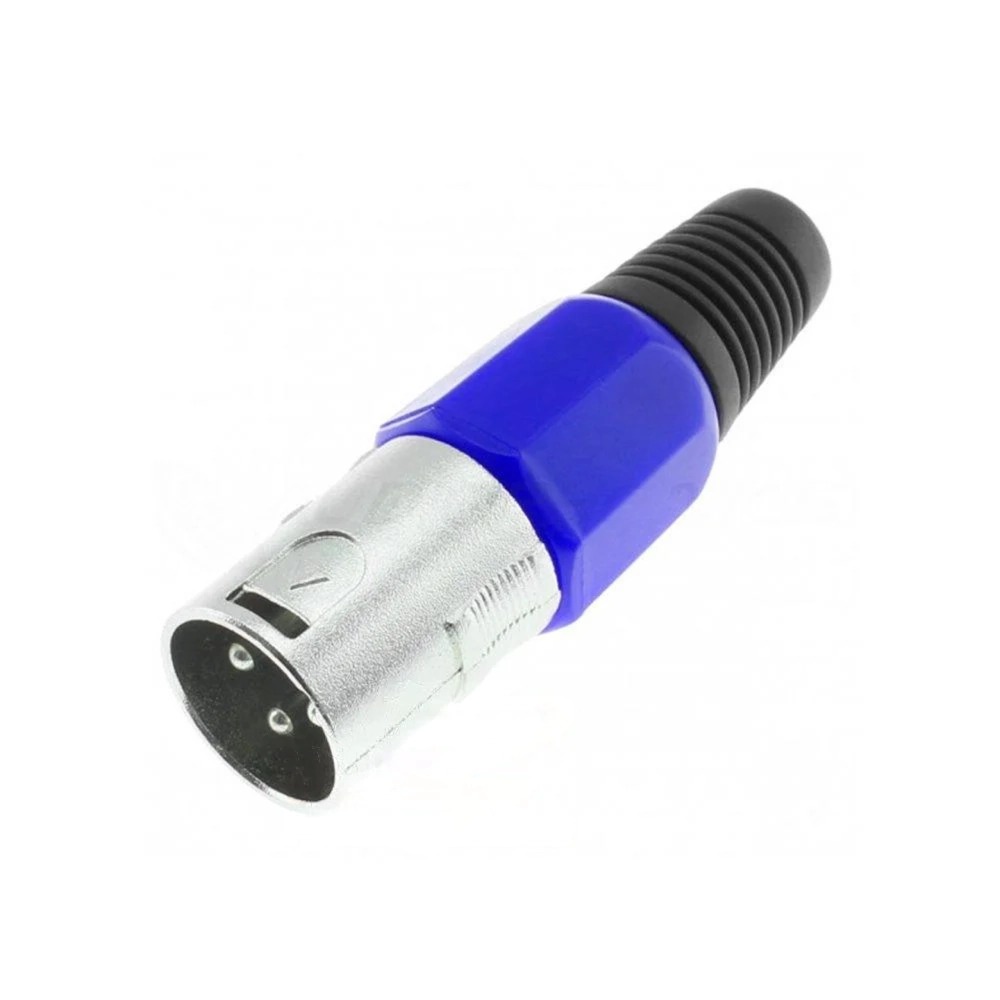

The XLR Microphone Cable Connector 3 Pin for Wire – Blue Ring Male is a cable-mounted audio connector designed for microphone cables and balanced audio signal connections. It features a three-pin male interface with a metal connector body, a blue plastic outer ring, and a black flexible cable strain relief. The connector is suitable for assembling or repairing compatible audio cables used in recording equipment, sound systems, and live audio setups.
Features:
- Professional 3-pin male XLR configuration for balanced audio signal transmission.
- Distinctive blue ring casing enables quick and easy visual cable identification.
- High-conductivity copper alloy contacts with nickel plating for superior signal integrity.
- Solder-type termination ensures a permanent and highly reliable electrical connection.
- Accommodates cable outer diameters up to 8mm for secure strain relief.

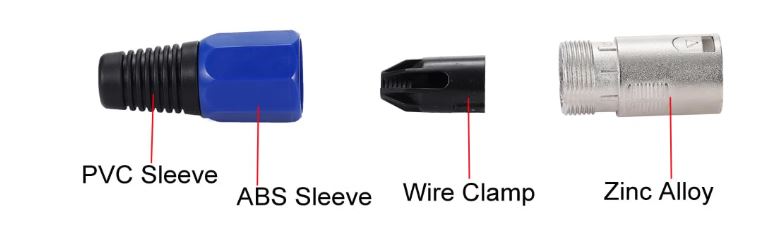

- Robust plastic housing with an integrated latch lock mechanism to prevent accidental disconnection.

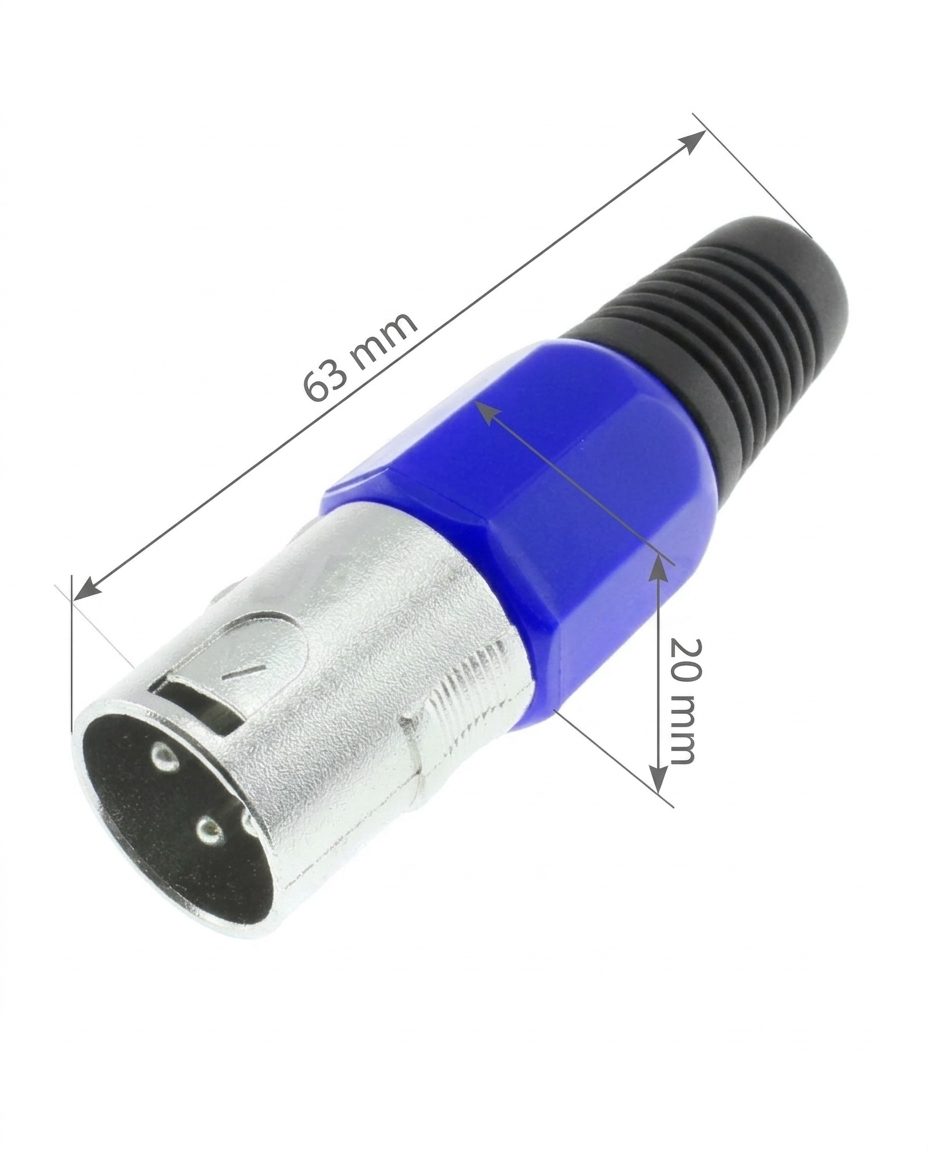

- Compact dimensions of 63mm in length and 20mm in casing diameter for ergonomic handling.
Specifications:
|
Parameter
|
Value
|
|---|---|
|
Connector Type
|
Male XLR
|
|
Number of Pins
|
3
|
|
Termination Method
|
Solder
|
|
Max Cable Diameter
|
8mm
|
|
Overall Length
|
63mm
|
|
Casing Diameter
|
20mm
|
|
Contact Material
|
Copper Alloy
|
|
Contact Plating
|
Nickel
|
|
Insulation Material
|
Polyethylene
|
|
Color Identification
|
Blue Ring
|
|
Locking Mechanism
|
Integrated Latch Lock
|
|
Application
|
Balanced Audio Transmission
|
Applications:
- Microphone cable assembly.
- Balanced audio cable construction.
- Audio cable repair and replacement.
- Mixing consoles and audio interfaces with compatible XLR sockets.
- Live sound and PA systems.
- Recording studios and home audio setups.
- Cable identification in multi-cable installations.
Package Include:
1x XLR Microphone Cable Connector 3 Pin for Wire – Blue Ring Male
