YCRELAY YC19F-DC5V-SHG Power Relay 2A 8 Pin
YC19F-DC5V-SHG is a 5VDC 2A DPDT power relay with 8-pin design, ideal for PCB use. Handles up to 2A at 30VDC or 1A at 125VAC for reliable low-power switching.
26.00 EGP
Buy NowYCRELAY YC19F-DC5V-SHG Power Relay 2A 8 Pin
The YCRELAY YC19F-DC5V-SHG Power Relay 2A 8 Pin is a compact and reliable 8-pin DPDT (Double Pole Double Throw) relay designed for general-purpose switching applications. Operating on a 5VDC coil voltage, it features dual switch contacts that can handle currents up to 2A at 30VDC or 1A at 125VAC. With its small DIP-style form factor, the relay is ideal for PCB mounting in compact electronic circuits.
It offers fast switching times, long mechanical life, and stable performance, making it suitable for signal control, automation, instrumentation, and low-power switching tasks in both consumer and industrial electronics.
Features:
- Compact 8-pin DIP package for easy PCB mounting.
- DPDT (Double Pole Double Throw) contact configuration.
- Operates on 5VDC coil voltage with low power consumption.
- Supports up to 2A at 30VDC or 1A at 125VAC switching capacity.
- Fast response time with stable and reliable operation.
- Silver alloy contacts ensure good conductivity and durability.
- High mechanical life of up to 10 million operations.
- Suitable for signal control, automation, and general low-power switching applications.
Specifications:
| Specification | Value |
|---|---|
| Manufacturer Brand: | YCRELAY |
| Model: | YC19F |
| Product Main Category: | General-Purpose Relay |
| Relay Type: | Signal Relay |
| Contact Configuration: | DPDT (2 Form C, Dual Pole Double Throw) |
| Contact Material: | Silver Alloy |
| Contact Termination: | PCB |
| Mounting Type: | Through-hole |
| Package Type: | 8-pin DIP |
| Enclosure: | Sealed Plastic Case |
| Coil Voltage: | 5V DC |
| Coil Current: | 30mA |
| Coil Resistance: | 167Ω at 20°C |
| Max Switching Current: | 2A at 30VDC / 1A at 125VAC / 0.5A at 250VAC |
| Max Switching Voltage: | Up to 250VAC or 125VDC |
| Max Switching Power: | 125VA / 60W |
| Operate Time: | ≤ 6ms |
| Release Time: | ≤ 4ms |
| Electrical Life: | ~100,000 operations at 30VDC resistive load |
| Mechanical Life: | ~10,000,000 operations at 300 ops/min |
| Dielectric Strength (Coil to Contact): | 1000VAC for 1 minute |
| Dielectric Strength (Between Open Contacts): | 600VAC for 1 minute |
| Insulation Resistance: | ≥ 100MΩ at 500VDC |
| Operating Temperature: | -30°C to +70°C |
| Shock Resistance: | Functional: 10g / Destructive: 100g |
| Vibration Resistance: | 10–55Hz, amplitude 1.5mm |
| Humidity Range: | 40% to 85% RH |
| Dimensions (L×W×H): | 20mm × 10mm × 12mm |

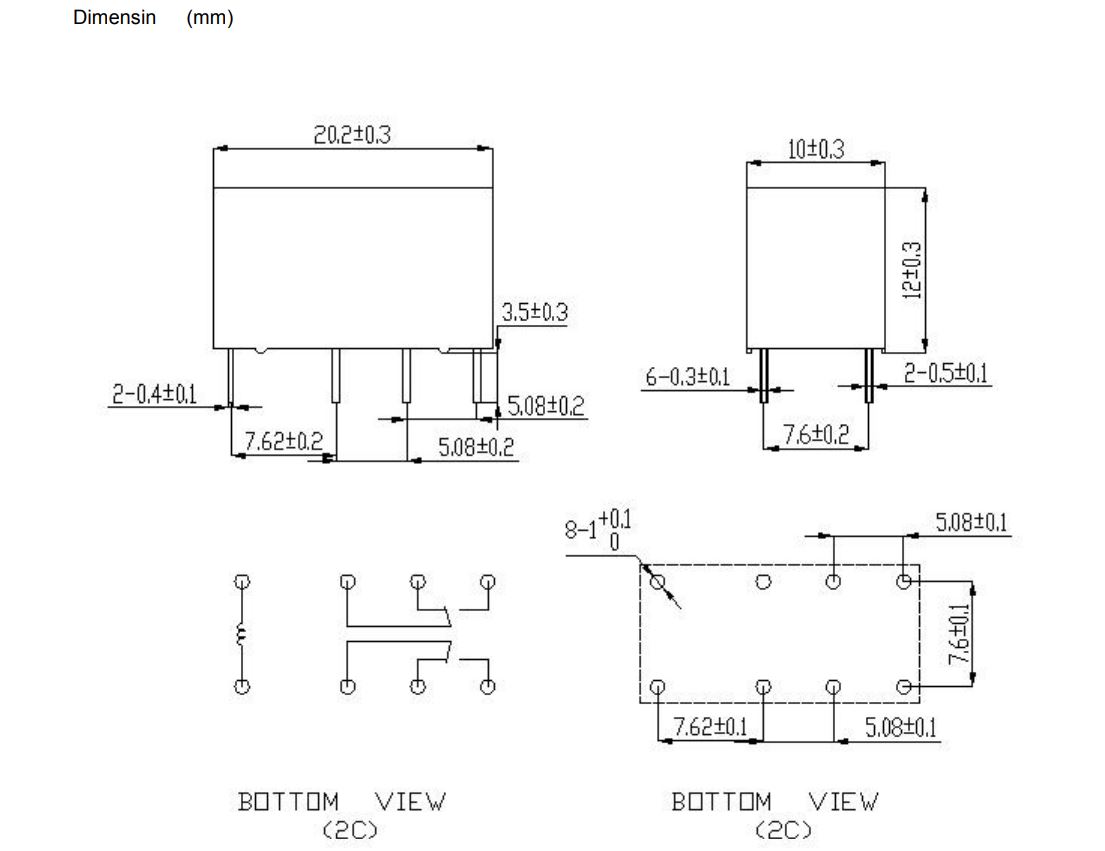

Dimensions:
Pinout:
| Pin Number | Pin Name | Description |
| 1 | COIL1 | Drawn from one side of the coil |
| 8 | COIL2 | Drawn from other side of the coil |
| POLE1 CONNECTIONS | ||
| 2 | C1 | Common Terminal of POLE1 |
| 3 | N/C 1 | Normally Closed Terminal of POLE1 |
| 4 | N/O 1 | Normally Open Terminal of POLE1 |
| POLE2 CONNECTIONS | ||
| 7 | C2 | Common Terminal of POLE1 |
| 6 | N/C 2 | Normally Closed Terminal of POLE2 |
| 5 | N/O 2 | Normally Open Terminal of POLE2 |
Applications:
- Signal Switching.
- Instrumentation Circuits.
- Telecommunication.
- Home Automation.
- Industrial Control Systems.
- Security Systems.
- Consumer Electronics.
- Power Management.
Package Contents:
- 1x YCRELAY YC19F-DC5V-SHG Power Relay 2A 8 Pin
