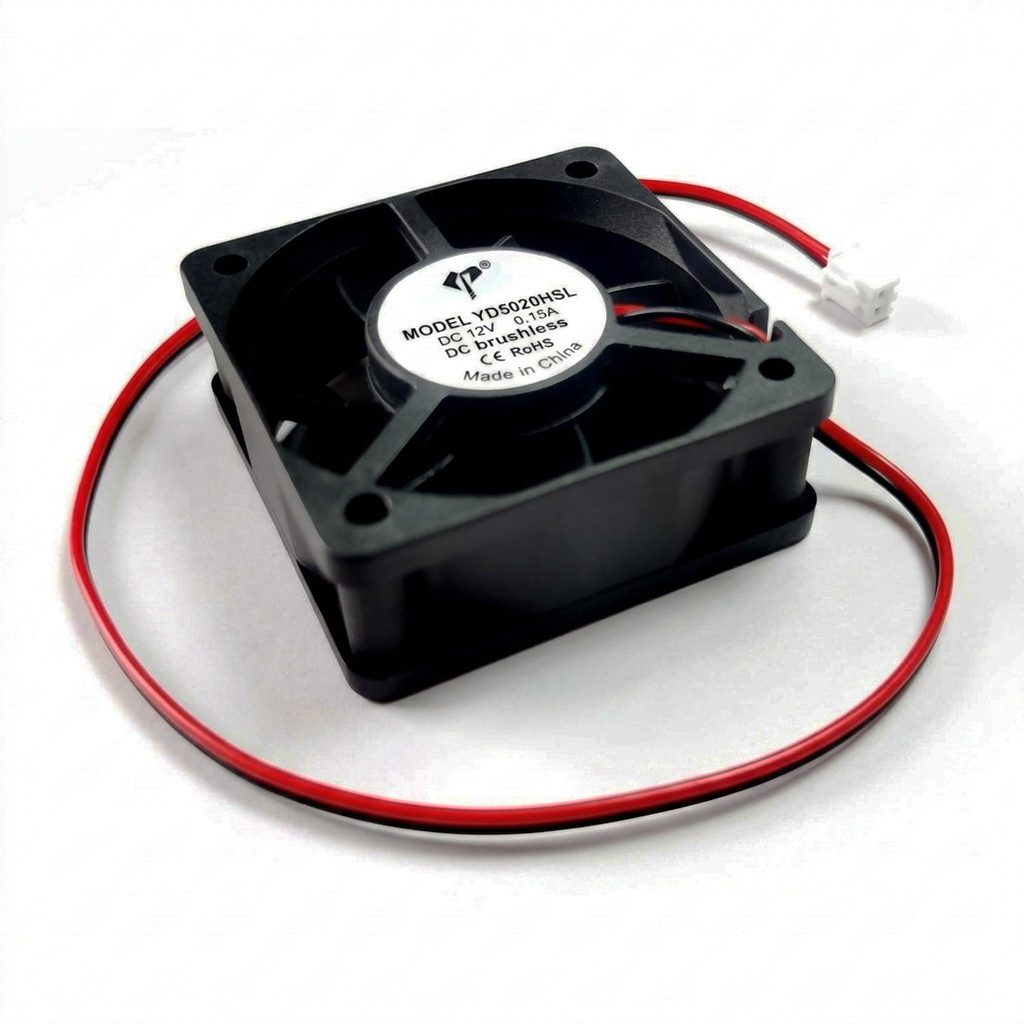

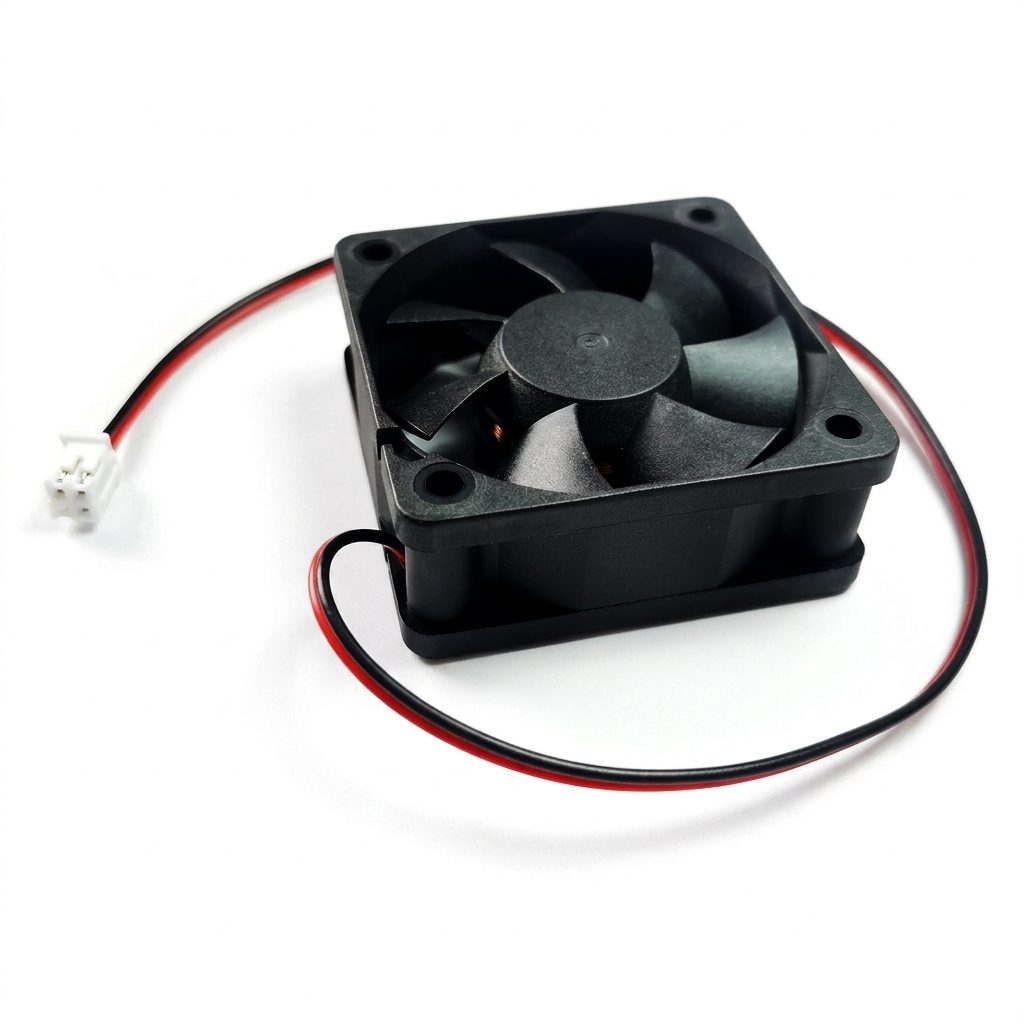

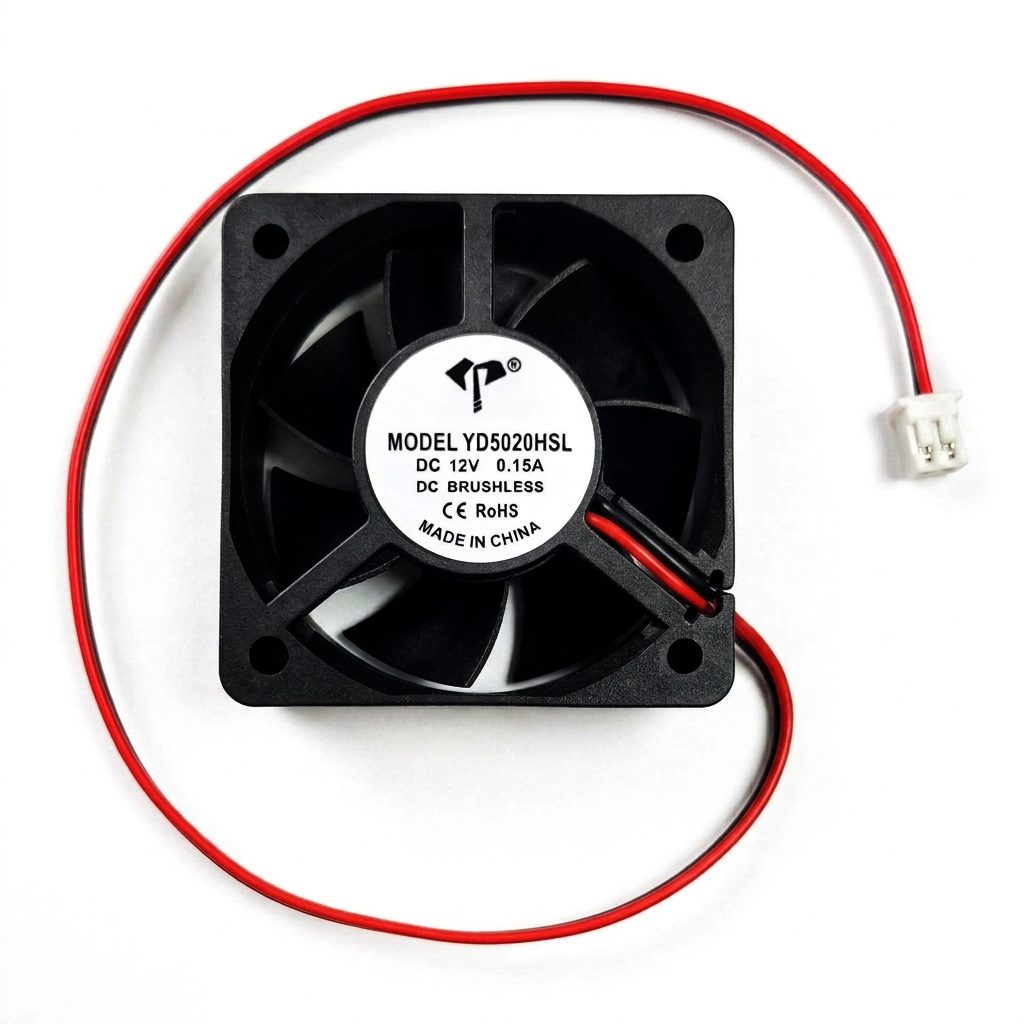

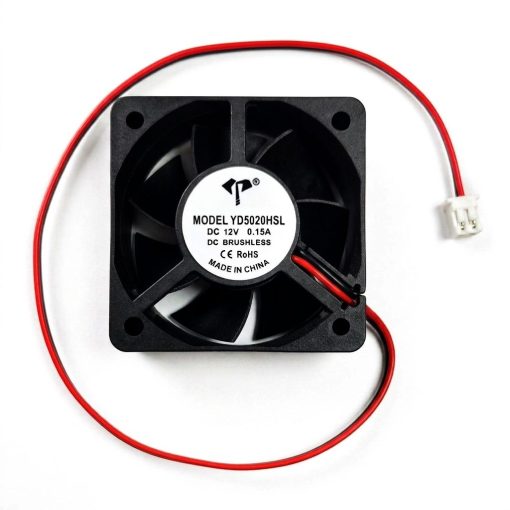

YD5020HSL DC Fan 12V 0.15A 50x50x20mm
YD5020HSL DC Fan 12V 0.15A 50x50x20mm is a compact brushless DC cooling fan designed for reliable heat dissipation in electronic devices. Operating at 12VDC with a current rating of 0.15A, it delivers efficient airflow while maintaining low noise and long service life. Its 50×50×20mm form factor makes it suitable for power supplies, control cabinets, 3D printers, communication equipment, and other applications requiring dependable cooling performance.
Features
- Operates from a 12VDC power supply.
- Low power consumption of0.15A.
- Brushless motor for long service life.
- Provides stable airflow for effective cooling.
- Compact 50mm square design.
- Low noise operation.
- High reliability for continuous use.
- Lightweight and easy to install.
- Suitable for electronic cooling applications.
- Durable plastic housing.
- Ideal for enclosed equipment ventilation.
- Two-wire power connection for simple wiring.
Specifications
| Parameter | Details |
|---|---|
| Product Type | Brushless DC Cooling Fan |
| Model | YD5020HSL |
| Operating Voltage | 12VDC |
| Rated Current | 0.15A |
| Power Consumption | 1.8W |
| Fan Dimensions | 50mm × 50mm × 20mm |
| Fan Type | Axial Fan |
| Motor Type | Brushless DC Motor |
| Bearing Type | Sleeve Bearing |
| Number Of Wires | 2 |
| Connector Type | 2 Pin |
| Red Wire | +12V Power Input |
| Black Wire | 0V Ground ( GND ) |
| Housing Material | Plastic |
| Blade Material | Plastic |
| Rotation Direction | Counter Clockwise ( Viewed From Label Side ) |
| Mounting Type | Screw Mount |
| Cooling Method | Forced Air |
| Application | Electronic Equipment Cooling |
Applications
- Power supply cooling.
- Electronic enclosure ventilation.
- 3D printers.
- Control panels.
- Industrial automation equipment.
- Network equipment.
- Communication devices.
- LED power supplies.
- DIY electronics projects.
- Embedded systems.
- Mini servers.
- Computer cooling projects.
Package Contents
- 1 x YD5020HSL DC Fan 12V 0.15A 50x50x20mm
