4114R-001-103 BUSSED RESISTOR NETWORKS 10KΩ 2% DIP-14
4114R-001-103 bussed resistor network, 10KΩ, 14-pin DIP, 0.125W per element, ±2% tolerance. 13 resistors with common pin for pull-up/pull-down applications.
75.00 EGP
Buy Now4116R-001-103 BUSSED RESISTOR NETWORKS 10KΩ 2% DIP-14
The 4114R-001-103 is a thick film bussed resistor network housed in a rugged 14-pin molded DIP package. This reliable resistor network provides 13 nominally equal 10KΩ resistors, each connected between a common pin (pin 14) and discrete individual pins. The 4114R-001-103 is engineered with thick film resistive elements and offers low temperature coefficient characteristics, making it an ideal choice for engineers and hobbyists working on digital logic pull-up/pull-down applications, open collector configurations, and wired-OR circuits. Its compact low-profile design and compatibility with automatic insertion equipment reduce total assembly costs while ensuring consistent performance across all elements.
Features
- Bussed schematic with 13 resistors and one common pin.
- Low profile molded DIP construction for compact designs.
- Rugged package with superior integrity for durability.
- Thick film resistive elements for stable performance.
- Low temperature coefficient of ±100ppm/°C.
Specifications:
| Type | Thick Film Resistor Network |
| Schematic | Bussed (2 Circuit) |
| Number of Resistors | 13 |
| Resistance Value | 10KΩ (10,000Ω) |
| Tolerance | ±2% (Standard), ±1% (F) and ±0.5% (D) available |
| Power Rating per Element | 0.125W at +70°C |
| Package Power Rating (Max at +70°C) | 2.00W |
| Temperature Coefficient (TCR) | ±100ppm/°C (-55°C to +125°C) |
| TCR Tracking | ±50ppm/°C maximum; equal values |
| Maximum Operating Voltage | 100V |
| Operating Temperature Range | -55°C to +125°C |
| Storage Temperature Range | -55°C to +150°C |
| Insulation Resistance | >10,000MΩ minimum |
| Dielectric Withstanding Voltage | 200VRMS |

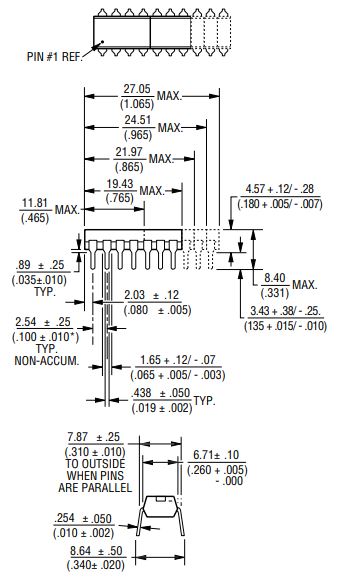

| Package Type | DIP-14 (Dual-In-Line) |
| Pin Count | 14 |
| Mounting Style | Through-Hole |
Applications
- MOS/ROM pull-up and pull-down networks.
- Open collector pull-up circuits.
- Wired OR pull-up configurations.
- Power driven pull-up applications.
- TTL input pull-down networks.
- Digital pulse squaring circuits.
- TTL unused gate pull-up configurations.
- High speed parallel pull-up applications.
Package Include:
1x 4116R-001-103 BUSSED RESISTOR NETWORKS 10KΩ 2% DIP-14.
