4116R-G90-472 BUSSED RESISTOR NETWORKS 4.7KΩ DIP-16
The 4116R-G90-472 is a bussed resistor network array featuring multiple 4.7kΩ resistors integrated into a compact DIP-16 through-hole package. This resistor network is designed to simplify PCB layouts, reduce discrete component count, and improve assembly efficiency in digital and electronic circuits. The bussed configuration connects one terminal of all resistor elements to a common pin, making the device ideal for pull-up, pull-down, and signal termination applications.
Features:
- Bussed schematic with 15 resistors and one common pin.
- Low profile molded DIP construction for compact designs.
- Rugged package with superior integrity for durability.
- Thick film resistive elements for stable performance.
- Low temperature coefficient of ±100ppm/°C.
- Excellent TCR tracking of ±50ppm/°C maximum between equal value resistors.
- Reduces total assembly costs with integrated network design.
- Compatible with automatic inserting equipment.
- Wide resistance range availability from 10Ω to 10MΩ.
- RoHS compliant lead-free versions available.
Specifications:
| Parameter | Value |
|---|---|
| Type | Thick Film Resistor Network |
| Schematic | Bussed (2 Circuit) |
| Number of Resistors | 15 |
| Resistance Value | 4.7kΩ |
| Tolerance | ±2% (Standard), ±1% (F) and ±0.5% (D) available |
| Power Rating per Element | 0.125W at +70°C |
| Package Power Rating (Max at +70°C) | 2.25W |
| Temperature Coefficient (TCR) | ±100ppm/°C (-55°C to +125°C) |
| TCR Tracking | ±50ppm/°C maximum; equal values |
| Maximum Operating Voltage | 100V |
| Operating Temperature Range | -55°C to +125°C |
| Storage Temperature Range | -55°C to +150°C |
| Insulation Resistance | >10,000MΩ minimum |
| Dielectric Withstanding Voltage | 200VRMS |

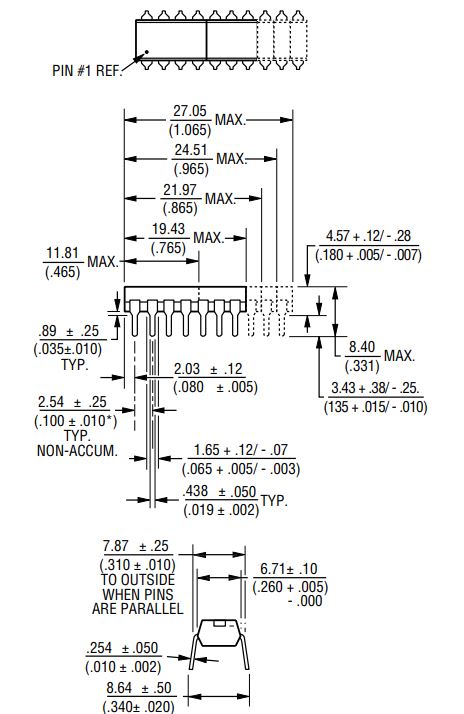

| Package Type | DIP-16 (Dual-In-Line) |
| Pin Count | 16 |
| Lead Frame Material | Copper, solder coated |
| Body Material | Novolac epoxy |
| Flammability | UL94V-0 |
| Mounting Style | Through-Hole |
Applications:
- MOS/ROM pull-up and pull-down networks.
- Open collector pull-up circuits.
- Wired OR pull-up configurations.
- Power driven pull-up applications.
- TTL input pull-down networks.
- Digital pulse squaring circuits.
- TTL unused gate pull-up configurations.
- High speed parallel pull-up applications.
Package Include:
1x 4116R-G90-472 BUSSED RESISTOR NETWORKS 4.7KΩ DIP-16
