50011BH Single Digit 7 Segment Red Led Display 5 inch Common Anode
50011BH 0.5″ 7 Segment LED is aBright red single-digit display with common anode (10-pin). Reliable numeric indicator for clocks, counters & control panels.
475.00 EGP
Buy Now50011BH Single Digit 7 Segment Red Led Display 5 inch Common Anode
The 50011BH is a single-digit 7-segment LED display designed to provide clear and efficient numeric output in electronic circuits and embedded systems. Utilizing bright red LED segments, the display offers excellent visibility while maintaining low power consumption, making it suitable for both battery-powered and mains-powered applications. Its compact 0.5-inch digit height provides an ideal balance between readability and board space utilization.
Features:
- Single-digit 7-segment LED display.
- Common anode configuration.
- Bright red LED illumination.
- Compact 0.5-inch digit height.
- High visibility numeric output.
- Standard through-hole mounting.
- Low power consumption.
Specification:
| Part No | 50011-BSR |
| Dimension | 140x105mm |
| Digit height | 5 inch |
| Surface color | Black and Gray |
| Segment color | White |
| Emitting color | Red |
| Pin configuration |
Common Anode |

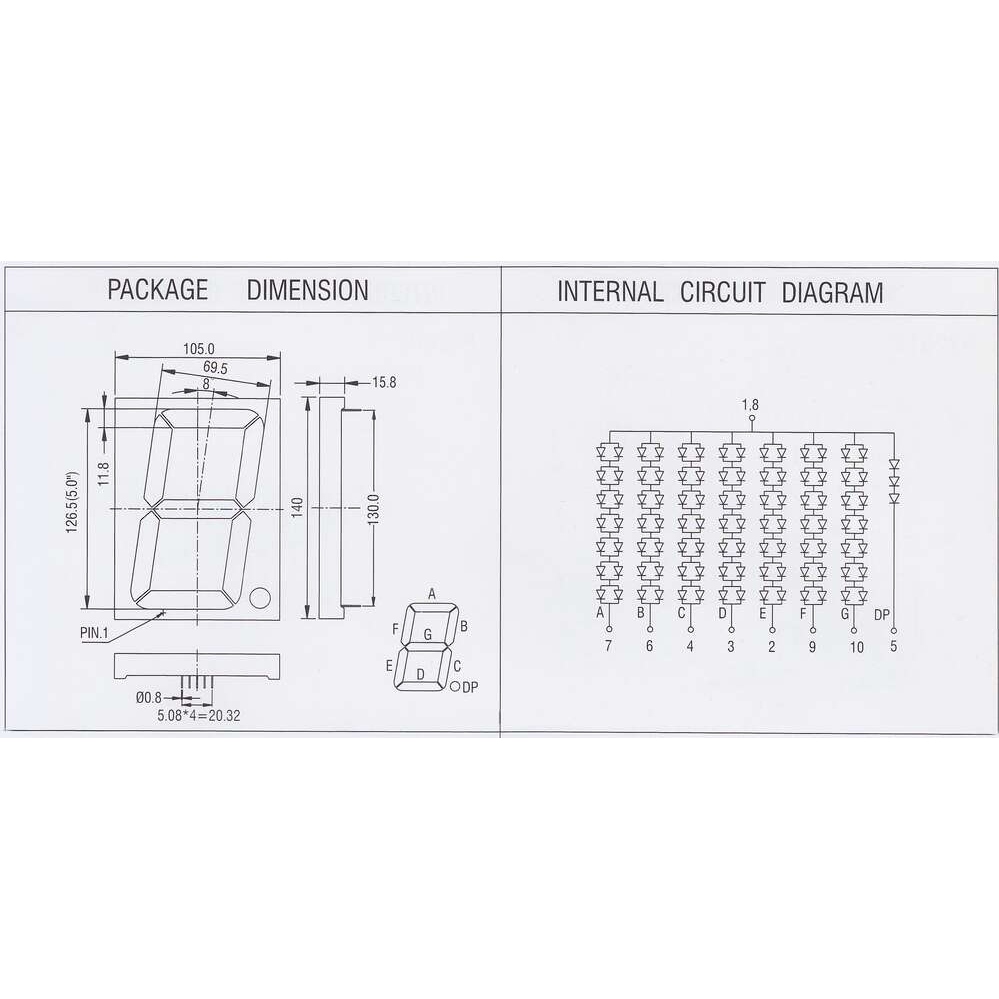

Package Dimension & Internal Circuit Diagram
| Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | ||
| (λp) | λ | Typ | Max | ||
| Red | IF=15mA | 620-625 | 20 | 1.8 | 2.0 |
Applications:
- Digital clocks.
- Electronic counters.
- Frequency meters.
- Digital voltmeters.
- Temperature display units.
- Industrial control panels.
- Educational electronics projects.
- Embedded system interfaces.
- Scoreboards and timers.
- Test and measurement equipment.
- DIY electronics projects.
- Numeric display modules.
Package Include:
1x 50011BH Single Digit 7 Segment Red Led Display 5 inch Common Anode
