50N06 N Channel Mosfet

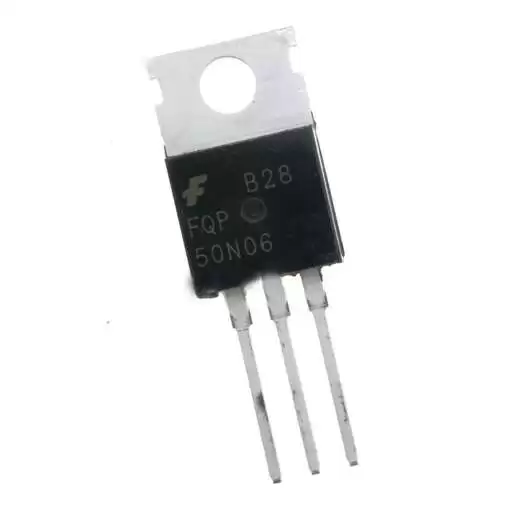

50N06, N Channel Mosfet Types It is from the TO-220 sheath. 50N06,N Channel Mosfet It is of type. 50N06 has a Gate-Source voltage of 60V and a continuous output current of 50A.
In order to see the functions and functions of the 50N06 Special Mosfets Series in more detail, please check the datasheet file of this MOSFET.
Product Attributes
TYPE | DESCRIPTION |
Series | QFET® |
Package | Tube |
Product Status | Obsolete |
FET Type | N-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 60 V |
Current – Continuous Drain (Id) @ 25°C | 50A (Tc) |
Drive Voltage (Max Rds On, Min Rds On) | 10V |
Rds On (Max) @ Id, Vgs | 22mOhm @ 25A, 10V |
Vgs(th) (Max) @ Id | 4V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs | 41 nC @ 10 V |
Vgs (Max) | ±25V |
Input Capacitance (Ciss) (Max) @ Vds | 1540 pF @ 25 V |
FET Feature | – |
Power Dissipation (Max) | 120W (Tc) |
Operating Temperature | -55°C ~ 175°C (TJ) |
Mounting Type | Through Hole |
Supplier Device Package | TO-220-3 |
Package / Case | TO-220-3 |
Base Product Number | FQP50 |
