7405 Hex Inverters with Open-Collector Output IC
The 7405 Hex Inverters with Open-Collector Output IC is a standard TTL logic device that integrates six independent inverter gates within a single package. Each gate inverts its input logic level, providing a logical “NOT” function while requiring external pull-up resistors due to the open-collector transistor outputs. This device is useful in digital logic systems where signal inversion and open-collector interfacing are needed for wired-AND combinations, level shifting, or interfacing with other logic families.
Features:
- Six independent logic inverters with open-collector outputs.
- Low-power Schottky TTL technology for reduced consumption.
- Input clamp diodes for transient protection.
- Compatible with TTL input levels.
- Enables wired-OR and active-high wired-AND functions.
- Fast switching speeds for high-performance applications.
- Compact DIP-14 package for easy integration.
Specifications:
| Parameter | Value |
|---|---|
| Supply Voltage: | 4.75-5.25VDC |
| High-Level Input Voltage: | 2V |
| Low-Level Input Voltage: | 0.8V |
| Low-Level Output Voltage: | 0.5V |
| Low-Level Output Current: | 8mA |
| High-Level Output Leakage Current: | 100μA |
| Input Current (High): | 20μA |
| Input Current (Low): | -0.4mA |
| Quiescent Current: | 1.6mA |
| Propagation Delay (High to Low): | 15ns |
| Propagation Delay (Low to High): | 50ns |
| Operating Temperature: | 0 to 70°C |

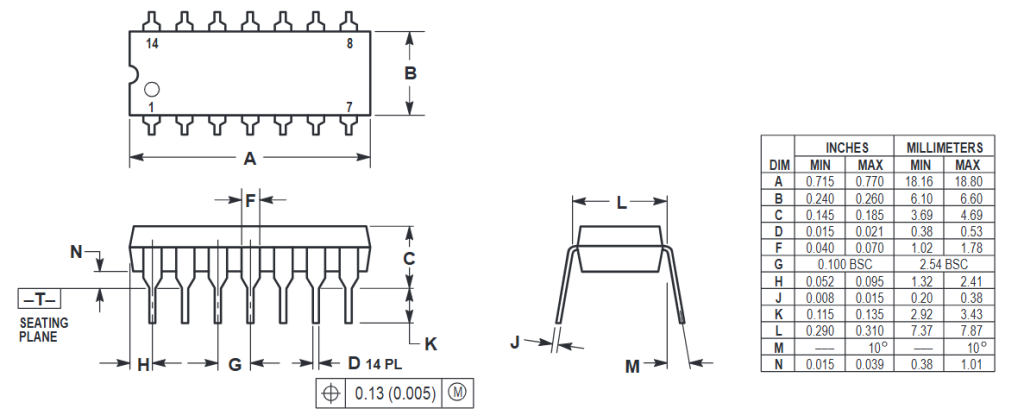

Pin Configuration:
Applications:
- Digital logic inversion in microcontrollers and processors.
- Implementing wired-OR gates in bus systems.
- Driving LEDs, relays, or small loads with current sinking.
- Level shifting and interfacing in TTL-based circuits.
- Educational projects and prototyping for logic design.
Package Include:
- 1x 7405 Hex Inverters with Open-Collector Output IC
