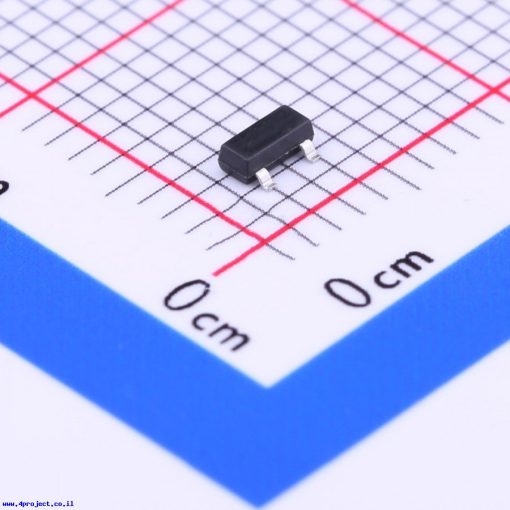

BC817-16 6A Bipolar Transistors 45V 0.3W 0.5A NPN SOT-23
The BC817-16 6A SMD NPN Bipolar Transistor is a general-purpose bipolar junction transistor designed for switching, signal amplification, driver, interface, and control applications. It provides a 45V collector-emitter voltage rating and a maximum collector current of 500mA, making it suitable for a wide range of low-power electronic circuits.
Features:
- NPN bipolar junction transistor.
- BC817-16 transistor type.
- 6A marking.
- 45V collector-emitter voltage rating.
- 500mA collector current.
- 300mW power dissipation.
Specifications:
| Parameter | Value |
|---|---|
| Component Type | NPN Bipolar Junction Transistor |
| Transistor Type | NPN |
| Model Number | BC817-16 6A |
| Collector-Emitter Voltage VCEO | 45V |
| Collector Current IC | 500mA |
| Power Dissipation PD | 300mW |
| DC Current Gain hFE | 100 |
| Transition Frequency fT | 100MHz |
| Emitter-Base Voltage VEBO | 5V |
| Collector-Emitter Saturation Voltage VCE(sat) | 700mV |
| Collector Cutoff Current | 100nA |

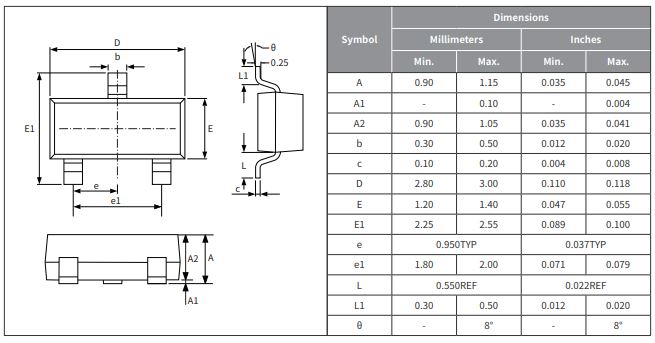

| Package | SOT-23 |
| Number of Transistors | 1 NPN |
| Configuration | Standalone |
| Mounting Type | Surface Mount |
| Operating Temperature | -55℃ to +150℃ |

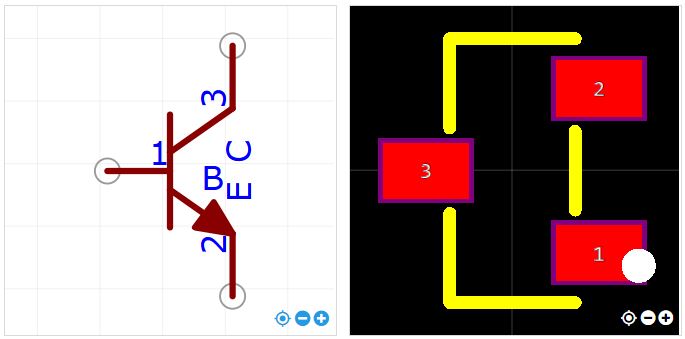

Foot Print:
Applications:
- General-purpose transistor switching.
- Low-power switching circuits.
- Signal amplification.
- Audio-frequency driver stages.
- Transistor driver circuits.
- Signal-processing circuits.
- Interface circuits.
- Control circuits.
- Embedded electronic systems.
- Consumer electronic equipment.
- LED driver circuits.
- Compact surface-mount PCB designs.
Package Include:
1x BC817-16 6A Bipolar Transistors 45V 0.3W 0.5A NPN SOT-23.
