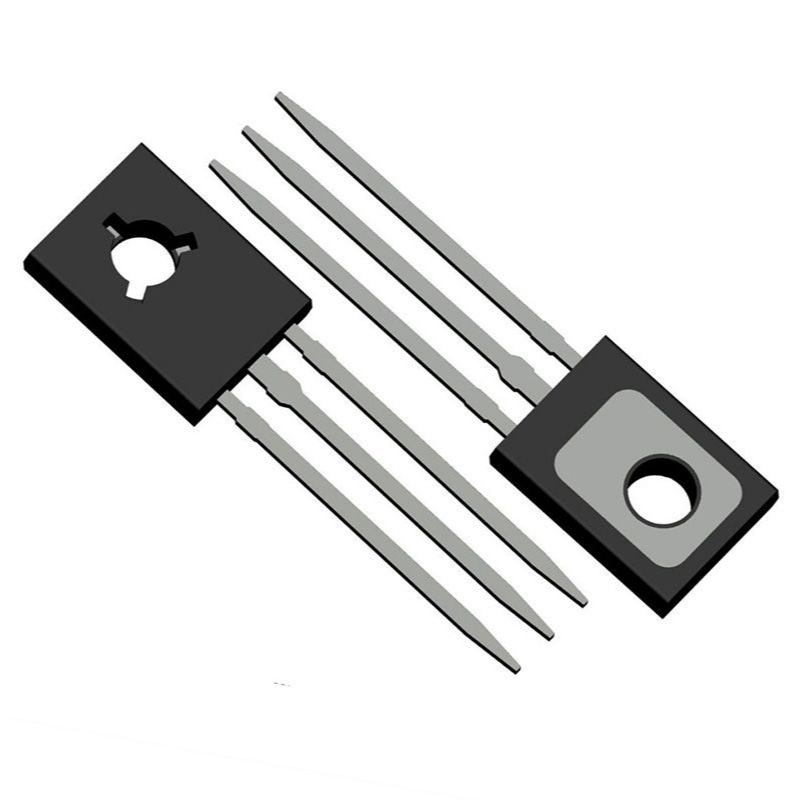

BD138 PNP Power Transistor 60V 1.5A TO-126
BD138 PNP Power Transistor, 60V 1.5A, TO-126, complementary to BD139, for power amplifier and switching applications.
3.00 EGP
In stockSKU 2283006272031
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
BD138 PNP Power Transistor 60V 1.5A TO-126
The BD138 is a robust PNP silicon epitaxial planar bipolar junction transistor (BJT) designed for medium-power linear and switching applications. It is housed in a standard TO-126 through-hole plastic package that supports reliable thermal performance and ease of handling in prototypes and production circuits. The device features a maximum collector-emitter voltage of 60 V, continuous collector current of 1.5 A, and moderate power dissipation, making it suitable for general amplifier, driver, and switching applications.
Features:
- PNP epitaxial silicon construction for high reliability.
- Medium power handling with 1.5A continuous collector current.
- Low collector-emitter saturation voltage for efficient switching.
- Wide DC current gain (hFE) range from 40 to 250.
Specifications:
| Parameter | Value |
|---|---|
| Collector-Base Voltage (VCBO) | -60V |
| Collector-Emitter Voltage (VCEO) | -60V |
| Emitter-Base Voltage (VEBO) | -5V |
| Collector Current (IC, Continuous) | -1.5A |
| Collector Current (IC, Pulsed) | -3A |
| Base Current (IB) | -0.5A |
| Power Dissipation (PC at TC=25°C) | 12.5W |
| Power Dissipation (PC at TA=25°C) | 1.25W |
| DC Current Gain (hFE at IC=-150mA, VCE=-2V) | 40 to 250 |
| Collector-Emitter Saturation Voltage (VCE(sat) at IC=-500mA, IB=-50mA) | -0.5V |
| Base-Emitter On Voltage (VBE(on) at IC=-500mA, VCE=-2V) | -1V |
| Operating Junction Temperature (TJ) | -55°C to 150°C |
| Package Type | TO-126 |
| Mounting Type | Through Hole |

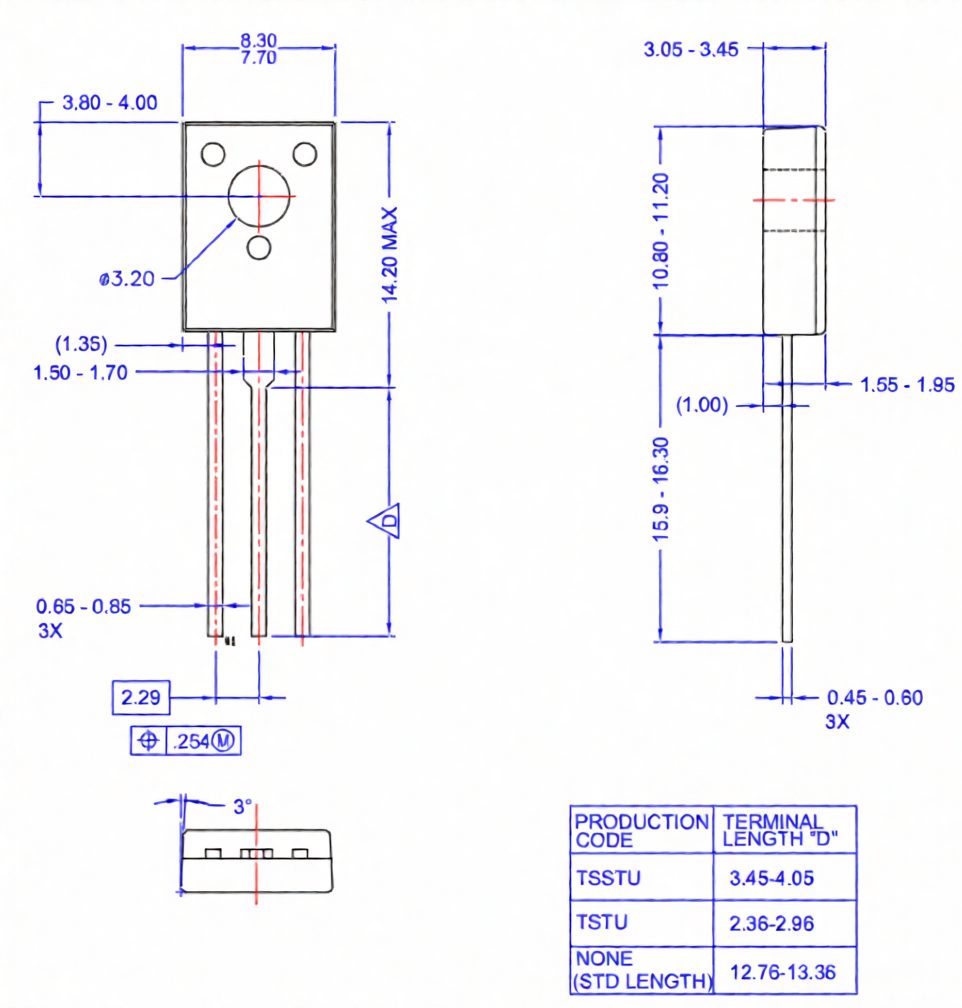

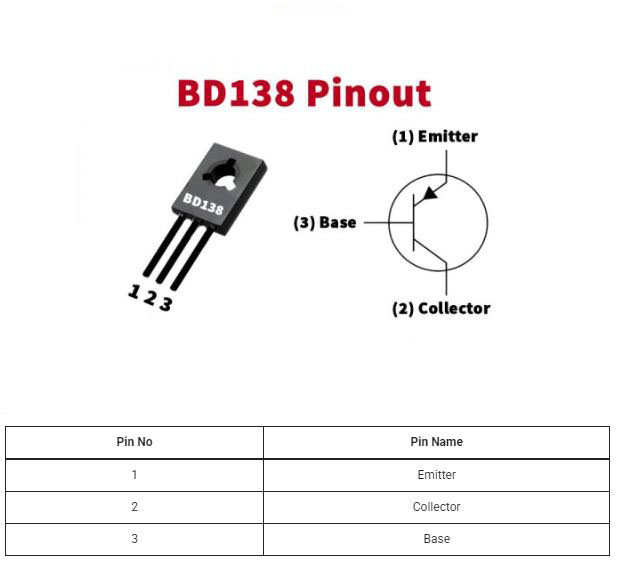

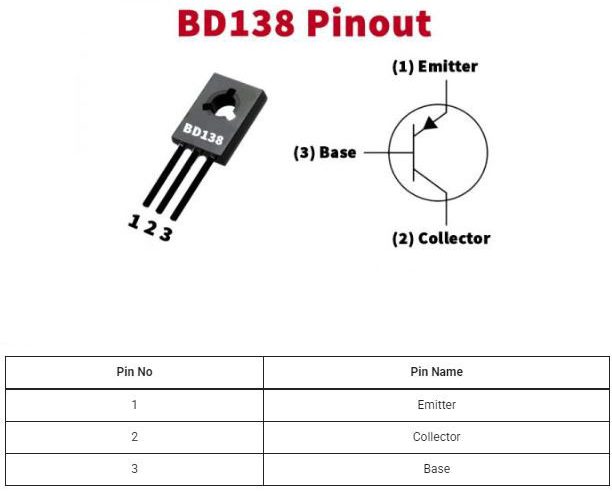

Pin Configuration:
Applications:
- Driver stages in hi-fi audio amplifiers.
- Medium power switching in power supplies.
- General-purpose amplification in consumer electronics.
- Complementary push-pull configurations with NPN transistors.
- Television circuit drivers and regulators.
- Linear voltage regulation in low-power systems.
Package Include:
- 1x BD138 PNP Power Transistor 60V 1.5A TO-126.
