BTA25-600 Triac 600V 25A Screw Mount RD-91
BTA25-600 Triac 600V 25A Screw Mount RD-91, designed for reliable switching in high-power applications, ideal for controlling AC motors and lighting.
55.00 EGP
In stockSKU 3496300094615
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
BTA25-600 Triac 600V 25A Screw Mount RD-91
The BTA25‑600B is a high‑performance triac designed for general purpose AC switching and phase control applications, providing robust 25 ampere continuous current capability and blocking voltages up to 600 volts. Its construction allows for a screw‑mounted tab (RD‑91 style) making it convenient for panel or heatsink mounting.
Features:
- High current handling with 25A RMS on-state current.
- Low thermal resistance junction to case of 0.9°C/W.
- High commutation capability in 3 or 4 quadrants for inductive loads.
- Insulated tab rated at 2500V RMS for enhanced safety.
Specifications:
| Product Attribute | Attribute Value |
| Product Category | Triacs |
| Series | BTA25 |
| Model | BTA25-600 |
| Package/Case | RD-91 |
| Mounting Style | Screw Mount |
| Non Repetitive On-State Current | 260 A |
| Rated Repetitive Off-State Voltage VDRM | 600 V |
| Off-State Leakage Current @ VDRM IDRM | 5 µA |
| On-State Voltage | 1.55 V |
| Holding Current Ih Max | 80 mA |
| Gate Trigger Voltage – Vgt | 1.5 V |
| Gate Trigger Current – Igt | 100 mA |
| Current Rating | 25 A |
| Operating Temperature | -40℃~+125℃ |

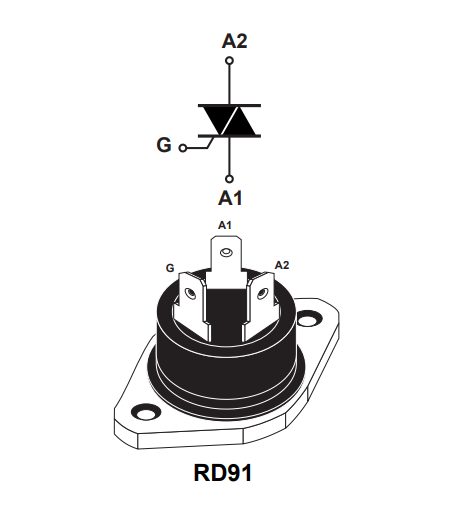

Pin Configuration:
Applications:
- On/off switching in static relays.
- Heating regulation in appliances.
- Induction motor starting circuits.
- Phase control in light dimmers.
- Speed control in AC motor drivers.
Datasheet:
