BYV44-200 Ultrafast Diode 200V 30A TO-220AB
The BYV44-200 is a dual ultrafast rectifier diode featuring a common cathode configuration, designed for high-efficiency power conversion applications. Built using epitaxial technology, it delivers fast switching performance and low forward voltage drop, making it ideal for minimizing power losses in high-frequency circuits.
This diode is especially suited for use in switch-mode power supplies (SMPS), DC-DC converters, and freewheeling applications. Its soft recovery characteristics reduce switching noise and electromagnetic interference (EMI), while its robust construction ensures reliable operation under high current and thermal stress conditions.
Features:
- Ultrafast switching speed.
- Low forward voltage drop.
- Soft recovery behavior.
- High current capability.
- Excellent thermal performance.
- Dual diode with common cathode configuration.
- Suitable for high-frequency operation.
Specifications:
| Parameter | Value |
|---|---|
| Reverse Voltage (VRRM) | 200V |
| Average Forward Current (IF(AV)) | 30A |
| Peak Forward Surge Current (IFSM) | up to 150A |
| Forward Voltage (VF) | ~1.25V max |
| Reverse Recovery Time (trr) | ≤ 60 ns |
| Reverse Current (IR) | Low (µA to mA range) |
| Operating Temperature | up to 150°C |

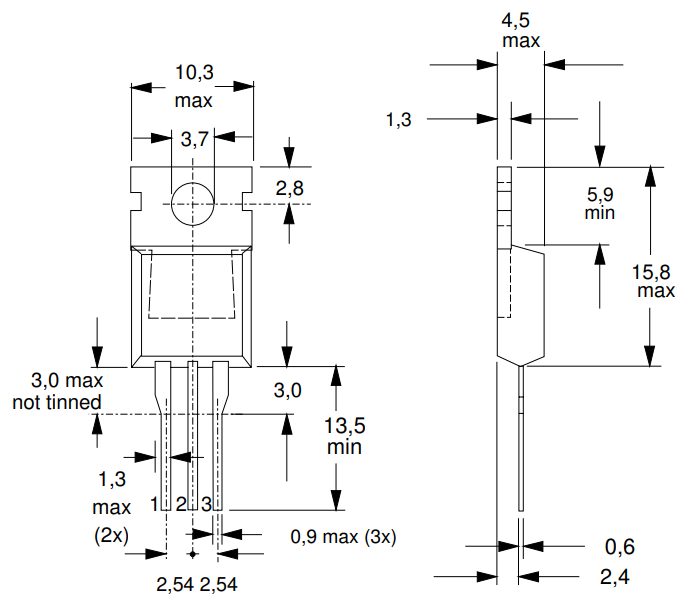

| Package Type | TO-220AB |
Pinout:
| Pin No. | Name | Description |
|---|---|---|
| 1 | Anode 1 | First diode anode |
| 2 | Cathode | Common cathode (also tab) |
| 3 | Anode 2 | Second diode anode |
Applications:
- Switch Mode Power Supplies (SMPS).
- DC-DC converters.
- Freewheeling diodes.
- Power inverters.
- Battery chargers.
- High-frequency rectification circuits.
Package Included:
- 1x BYV44-200 Ultrafast Diode 200V 30A TO-220AB.
