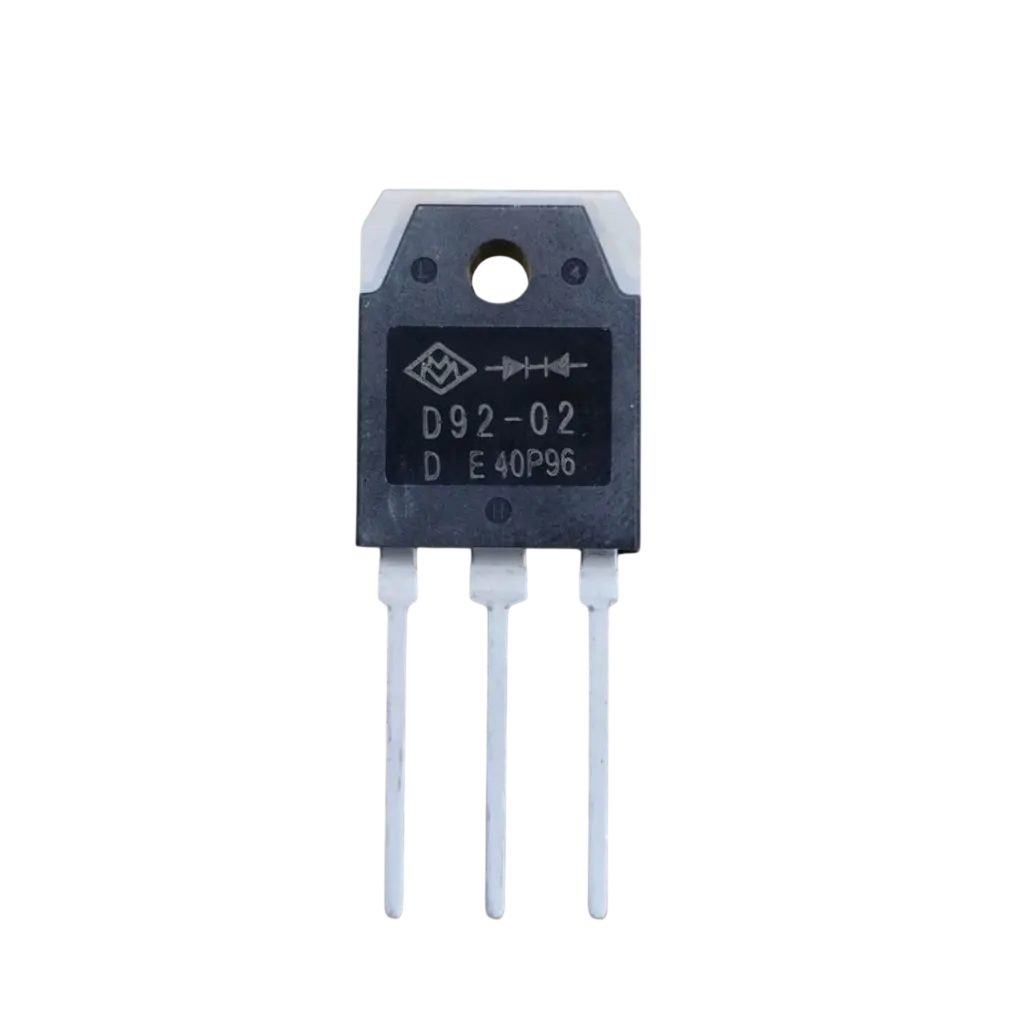

D92-02 Diode MOSFET Transistor 220V 20A TO-3P
The D92-02 is a high-efficiency ultrafast recovery rectifier diode module designed for demanding power electronics applications. It offers fast switching performance with low forward voltage drop and reduced recovery losses, making it ideal for high-frequency rectification and energy-efficient designs.
This device is widely used in industrial and power conversion systems such as inverters, welding machines, and UPS systems. Its soft recovery characteristics help minimize electromagnetic interference (EMI), while its robust construction ensures reliable performance under high current and temperature conditions.
Features:
- Ultrafast recovery performance.
- Soft recovery characteristics.
- Low forward voltage drop.
- High surge current capability.
- Low leakage current.
- High reliability in power applications.
- Suitable for high-frequency switching.
- Robust thermal performance.
Specifications:
| Parameter | Value |
|---|---|
| Maximum Reverse Voltage (VRRM) | 220V |
| Average Forward Current (IF(AV)) | 20A (per package) |
| Forward Current (per diode) | 10A |
| RMS Forward Current | 14A |
| Surge Forward Current (IFSM) | 100A |
| Forward Voltage (VF) | 0.8V – 0.95V |
| Reverse Recovery Time (trr) | 25 – 45 ns |
| Reverse Leakage Current (IR) | up to 1 mA |
| Power Dissipation (PD) | 83W |
| Operating Temperature Range | -40°C to +150°C |

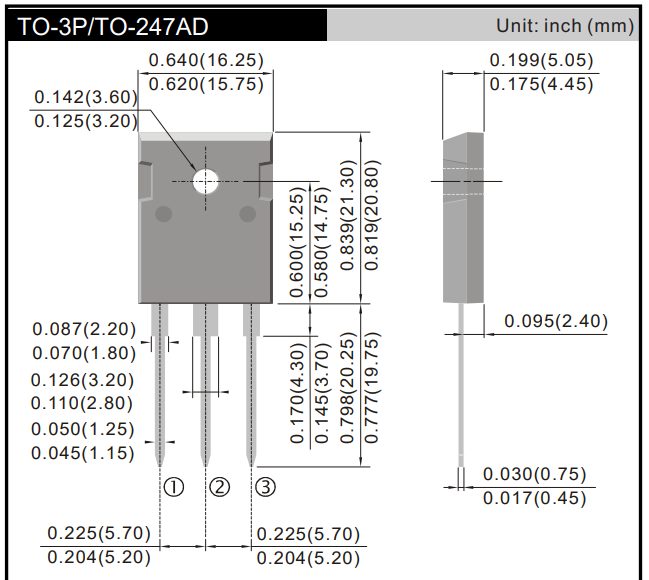

| Package Type | TO-3P / TO-247AD |
Pinout:
| Pin No. | Name | Description |
|---|---|---|
| 1 | Anode 1 | First diode anode |
| 2 | Cathode | Common cathode (connected to heatsink tab) |
| 3 | Anode 2 | Second diode anode |
Applications:
- Switch Mode Power Supplies (SMPS).
- Power inverters.
- Uninterruptible Power Supplies (UPS).
- Welding equipment.
- Power factor correction (PFC) circuits.
- Snubber and clamp circuits.
- DC-DC converters.
- Industrial power systems.
Package Included:
- 1x D92-02 Diode MOSFET Transistor 220V 20A TO-3P.
