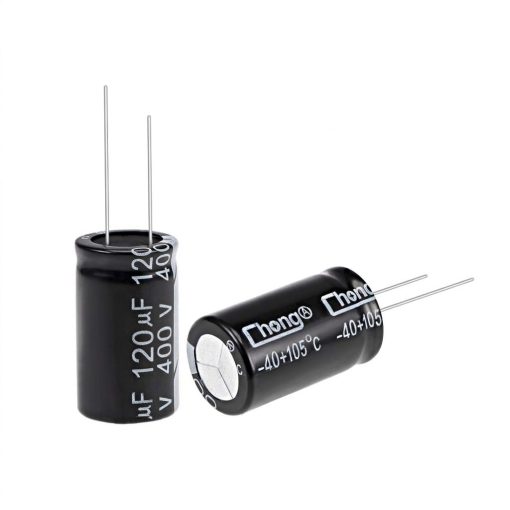

Chong Aluminum Electrolytic Capacitor 120uF 400V 18x32mm
The Chong Aluminum Electrolytic Capacitor 120µF 400V (18×32mm) is a high-voltage polarized capacitor designed for power supply applications requiring reliable filtering and voltage stabilization. With a capacitance of 120µF and a 400V DC rating, it is commonly found in switching power supplies (SMPS), LED drivers, industrial equipment, power inverters, UPS systems, and consumer electronics. It effectively smooths rectified DC voltage, reduces ripple, and improves the stability and efficiency of power circuits.
Built using aluminum electrolytic technology, this capacitor provides high capacitance in a compact radial package while maintaining dependable performance in demanding applications. The through-hole radial leads make it easy to install on printed circuit boards, making it suitable for equipment manufacturing, maintenance, and repair. It is an ideal replacement capacitor for aging or damaged high-voltage capacitors in power electronics.
Features
- High Temperature Resilience.
- High Voltage Stability.
- Compact Form Factor.
- Polarized Design.
Specifications
| Parameter | Specification |
| Capacitance | Capacitor 120uF |
| Rated Voltage | 400V DC |
| Tolerance | ±20% |
| Temperature Range | -40°C to +105°C |
| Dimensions (D x L) | 18mm x 32mm |
| Termination Style | Radial Lead (Through-Hole) |
| Lead Spacing (Pitch) | 8mm |
| Country of Origen | China |
| Weight | 13g |

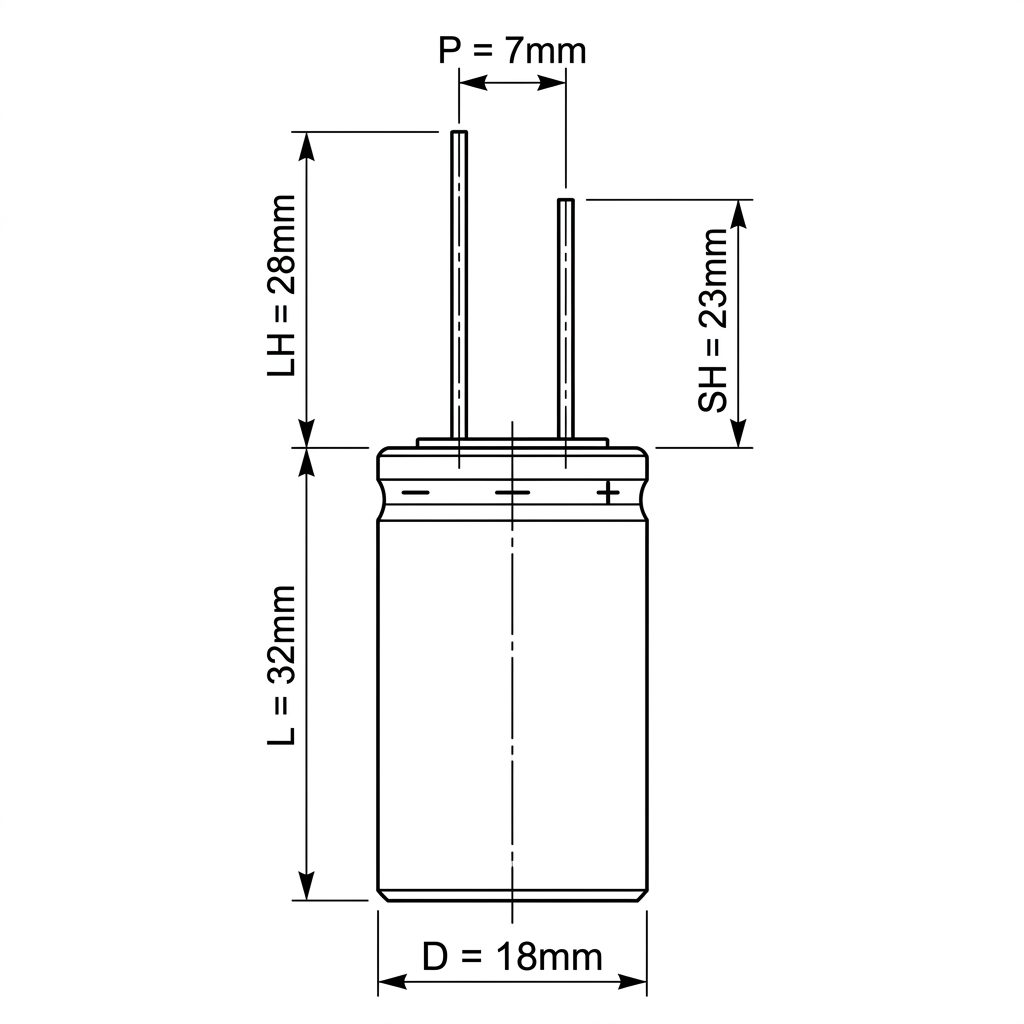

Mechanical Drawing:
Applications
- Switching Power Supplies (SMPS).
- LED Drivers.
- Audio Equipment.
- Industrial Electronics.
- Consumer Electronics.
Package Content
- 1 x Chong Aluminum Electrolytic Capacitor 120uF 400V 18x32mm.
