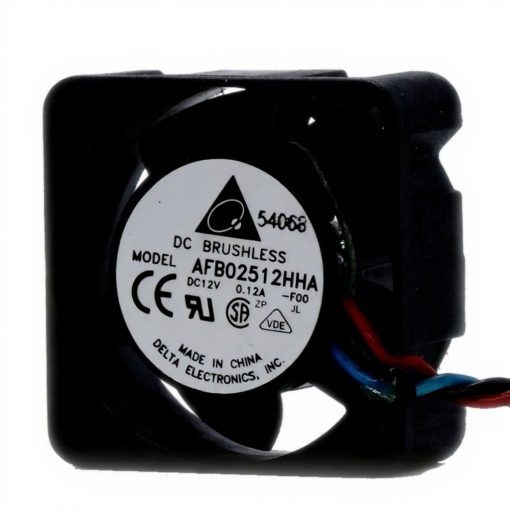

DELTA AFB02512HHA DC Fan 12V 0.12A 25x25x10mm (Used Like New)
AFB02512HHA is a Ultra-compact 12VDC cooling fan commonly used for spot cooling of small, heat-sensitive electronic components.
300.00 EGP
In stockSKU 3496300141951
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
DELTA AFB02512HHA DC Fan 12V 0.12A 25x25x10mm (Used Like New)
The Delta AFB02512HHA is a miniature DC brushless axial fan designed to deliver effective airflow in extremely space-constrained applications. Its 25×25×10 mm form factor makes it ideal for localized cooling on dense PCBs, embedded systems, and compact electronic modules where larger fans cannot fit.
This unit is USED – Like New, meaning it has been lightly used or tested and remains in excellent working and cosmetic condition. Manufactured by Delta Electronics, it offers reliable performance, stable operation, and long service life, making it a cost-effective solution for repairs, replacements, or prototyping.
Features:
- Ultra-compact miniature fan design.
- Brushless DC motor for long life.
- High airflow for its small size.
- Suitable for continuous operation.
- Ideal for dense and compact electronics.
Specifications:
| ITEM | DESCRIPTION |
|---|---|
| RATED VOLTAGE: | 12 VDC |
| OPERATION VOLTAGE: | 7.0 – 13.2 VDC |
| INPUT CURRENT: | 0.08 (MAX. 0.12) A SAFETY CURRENT ON LABEL : 0.12A |
| INPUT POWER: | 0.96 (MAX. 1.44) W |
| SPEED: | 13000±15% R.P.M. (REF.) |
| MAX. AIR FLOW: | 0.068 (MIN. 0.058) M³/MIN. |
| (AT ZERO STATIC PRESSURE): | 2.40 (MIN. 2.05) CFM |
| MAX. AIR PRESSURE: | 7.65 (MIN. 5.27) mmH₂O |
| (AT ZERO AIRFLOW): | 0.300 (MIN. 0.207) inchH₂O |
| ACOUSTICAL NOISE (AVG): | 28.0 (MAX. 34.0) dB-A |
| INSULATION TYPE: | UL: CLASS A |
| INSULATION STRENGTH: | 10 MEG OHM MIN. AT 500 VDC (BETWEEN FRAME AND (+) TERMINAL) |
| DIELECTRIC STRENGTH: | 5 mA MAX. AT 500 VAC 50/60 Hz ONE MINUTE, (BETWEEN FRAME AND (+) TERMINAL) |
| EXTERNAL COVER: | OPEN TYPE |
| LIFE EXPECTANCE: | 30,000 HOURS CONTINUOUS OPERATION AT 40 °C WITH 15 ~ 65 %RH. |
| ROTATION: | CLOCKWISE VIEW FROM NAME PLATE SIDE |
| LEAD WIRE: | UL 1061 –F– AWG #26 BLACK WIRE NEGATIVE(–) RED WIRE POSITIVE(+) |
Applications:
- PCB and embedded system cooling.
- Small power modules.
- Networking and communication devices.
- Industrial electronics.
- Replacement fan for compact equipment.
Packages:
- 1x DELTA AFB02512HHA DC Fan 12V 0.12A 25x25x10mm (Used Like New).
Documents:
| Weight | 10 g |
|---|---|
| Dimensions | 25 × 25 × 10 mm |
