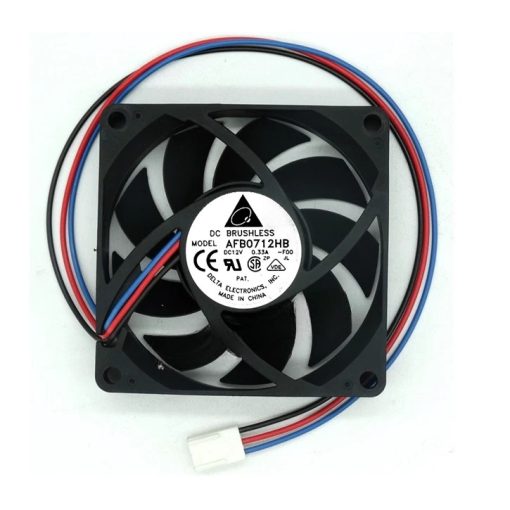

Delta AFB0712HB DC Fan 12V 0.33A 70x70xx20mm (USED LIKE NEW)
The Delta AFB0712HB is a premium DC brushless axial cooling fan engineered for high-reliability applications in industrial systems, servers, and embedded electronics. Manufactured by Delta Electronics, a leading provider of thermal management solutions, this fan delivers stable airflow, durability, and long operational life.
Features:
- High airflow performance suitable for industrial and server cooling.
- Operates at 12VDC with current up to 0.33A for strong cooling capability.
- 3-wire, 3-pin connector with tachometer output for speed monitoring.
- Ball bearing design ensures long lifespan and reliability.
- Compact 70x70x15mm size for space-constrained applications.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Delta Electronics |
| Model | AFB0712HB |
| Fan Type | DC Brushless Axial Fan |
| Rated Voltage | 12VDC |
| Operating Voltage | 4.0–13.8VDC |
| Rated Current | 0.18A |
| Max Current | 0.33A |
| Power Consumption | 2.16W |
| Dimensions | 70x70x15mm |
| Speed | 3800RPM |
| Airflow | 33.2CFM |
| Noise Level | 34.5dBA |
| Bearing Type | Ball Bearing |
| Connector Type | 3-Pin |
| Wire Configuration | 3 Wires |
| Feature | Tachometer (Speed Sensor) |
| Operating Temperature | -10°C~+70°C |
Applications:
- Server and data center cooling systems.
- Industrial control equipment.
- Power supplies and converters.
- Networking and telecom devices.
- Embedded systems and compact enclosures.
- DIY electronics and repair projects.
Package Include:
1x Delta AFB0712-HB DC Fan 12V 0.33A 70x70xx20mm (USED LIKE NEW).
