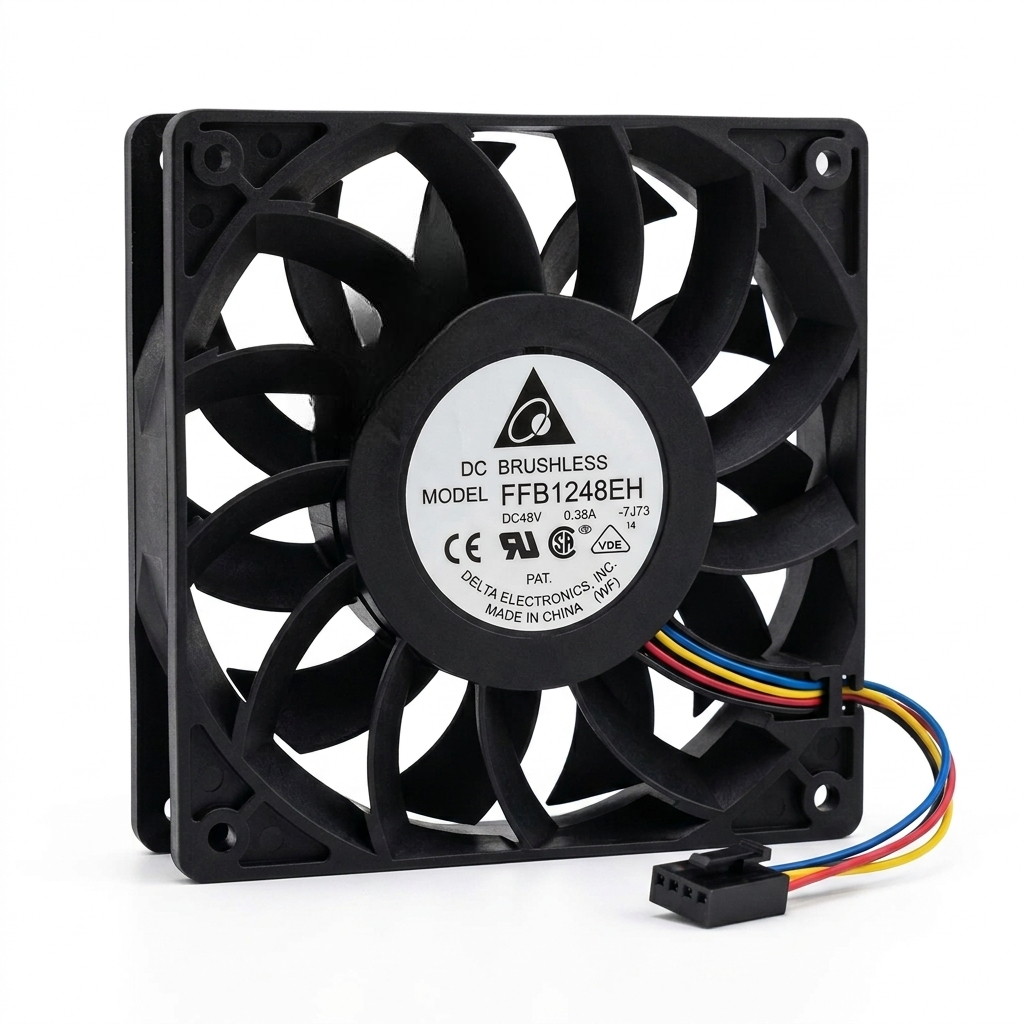

DELTA DC Fan FFB1248EH 48V 0.38A 120x120x25mm (USED LIKE NEW)
The Delta FFB1248EH DC Fan is a high-performance industrial-grade cooling solution designed for demanding thermal management applications. Manufactured by Delta Electronics, this fan is built for reliability, high airflow, and continuous operation in server systems, power equipment, and industrial electronics.
Features:
- High-performance 48V DC industrial cooling fan.
- 4-wire configuration with PWM speed control.
- High airflow capacity (~150CFM).
- Brushless motor with dual ball bearings.
- Long operational lifespan (~60,000–70,000 hours).
- Standard 120x120x25mm form factor.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Delta Electronics |
| Model Number | FFB1248EH‑F00 |
| Component Description | DC Axial Cooling Fan |
| Condition | Used Like New |
| Frame Size | 120mm x 120mm x 25mm |
| Rated Voltage | 48V DC |
| Voltage Range | 36.0V to 60.0V DC |
| Rated Current | 0.38A(MAX) |
| Power Consumption | 18W |
| Speed | 4000 RPM |
| Airflow | 150.33 CFM (4.26 m³/min) |
| Static Pressure | 12.43 mmH₂O (0.489 in H₂O) |
| Noise Level | 56.4 dBA |
| Bearing Type | Dual Ball |
| Connector Type | 4‑wire leads (tachometer support) |
| Operating Temperature | -20°C to +75°C |
| Service Life | 60,000 hours at 25°C |
| Weight | 205g |
Applications:
- Cooling for server power supplies and industrial inverters.
- Thermal management in high‑power electronic equipment.
- Ventilation for control cabinets and telecom enclosures.
- Replacement fan for 3D printers, CNC machines, and laser cutters.
- DIY electronics projects requiring high‑airflow active cooling.
Package Include:
1x DELTA DC Fan FFB1248-EH 48V 0.38A 120x120x25mm (USED LIKE NEW).
