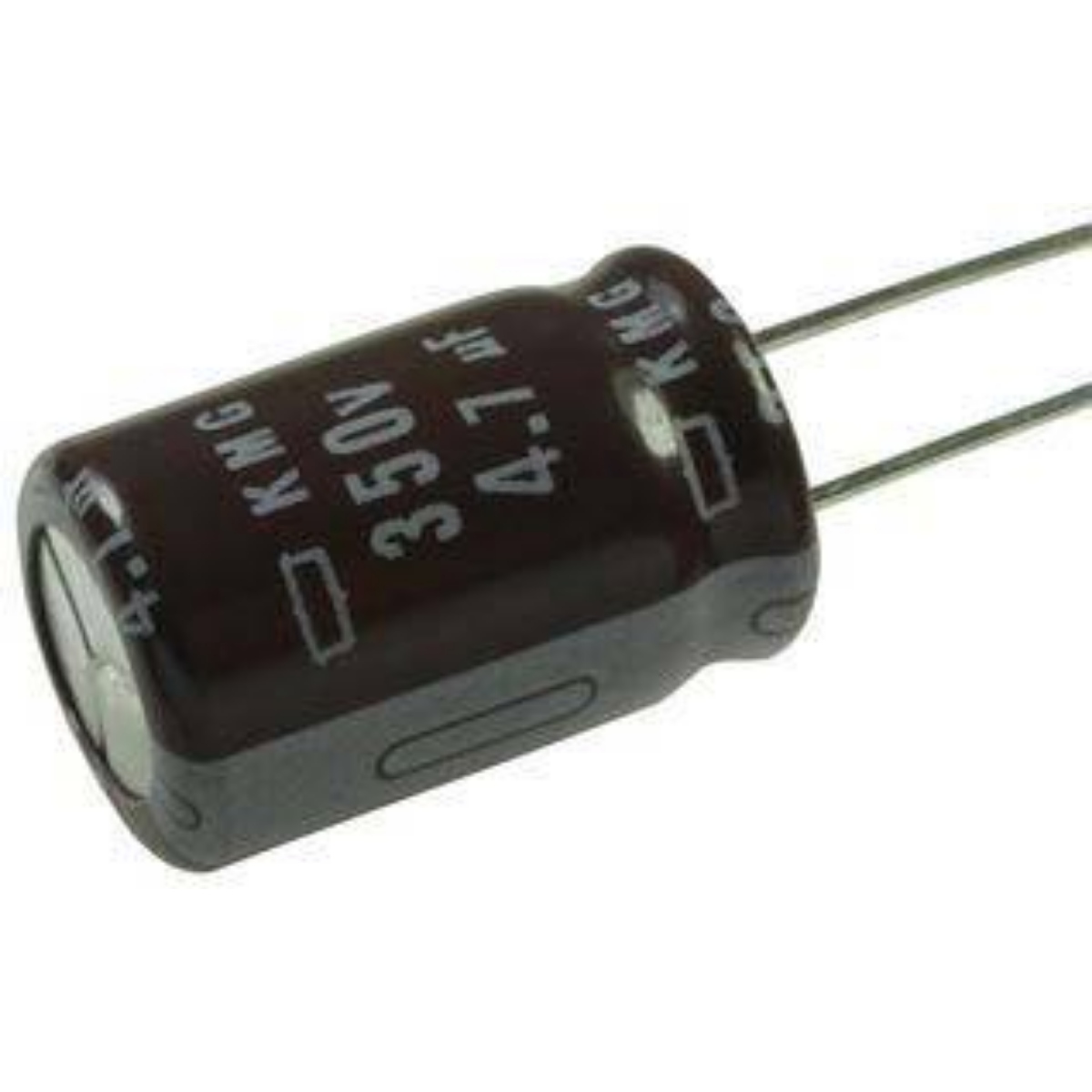

Elite Aluminum Electrolytic Capacitor 4.7uF 350V 10×18.5mm Made in Taiwan
The Elite Aluminum Electrolytic Capacitor 4.7uF 350V 10×18.5mm is a polarized through-hole capacitor designed for high-voltage electronic applications requiring stable capacitance and reliable performance. Manufactured in Taiwan, this capacitor features aluminum electrolytic construction that provides efficient filtering and smoothing in compact electronic circuits. Its radial lead design allows easy PCB installation in consumer, industrial, and power electronics systems.
This capacitor is widely used in switching power supplies, LED drivers, audio amplifiers, industrial controllers, adapters, and high-voltage filtering circuits. The 350V voltage rating makes it suitable for AC-DC power conversion stages and high-voltage DC filtering applications. Its compact 10×18.5mm package provides dependable performance while maintaining space-efficient PCB layouts.
Features:
- Aluminum electrolytic capacitor design.
- Polarized through-hole component.
- High-voltage operation support.
- Compact radial package.
- Stable electrical performance.
- Reliable filtering capability.
- Suitable for power supply circuits.
- Good capacitance stability.
- Low leakage current.
- Easy PCB mounting.
- Durable aluminum construction.
Specifications:
| Parameter | Value |
|---|---|
| Product Name | Elite Aluminum Electrolytic Capacitor |
| Capacitance | 4.7uF |
| Rated Voltage | 350V DC |
| Capacitor Type | Aluminum Electrolytic |
| Polarity | Polarized |
| Mounting Type | Through Hole |
| Package Size | 10 × 18.5mm |
| Tolerance | ±20% |
| Lead Type | Radial |
| Operating Temperature | Up to 105°C |
| Country of Origin | Taiwan |

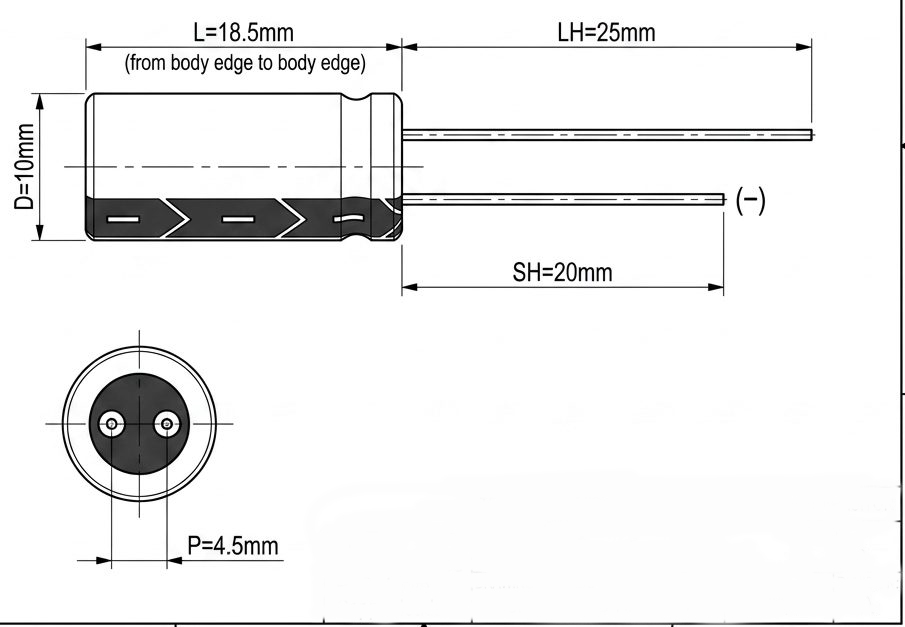

Mechanical Drawing:
Applications:
- Switching power supplies.
- High-voltage filtering circuits.
- AC-DC converter circuits.
- LED driver power supplies.
- Audio amplifier systems.
- Industrial electronic equipment.
- Power adapters.
- Consumer electronics.
- Voltage smoothing applications.
- Embedded electronic projects.
Package Included:
- 1x Elite Aluminum Electrolytic Capacitor 4.7uF 350V 10×18.5mm Made in Taiwan.
