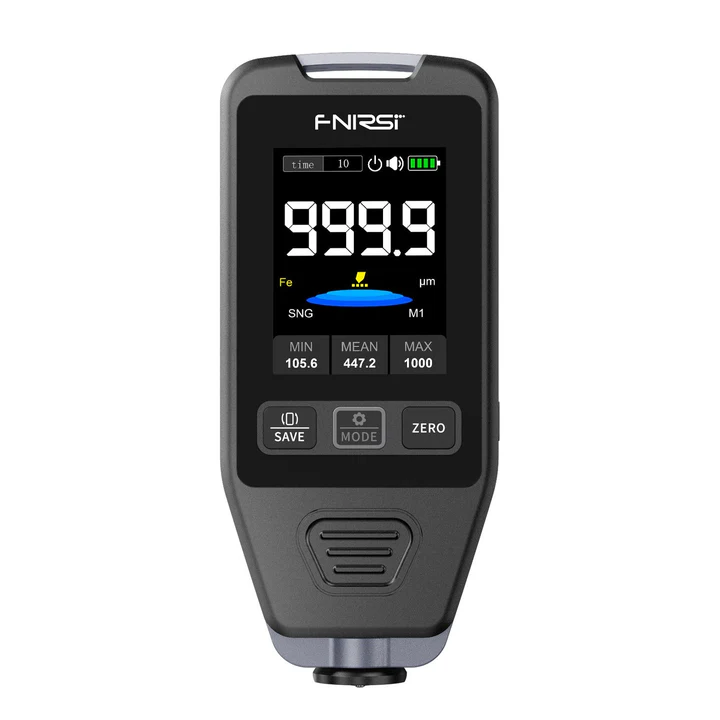

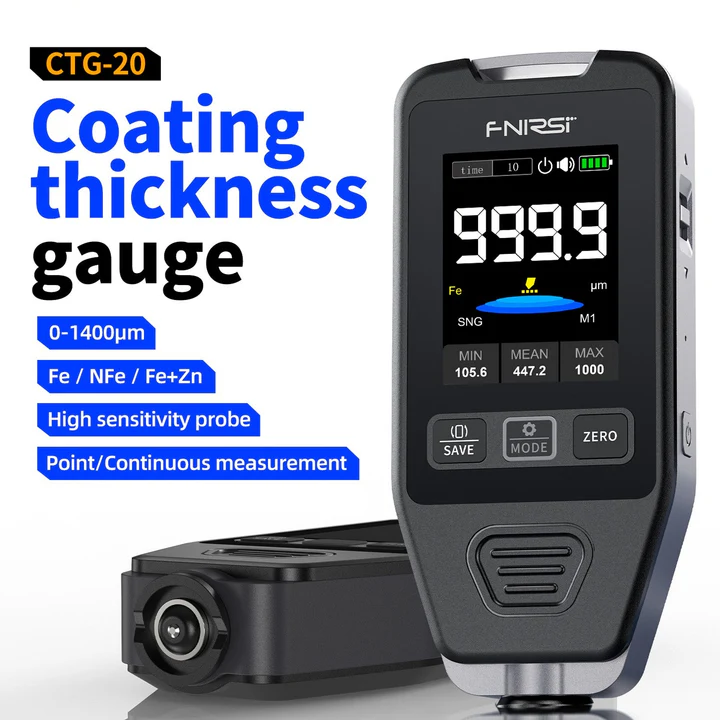

FNIRSI® CTG-20 Car Paint Coating Thickness Gauge

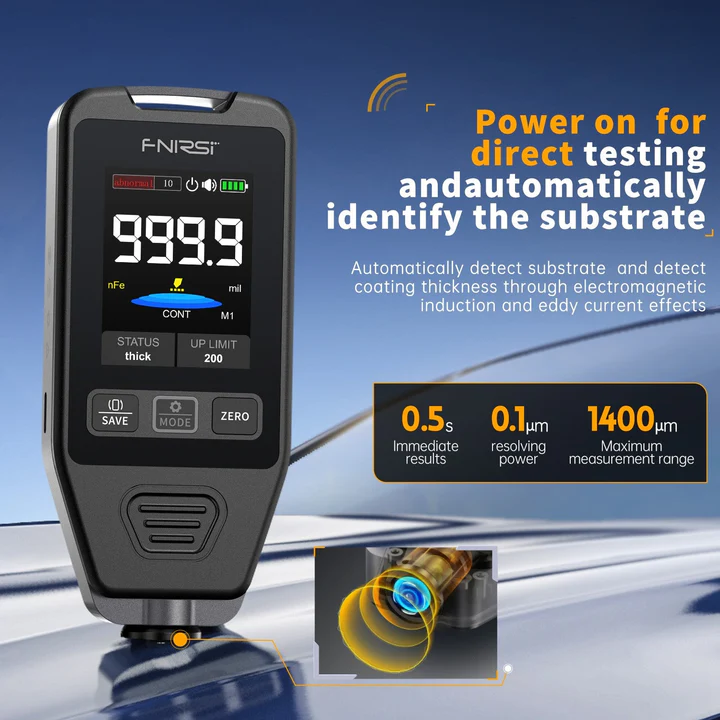

CTG-20 is a coating thickness gauge used to measure the thickness of electroplated coatings or coatings on metal surfaces. It has the ability to measure the thickness of non magnetic coating (such as paint) on magnetic materials such as steel/iron, as well as the thickness of coating (such as paint) on non magnetic materials such as aluminum. Built in precision probe, lithium battery charging. Automatically detect substrate properties and detect coating thickness through electromagnetic induction and eddy current effects. This instrument can non-destructive measure the thickness of the coating, with fast speed and high accuracy. Widely used in manufacturing, chemical industry, automotive and other testing fields.

Features:

• Non-destructive coating thickness measurement.
• Automatic substrate material recognition.
• Electromagnetic induction and eddy current detection.
• Measures paint and coating thickness on steel and aluminum.

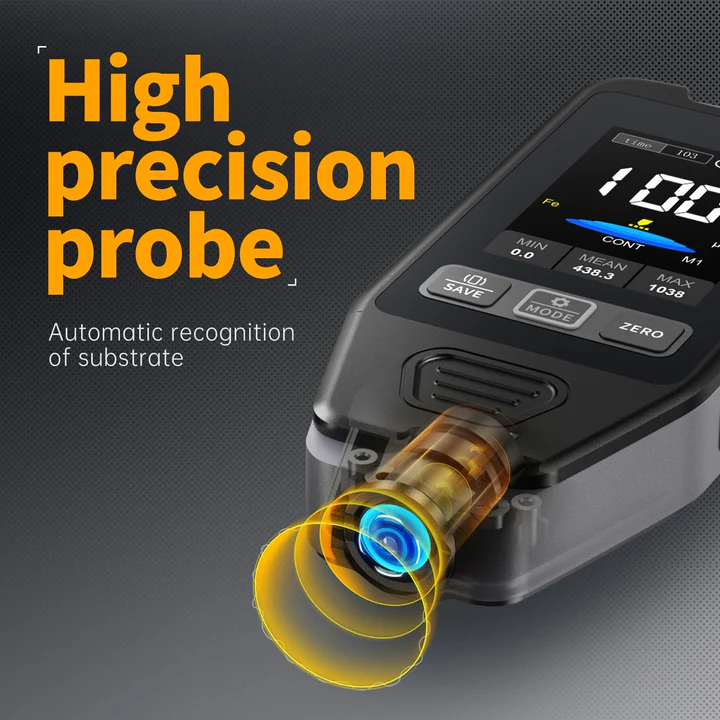

• Precision integrated probe.
• Compact handheld design.
• Rechargeable lithium battery.
• High measurement accuracy.
• Fast response measurement.
• Data storage support.

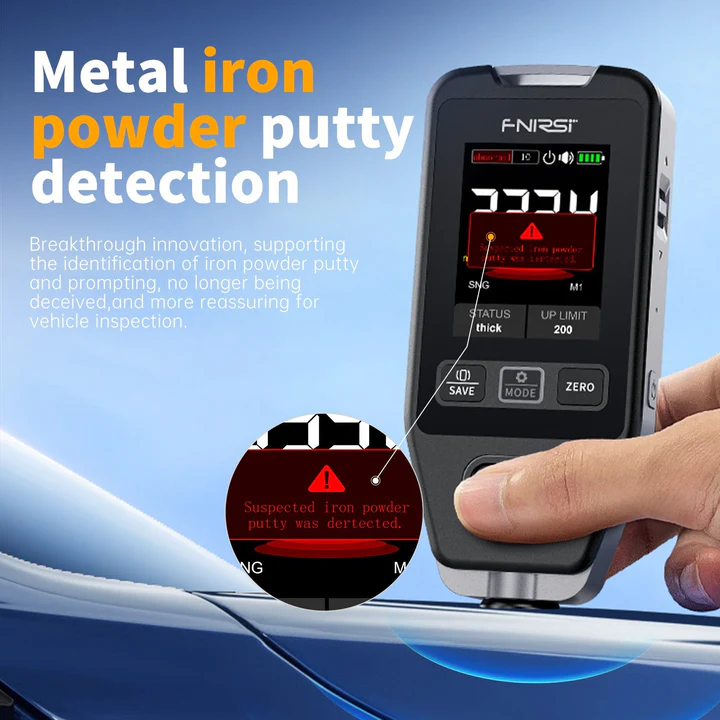

• Putty detection support.
• Rotatable display interface.
• Automatic power-off function.
• Multi-point calibration support.
• Zero-point calibration function.
• Lightweight portable construction.
• Suitable for automotive inspection.
• Supports μm and mil units.

Specifications:

Parameter	Specification
Brand	FNIRSI
Model	CTG-20
Measuring Range	0–1400 μm
Accuracy	±3% + 2 μm
Resolution Ratio	0.1 μm
Calibration	Zero point calibration Multi‑point calibration
Unit	μm / mil
Mini Convex Curvature Radius	5 mm
Mini Concave Curvature Radius	25 mm
Mini Measurement Area Diameter	20 mm
Work Environment	No strong magnetic field
Work Temperature	-10 ℃ ~ +50 ℃
Humidity	20% – 90% RH

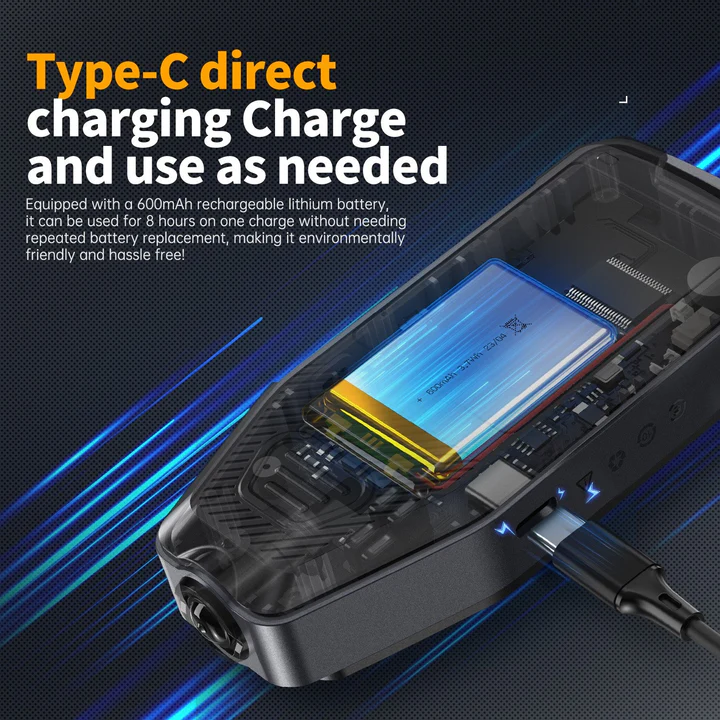

Battery	600 mAh Lithium battery
Size	115 × 48 × 18 mm
Weight	About 83 g
Data Storage	Support
Putty Powder Test	Support
Rotatable Screen	Support
Auto Power Off	Support

Applications:

• Used car inspection.
• Automotive paint thickness testing.
• Vehicle body repair inspection.
• Paint coating analysis.
• Industrial coating measurement.
• Manufacturing quality control.
• Car detailing inspection.
• Electroplating thickness testing.
• Surface finishing inspection.
• Workshop maintenance testing.
• Corrosion protection analysis.
• Chemical coating inspection.

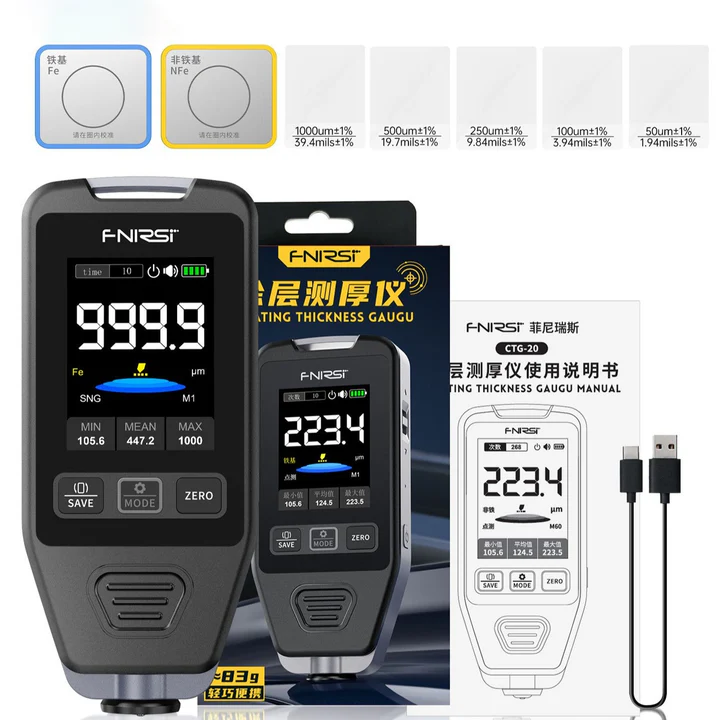

Package Included:

• FNIRSI CTG-20 Thickness Gauge.
• Calibration Kit.
• USB Charging Cable.
• User Manual.
• Packaging Box.

Documents:

• User Manual.
