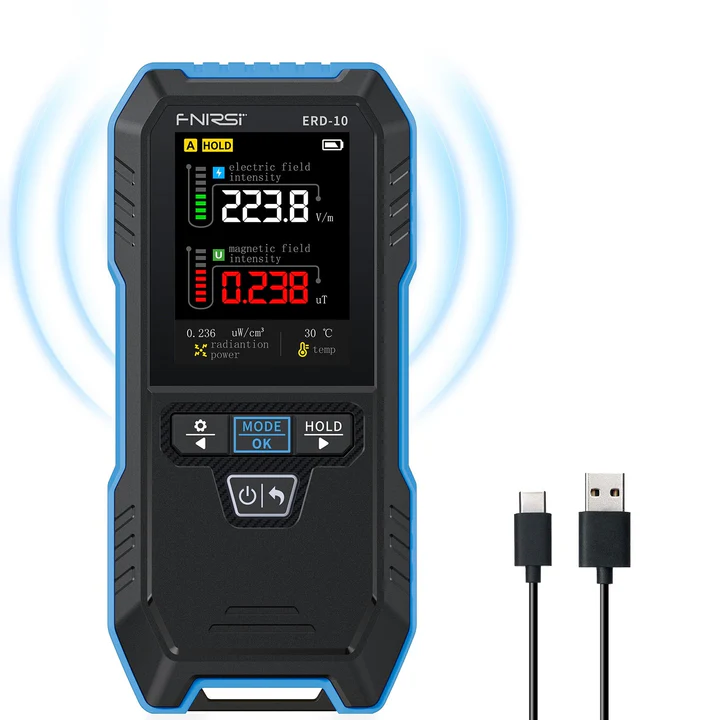

FNIRSI® ERD-10 4-IN-1 Electromagnetic Radiation Detector

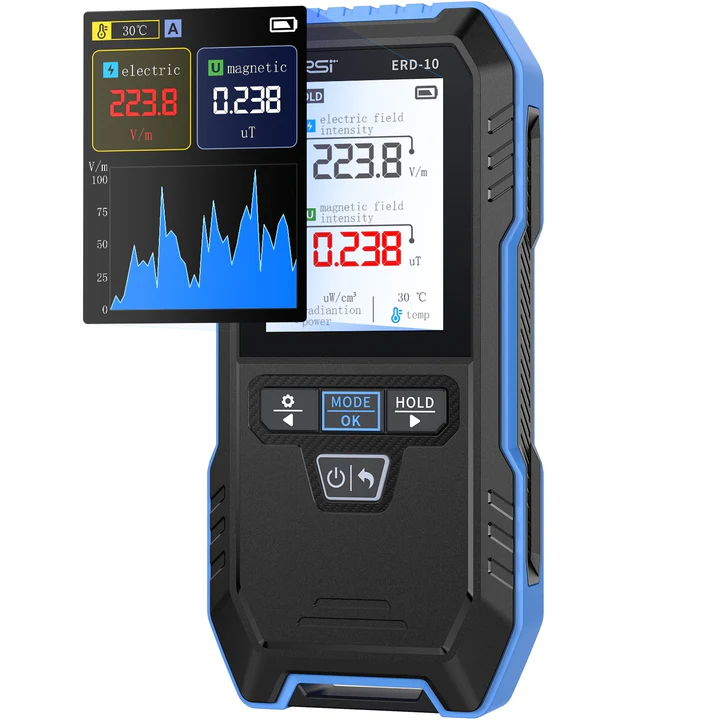

The FNIRSI ERD-10 is an electromagnetic radiation detector, a professional instrument used for measuring electromagnetic radiation. It is suitable for various application scenarios, such as homes, offices, vehicles, and outdoor environments. It features a 2.4-inch high-definition color screen and supports monitoring of electric field strength, magnetic field strength, radiation power, and environmental temperature.

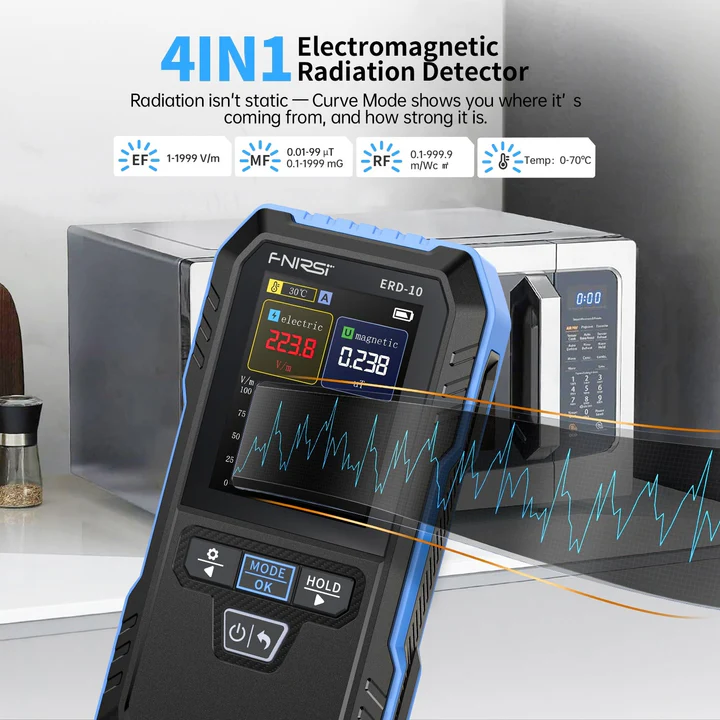

The FNIRSI ERD-10 4-IN-1 Electromagnetic Radiation Detector is a multifunction environmental measurement instrument developed for monitoring electromagnetic radiation generated by electronic devices, power systems, wireless equipment, and household appliances. It combines electric field detection, magnetic field detection, radio frequency radiation monitoring, and temperature measurement into a single handheld device, making it a practical tool for technicians, engineers, safety inspectors, and everyday users.
Features:
- 4-in-1 multifunction measurement capability.
- Electric field detection.
- Magnetic field detection.
- Radio frequency radiation monitoring.
- Ambient temperature measurement.
- Portable handheld design.
- Real-time data display.
- Easy-to-read digital screen.
- User-friendly operation.
- Suitable for home and industrial environments.
- Electromagnetic environment assessment.
- Compact and lightweight construction.
- Fast response measurement.
- Battery-powered operation.
- Wide range of practical applications.
Specifications:
| Parameter | Value |
|---|---|
| Basic Parameters | |
| Model | ERD‑10 |
| Screen Material | 2.4 inches |
| Backlight | Brightness adjustable |
| Charging Power | TYPE‑C (5 V / 1 A) |

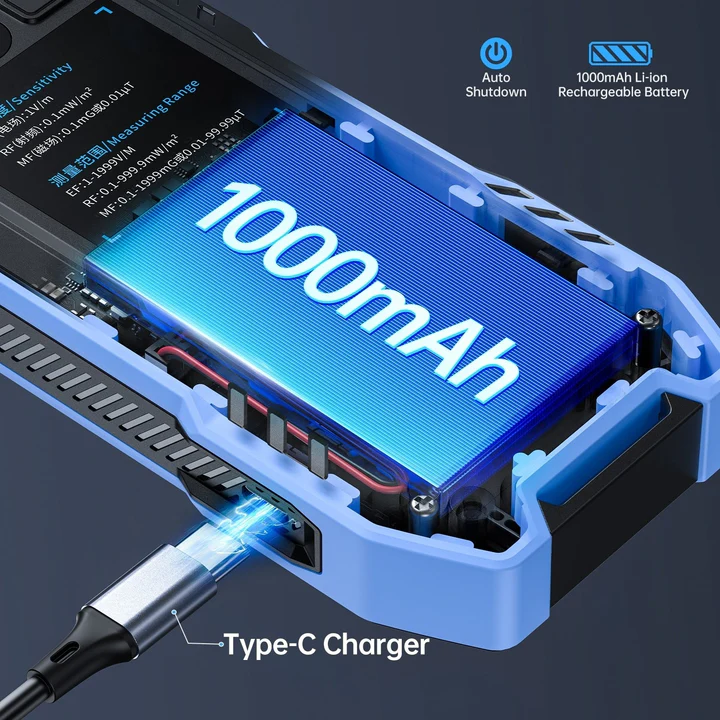

| Battery | 1000 mAh |
| Languages | Chinese, English |
| Product Size | ≈143 × 68 × 29 mm |
| Product Weight | ≈143 g |
| Auto Shutdown | off / 5 min / 10 min / 15 min |
| Magnetic Field | |
| Range | 0.01 μT – 99.99 μT |
| Accuracy | 0.01 μT |

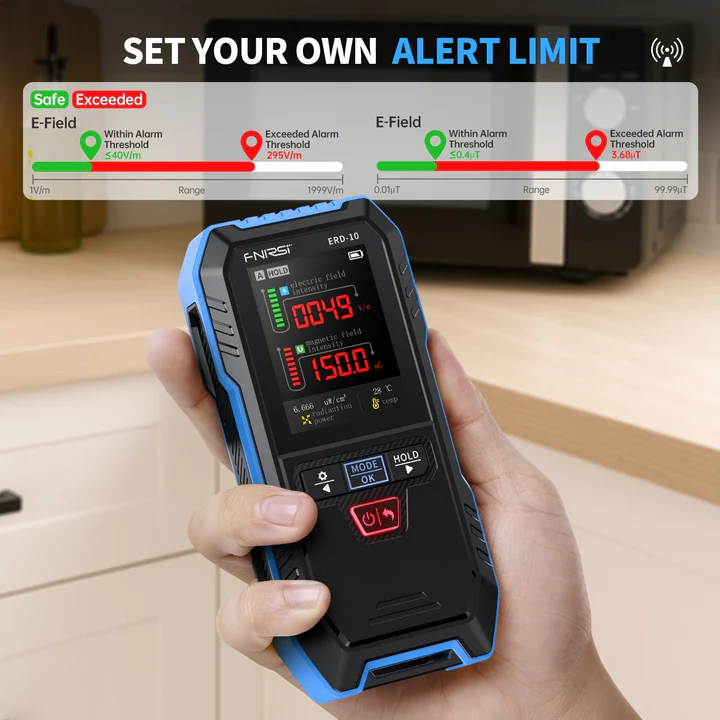

| Alarm Threshold | 0.4 μT |
| Radiofrequency Power Range of Radiation | 0.2 – 1000 mW/cm² |
| Electric Field | |
| Range | 1 V/m – 1999 V/m |
| Accuracy | 1 V/m |
| Alarm Threshold | 40 V/m |
| Radiofrequency Power Range of Radiation | 0.2 – 1000 mW/cm² |
Applications:
- Electromagnetic radiation monitoring.
- Home electrical safety inspections.
- Wireless device radiation assessment.
- Office environment testing.
- Power distribution system evaluation.
- Industrial equipment inspection.
- Educational laboratories.
- Electronic repair workshops.
- Environmental measurements.
- Electromagnetic compatibility investigations.
- RF signal exposure monitoring.
- Smart home device assessment.
Package Includes:
Package Includes:- FNIRSI ERD-10 Device.
- Packing Box.
- User Manual.
- Type-C Cable.
