FNIRSI® GD-02 Portable Combustible Gas Detector Color Screen Methane Propane Isobutane Monitor

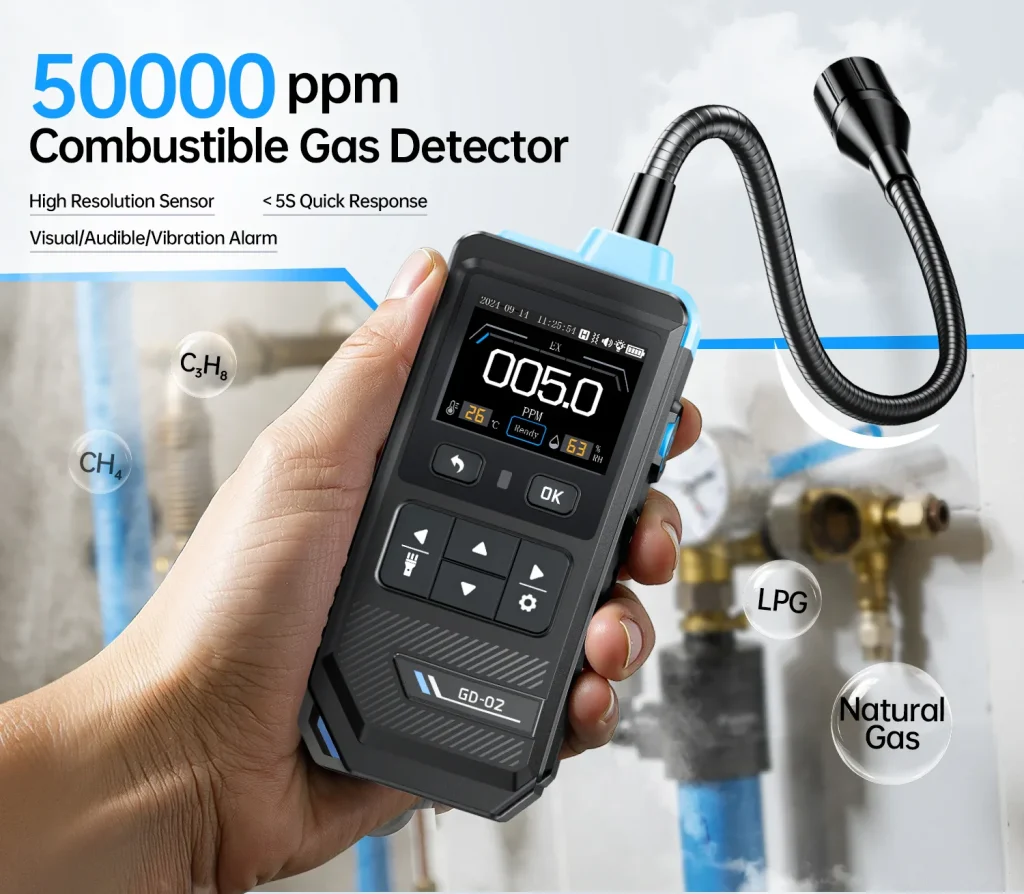

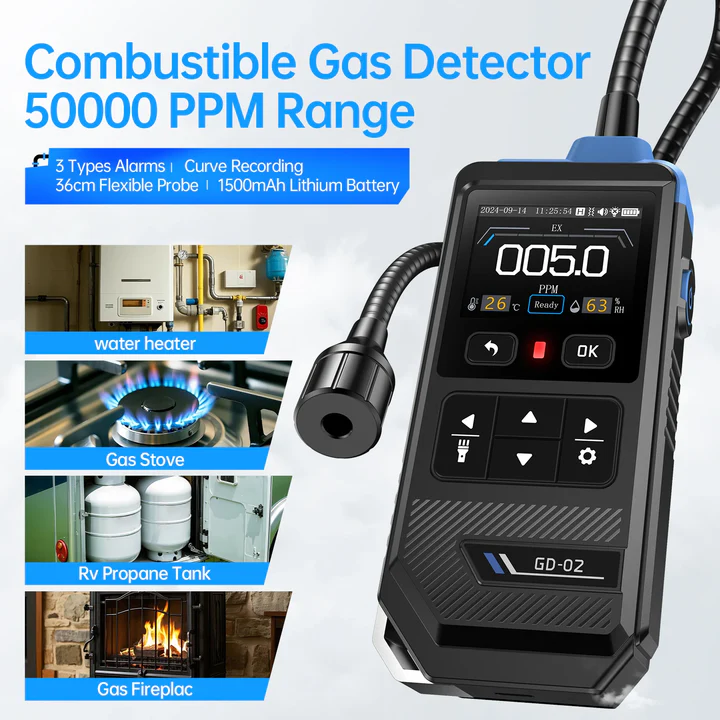

The FNIRSI GD-02 is a portable combustible gas detector designed for fast and accurate gas leak detection in residential, commercial, and industrial applications. It supports the detection of methane, propane, and isobutane gases, making it suitable for gas pipeline inspection, kitchen safety monitoring, RV maintenance, HVAC servicing, and industrial safety checks. The device features a 2.0-inch full-color TFT display that shows real-time gas concentration along with environmental temperature and humidity information.
The detector includes a 36cm flexible probe for reaching confined or hard-to-access areas and uses a triple alarm system with sound, vibration, and visual alerts for improved safety. It also supports trend curve analysis, alarm record storage, adjustable brightness, and Type-C firmware updates. The compact rechargeable design and fast response time make the GD-02 suitable for field technicians, maintenance engineers, safety inspectors, and DIY users who require portable combustible gas monitoring.
Features:
- 2.0″ Full-Color TFT Display – Real-time display of gas concentration and ambient temperature/humidity with 0.5s refresh rate.
- Curve Analysis & Data Recording – Supports trend curve analysis and record tracking for more intuitive monitoring.

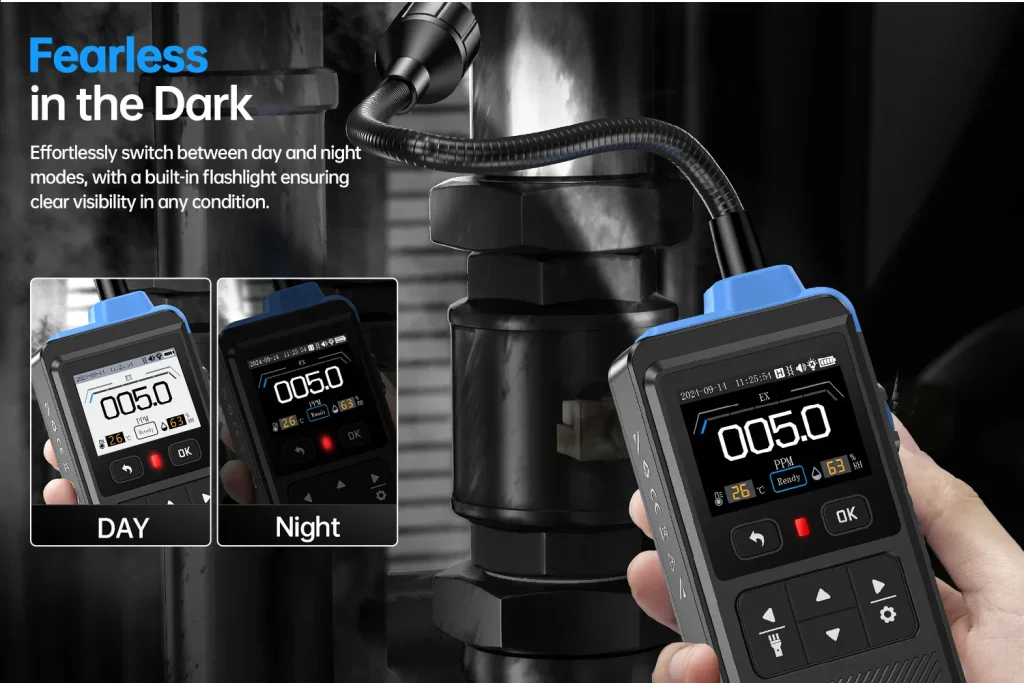

- Adjustable Brightness & Dual UI Themes – Switch between light/dark modes for day and night environments.
- Multi-Gas Detection – Accurately detects methane, propane, and isobutane.
- Wide Detection Range – Methane detection range of 0–50000ppm with 1ppm / 1% LEL resolution.

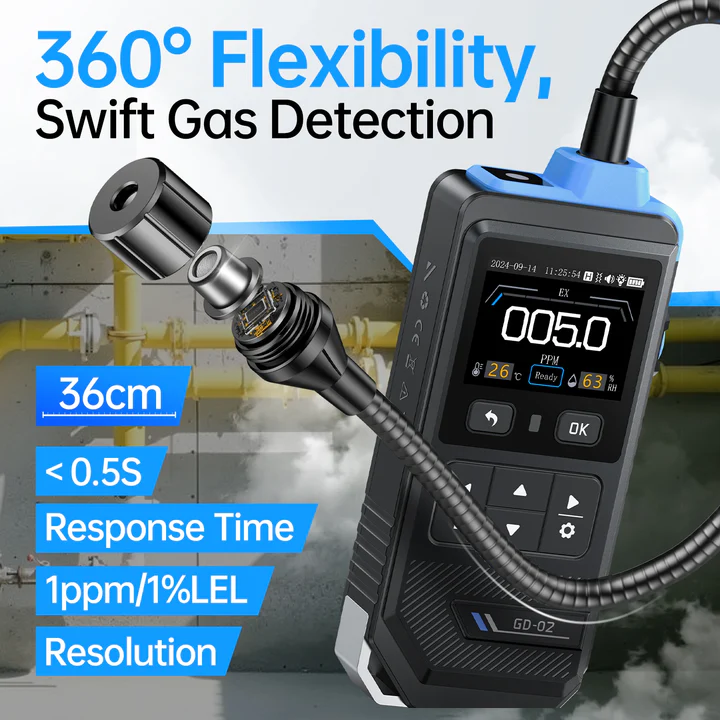

- 36cm Flexible Probe – Easily detects in complex, narrow, or hard-to-reach spaces.

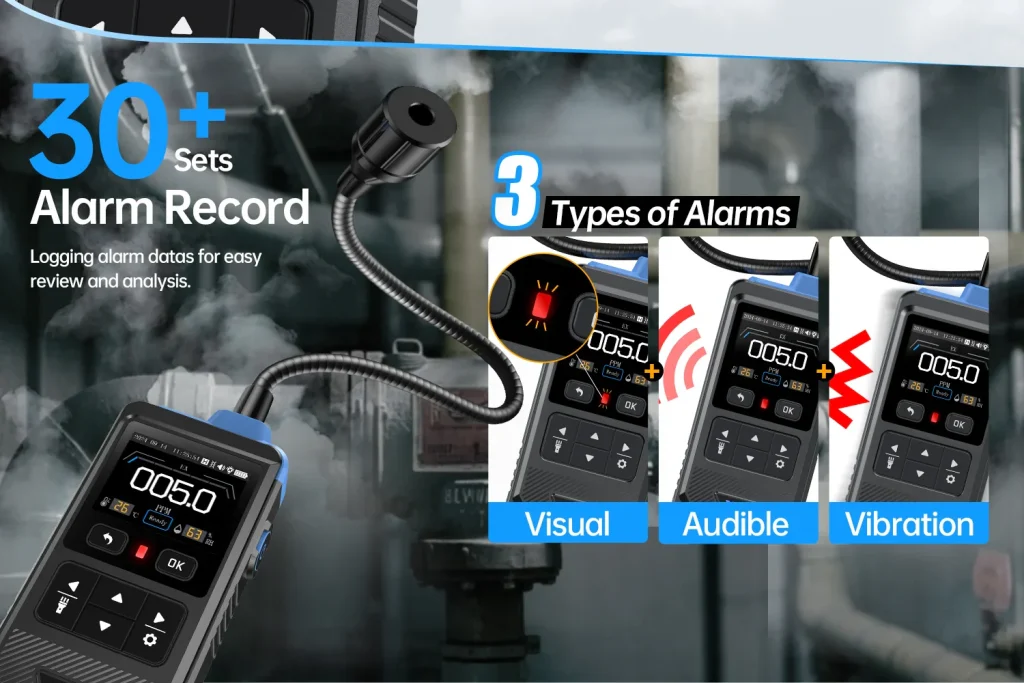

- Triple Alarm System – Audible, vibration, and visual alerts ensure timely safety warnings.
- Alarm Record Storage – Saves up to 30 alarm records for easy tracking and review.
- Fast Response & Recovery – <5s response time (T90) and <10s recovery time (T10) for rapid hazard detection.
- Long Sensor Lifespan – Durable sensor with over 3 years of reliable service.
- Rugged Environmental Adaptability – Operates in -10~55℃ with strong resistance to electromagnetic interference.
- Lightweight & Portable Design – Weighs approx. 296g, with a built-in flashlight for low-light or emergency use.

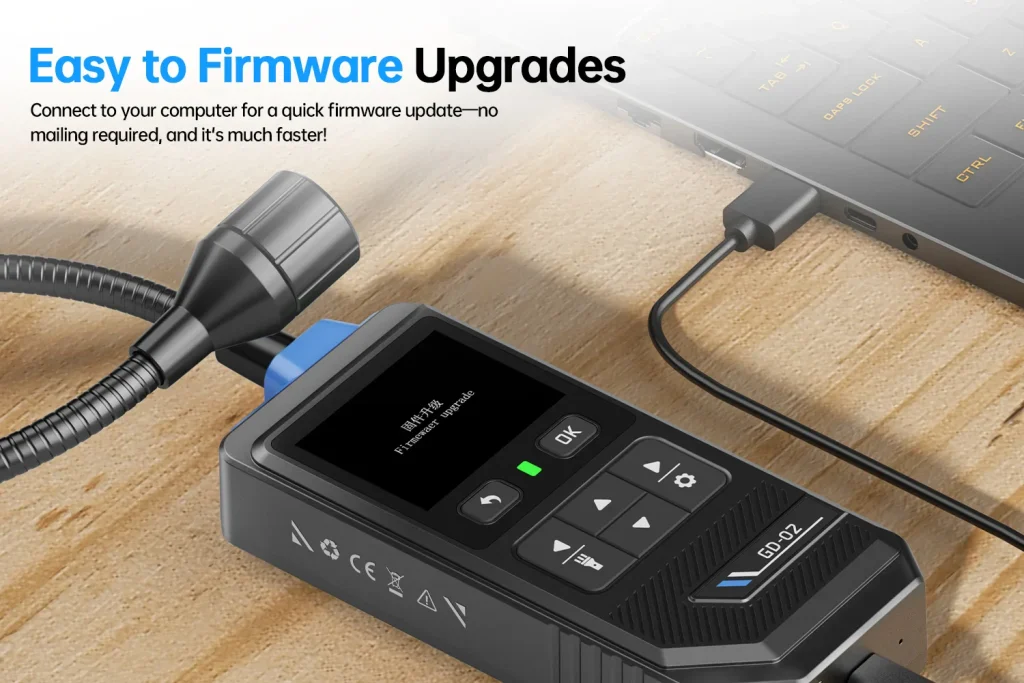

- Performance Upgrades & Data Hold – Supports USB Type-C firmware updates and data hold function for recording and analysis.
Specifications:
| Parameter | Specification |
|---|---|
| Model | GD-02 |
| Screen Material | 2.0‑inch Color Screen |
| Detectable Gases | Methane, Propane, Isobutane |
| Measurement Range (Methane) | 0 – 50000 ppm |
| Measurement Range (A%LEL) | 0 – 100 |
| Resolution | 1 ppm / 1 %LEL |
| Measurement Range (%LEL) | 0 – 100 |
| Operating Temperature | -10 ~ 55 ℃ |
| Warm‑up Time / Response Time | Around 15–16 seconds |
| Response Time (T90) | <5 s |
| Recovery Time (T10) | <10 s |
| Service Life | >3 years |
| Sampling Time | ≈0.5 s |
| Size | ≈63 × 28 × 139(+360) mm |
| Product Weight | ≈296 g |
| Languages | Simplified Chinese / English |
Applications:
- Gas leak detection.
- Kitchen gas safety inspection.
- LPG pipeline testing.
- HVAC maintenance.
- Industrial safety monitoring.
- Home safety inspection.
- RV gas system inspection.
- Laboratory gas monitoring.
- Propane tank inspection.
- Maintenance engineering.
- Workshop safety checks.
- Emergency leak troubleshooting.
Package Include:
- GD-02 Host.
- Type-C Charging Cable.
- Storage Case.
- User Manual.
- Packaging Box.
