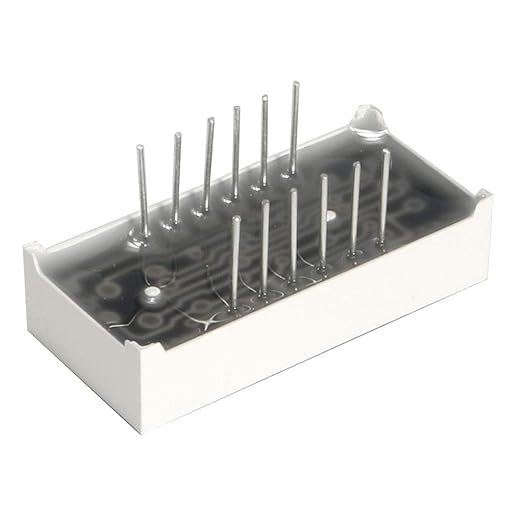

Four Digits 7-Segment Orange Led Display Common Anode 0.56 inch
A four-digit 7-segment LED display is an electronic component used for numerical and limited alphanumeric displays. This particular model has an orange LED output, features a common anode configuration, and has a 0.56-inch digit height. It is widely used in digital clocks, counters, meters, and various other numerical display applications.
Features:
- Excellent segment uniformity.
- Digit height 0.56 inch.
- Sold state reliability.
- Industrial standard size.
- Low power consumption.
- Made with white segments and black surface.
- Extreme short light response time.
- Can be driven by low voltage and low current.
- It is easy to drive and control and therefore is applied widely.
- Excellent characters appearance.
- High brightness & High contrast.
- Wide viewing angle.
- IC. compatible.
- Long life span.
- Easy mounting on P.C. board or socket.
- Environment friendly and energy saving.
- Wide Range Working Temperature.
Dimensions:
Pin Configuration:
Specifications:
- Display Type: 7-Segments
- Configuration: Common Anode
- Number of Pins: 12 pins
- LED color: Orange
- Number of Digits: 4 digits
- Digit Height: 14 mm (0.56 inch)
- Wavelength: 610 nm
- Forward Current (IF): 20 mA/Segment
- Peak Forward Current (IpF): 100 mA/Segment
- Forward Voltage (at IF=20mA): 2.6 V/Segment
- Reverse Voltage(Vr): 5 V/Segment
- Reverse Current(at Vr= 5V): 30 µA/Segment
- Power Dissipation: 65 mW/Segment
- Operating Temperature Range: -40°C to +80°C
- Soldering Temperature: 260°C for 5 Seconds
- Length: 50 mm
- Width: 19 mm
- Height: 7 mm
Applications:
- Industrial and Instrumental Applications.
- Digital Readout Display.
- Appliances and White Goods.
- Gaming Applications.
- Home and Smart Appliances.
- Automotive Industry for Dashboard Display, Fuel Gauge.
- Test and Measurement Equipment.
- Power Converter.
- TV set-up boxes and Gaming Machine.
- Elevators.
- Display Time and Digital Combination.
- Timer, Controller, DPM, Counter, etc.
