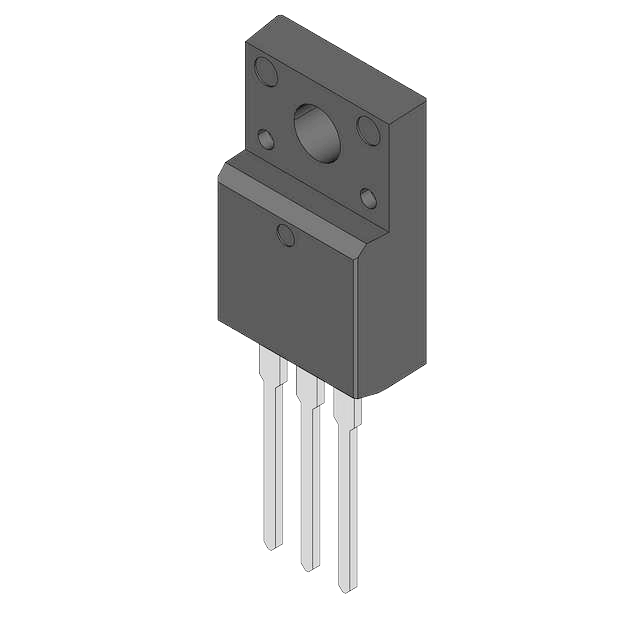

FQPF6N60 N-Channel MOSFET Transistor 600V 3.6A 1.5Ω TO-220F
The FQPF6N60 is a 600V N-Channel enhancement mode power field effect transistor. Produced using Fairchild’s proprietary planar stripe, DMOS technology, this advanced device is specifically tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulses in avalanche and commutation modes.
✅Features
- Voltage & Current: 600V Drain-Source Voltage (), 3.6A Continuous Drain Current.
- Performance: Low On-State Resistance ( @ ).
- Efficiency: Low gate charge (typical 20 nC) and Low (typical 10 pF).
- Reliability: 100% avalanche tested with improved dv/dt capability.
- Switching: Fast switching capability.
📜📚Specifications
💻Applications
- High efficiency switch mode power supply.
