G15T120BK3SD IGBT Transistor 1200V 30A TO-247

G15T120BK3SD IGBT Transistor 1200V 30A TO-247

The G15T120BK3SD is a high-performance Insulated Gate Bipolar Transistor (IGBT) designed for high-voltage and high-current switching applications. Combining the advantages of MOSFET gate drive characteristics with the high current capability of bipolar transistors, this device provides efficient switching and excellent power handling capability. Its TO-247 package allows effective heat dissipation and reliable operation in demanding power electronics applications.

This IGBT transistor is commonly used in inverters, motor control systems, switching power supplies, and industrial automation equipment. With its high voltage rating and strong current capability, it’s ensures stable performance in high-power circuits. The robust design and efficient switching characteristics make it suitable for applications requiring high efficiency, reliability, and thermal stability.

Features:

• High voltage power switching capability.
• Efficient IGBT technology for improved performance.
• Low conduction losses.
• Fast switching characteristics.
• High current handling capability.
• Durable TO-247 power package.
• Suitable for heat sink mounting.
• Reliable operation in industrial power circuits.

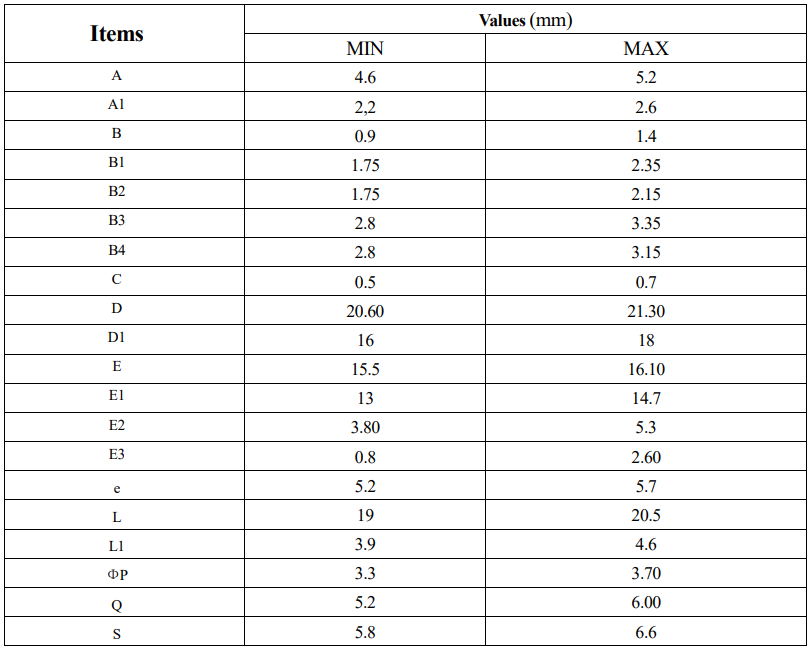

Specifications:

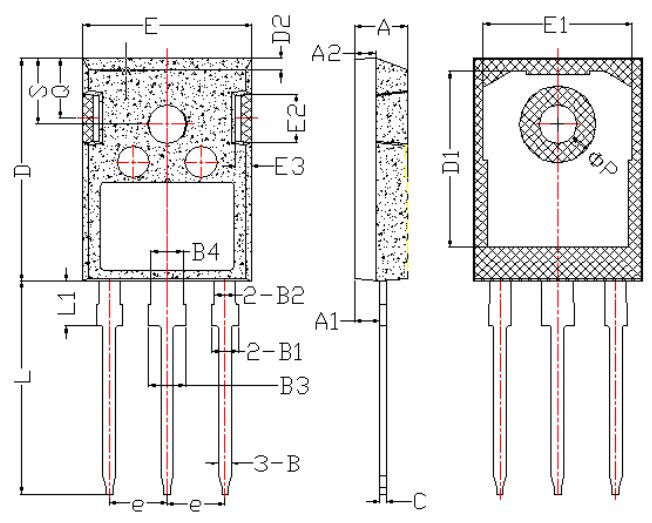

Pinout:

Applications:

• Motor drive systems.
• Inverter circuits.
• Switching power supplies.
• Industrial power control.
• UPS systems.
• Solar inverters.
• Induction heating equipment.

Package Included:

• 1x G15T120BK3SD IGBT Transistor 1200V 30A TO-247.

Datasheet:

• G15T120BK3SD.
