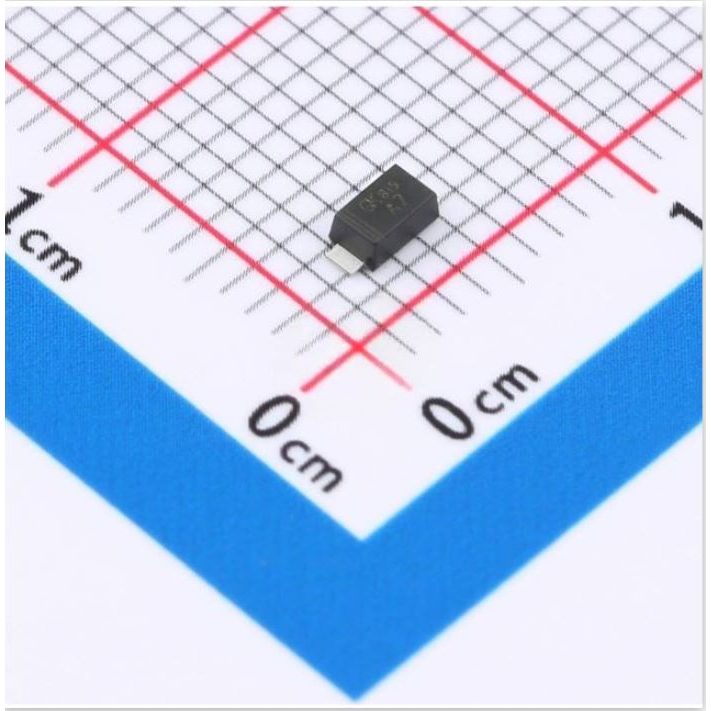

GOODWORK 1N4007W A7 SMD Diode 1.1V 1A Single 5uA@1kV SOD-123FL
The 1N4007W A7 SMD Diode 1.1V 1A Single 5µA@1kV SOD-123FL is a high-performance surface-mount rectifier diode designed for general-purpose applications requiring reliable current rectification and voltage protection. Manufactured by Good-Ark Semiconductor, this diode offers a forward voltage drop of 1.1V at 1A and a reverse voltage rating of 1kV, making it suitable for various electronic circuits.
Housed in the compact SOD-123FL package, this diode is ideal for space-constrained designs, contributing to efficient board layout and component placement. The glass-passivated chip junction ensures low reverse leakage current of 5µA at 1kV, enhancing the diode’s reliability and performance in high-voltage applications.
Features:
- Ideal for surface mount applications
- Easy pick and place
- Built-in strain relief
- High surge current capability
Specifications:
| Parameter | Value |
|---|---|
| Diode Type | Standard Rectifier |
| Voltage Rating (VRRM) | 1000V |
| Current Rating (IF(AV)) | 1A |
| Forward Voltage (VF) | 1.1V@1A |
| Reverse Current (IR) | 5µA@1000V |
| Surge Current (IFSM) | 25A |
| Junction Capacitance (CJ) | 15pF |
| Operating Temperature | -65°Cto+150°C |
| Package/Case | SOD-123FL |
| Size/Dimensions | 3.75mmx1.95mmx0.85mm |
| Mounting Type | Surface Mount |
| Thermal Resistance | 80°C/W |

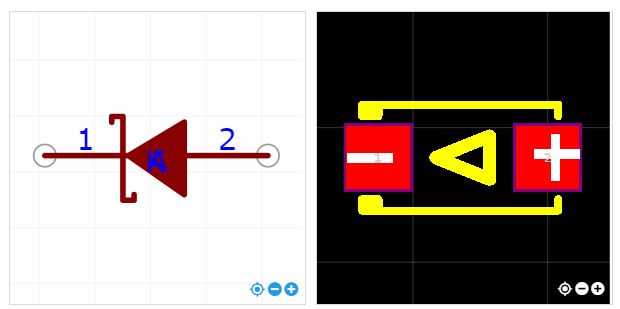

Foot print & Dimension:
Applications:
- Rectification in AC-DC power supplies and adapters.
- Freewheeling and blocking in switching power converters.
- Protection circuits in battery chargers and inverters.
- Signal clipping and clamping in audio and RF modules.
- Reverse polarity protection in automotive electronics.
- Bridge rectification in consumer appliances like chargers.
- High-voltage filtering in industrial motor drives.
- Overvoltage suppression in telecommunications equipment.
Document:
| Parameter | Value |
|---|---|
| Datasheet | 1N4007W-A7 |
| Certifications | Quality Management System Environmental Management System |
