IR2113S Half Bridge Gate Driver SMD SOIC-16
| Manufacturer | Infineon Technologies |
|---|---|
| Model Number | IR2113S |
| Type | Half Bridge Gate Driver SMD IC |
| Datasheet | IR2113S |
85.00 EGP
In stockSKU 3496300096565
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
IR2113S Half Bridge Gate Driver SMD SOIC-16
The IR2113S is a high-voltage, high-speed gate driver integrated circuit designed specifically for driving power MOSFETs and IGBTs in half-bridge configurations. Manufactured by Infineon Technologies, this surface-mount device (SMD) comes in a SOIC-16-300mil wide-body package, offering robust performance for demanding applications. It features independent high-side and low-side referenced output channels, enabling precise control of N-channel power devices in high-side setups operating up to 600V offset voltage.
Features:
- Floating channel for bootstrap operation up to +600V with dV/dt immunity.
- Gate drive supply range from 10V to 20V.
- Undervoltage lockout for high and low side channels.
- 3.3V logic compatible inputs with Schmitt-trigger and pull-down.
- Matched propagation delays for both channels (maximum 20ns mismatch).
- High peak output current of 2A source/sink.
Specifications:
| Parameter | Value |
|---|---|
| Logic Family | HVIC (High Voltage Integrated Circuit) |
| Supply Voltage Range | 10V to 20V (VCC, VBS, VDD) |
| High Side Floating Supply Voltage | VS + 10V to VS + 20V, max 625V (VB) |
| Output Current (Source/Sink) | 2A / 2A |
| Propagation Delay (Turn-On) | 120ns |
| Propagation Delay (Turn-Off) | 94ns |
| Rise Time (tr) | 25ns |
| Fall Time (tf) | 17ns |
| Quiescent Current (VBS) | 125µA |
| Quiescent Current (VCC) | 180µA |
| Operating Temperature Range | -40°C to 125°C |

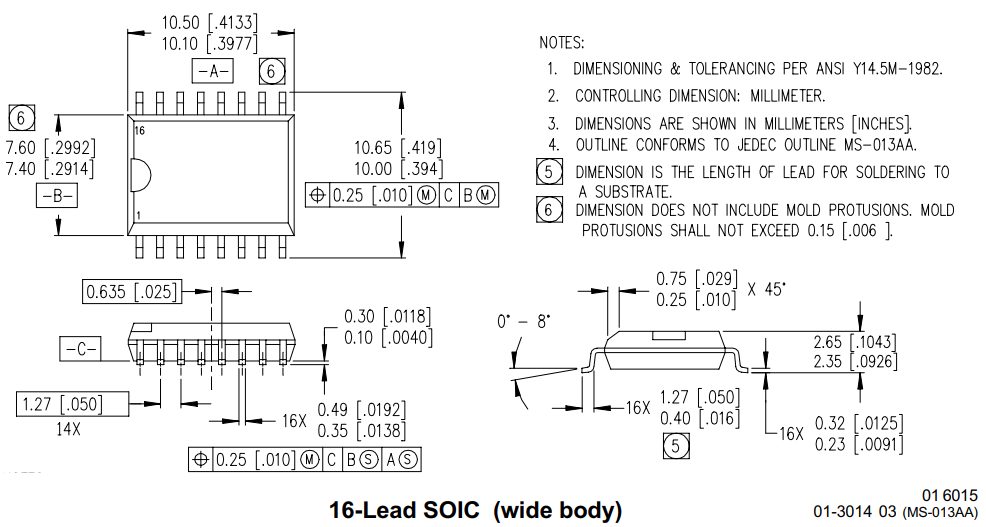

| Package Type | SOIC-16 (Wide Body, 300mil) |
| Number of Drivers | 2 (One high-side driver, one low-side driver) |
Pin Configuration:
Applications:
- Motor control circuits in industrial and automotive applications.
- Power inverters for renewable energy systems.
- DC-AC conversion for power supplies.
- High-efficiency power amplifiers and audio applications.
- Battery-powered systems requiring low power consumption.
- Power electronics in automotive and consumer electronics.
Package Include:
1x IR2113S Half Bridge Gate Driver SMD SOIC-16.
