IRLZ44Z N-Channel MOSFET Transistor 55V 51A Through Hole TO-220AB
IRLZ44Z N-Channel MOSFET: 55V, 51A logic-level drive, fast switching, and ultra-low on-resistance. Rated for 175°C in a TO-220AB package.
30.00 EGP
In stockSKU 3496300149551
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
IRLZ44Z N-Channel MOSFET Transistor 55V 51A Through Hole TO-220AB
The IRLZ44Z is an N-Channel HEXFET® Power MOSFET that utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. Designed for efficiency and reliability, this device features a high operating temperature of and fast switching speeds, making it a robust component for a wide range of electronic designs.
Features
- Logic Level Drive: Designed to be triggered by logic-level gate voltages.
- Advanced Process Technology: Optimized for ultra-low on-resistance ().
- High Temperature Rating: Operating junction temperature up to .
- Fast Switching: Engineered for high-speed performance in power circuits.
- Repetitive Avalanche: Built to allow repetitive avalanche energy up to .
- Lead-Free: Environmentally friendly construction.
Specifications
| Parameter | Value | Conditions / Notes |
|---|---|---|
| Absolute Maximum Ratings | ||
| Drain-to-Source Voltage (VDSS) | 55 V | – |
| Continuous Drain Current (ID) @ 25°C | 51 A | VGS @ 10V (Silicon Limited) |
| Continuous Drain Current (ID) @ 100°C | 36 A | VGS @ 10V |
| Pulsed Drain Current (IDM) | 204 A | – |
| Power Dissipation (PD) @ 25°C | 80 W | – |
| Gate-to-Source Voltage (VGS) | ± 16 V | – |
| Single Pulse Avalanche Energy (EAS) | 78 mJ | Thermally limited |
| Operating Junction and Storage Temp Range | -55 to +175 °C | – |
| Static Electrical Characteristics (@ TJ = 25°C) | ||
| Static Drain-to-Source On-Resistance (RDS(on)) | 13.5 mΩ | VGS = 10V, ID = 31A |
| Static Drain-to-Source On-Resistance (RDS(on)) | 20 mΩ | VGS = 5.0V, ID = 30A |
| Static Drain-to-Source On-Resistance (RDS(on)) | 22.5 mΩ | VGS = 4.5V, ID = 15A |
| Gate Threshold Voltage (VGS(th)) | 1.0 V to 3.0 V | VDS = VGS, ID = 250μA |
| Forward Transconductance (gfs) | 27 S | VDS = 25V, ID = 31A (Min) |
| Dynamic & Switching Characteristics | ||
| Total Gate Charge (Qg) | 24 nC (Typ) / 36 nC (Max) | ID = 31A, VDS = 44V, VGS = 5.0V |
| Turn-On Delay Time (td(on)) | 14 ns | VDD = 50V, ID = 31A, RG = 7.5Ω |
| Rise Time (tr) | 160 ns | VDD = 50V, ID = 31A, RG = 7.5Ω |
| Turn-Off Delay Time (td(off)) | 25 ns | VDD = 50V, ID = 31A, RG = 7.5Ω |
| Fall Time (tf) | 42 ns | VDD = 50V, ID = 31A, RG = 7.5Ω |
| Thermal Resistance | ||
| Junction-to-Case (RθJC) | 1.87 °C/W | Max |
| Junction-to-Ambient (RθJA) | 62 °C/W | Max |
Applications
- The combination of fast switching, rugged design, and low on-resistance makes the IRLZ44Z suitable for an extremely wide variety of efficient and reliable power applications.

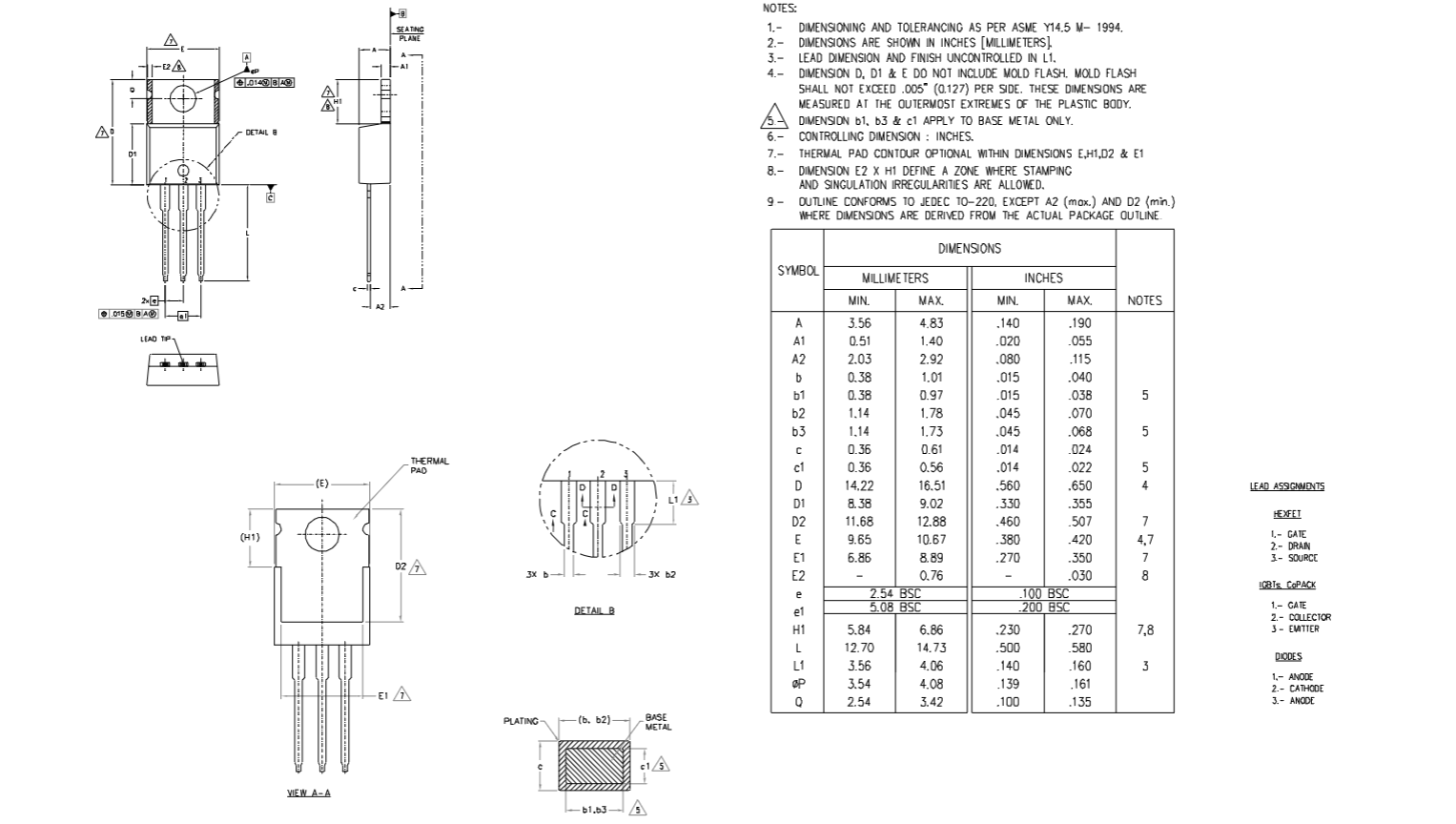

Package Content
- 1 x IRLZ44Z N-Channel MOSFET Transistor 55V 51A Through Hole TO-220AB
DataSheet
