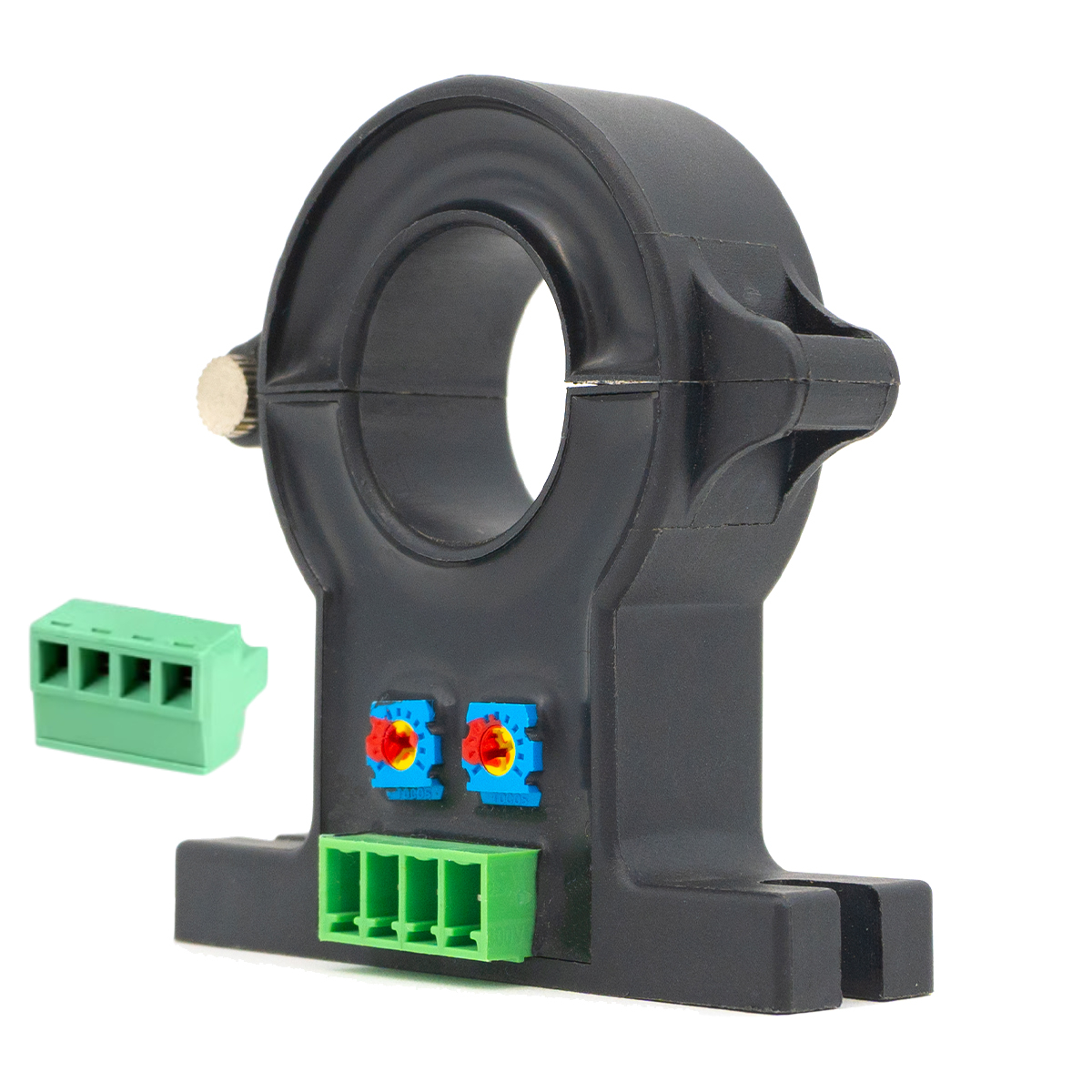

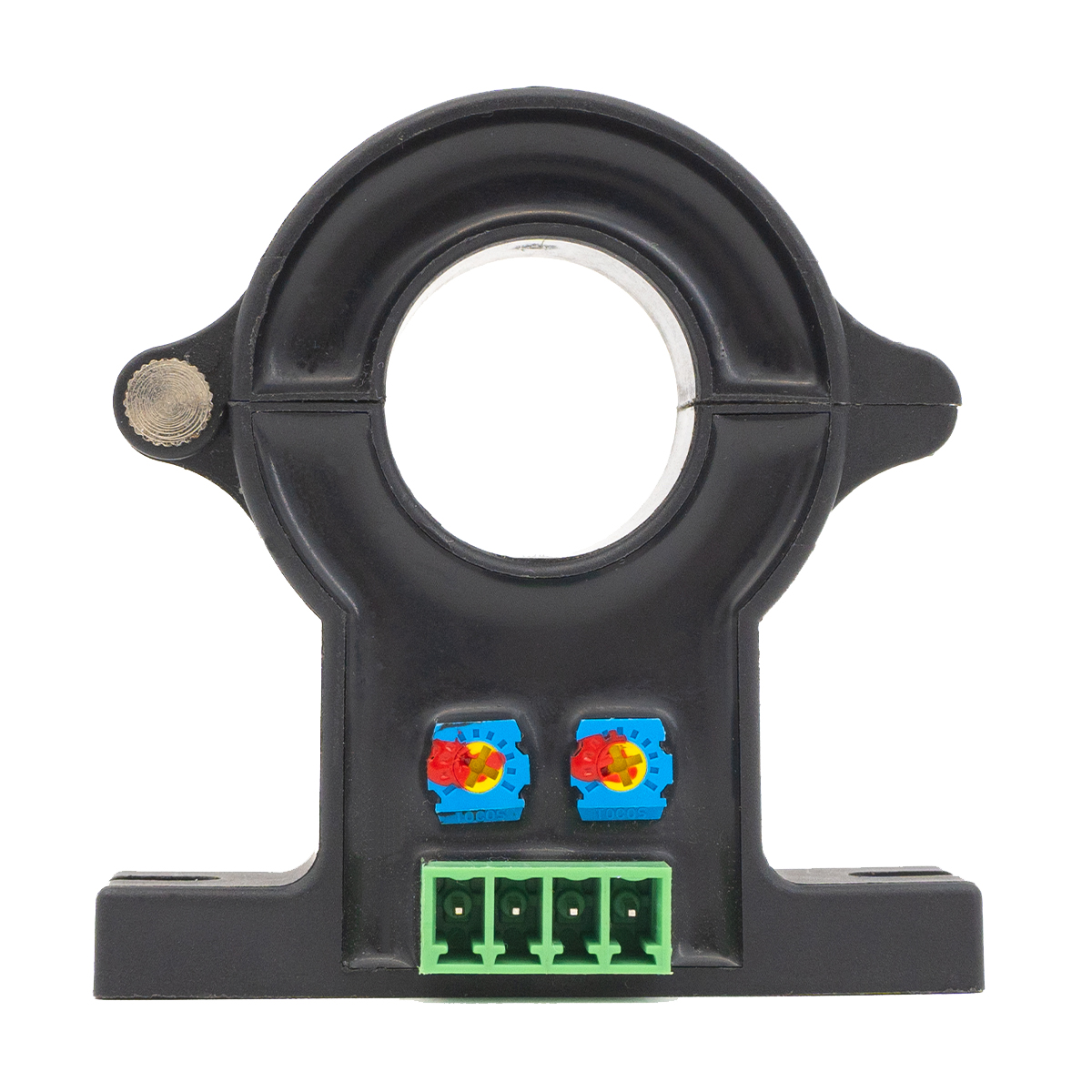

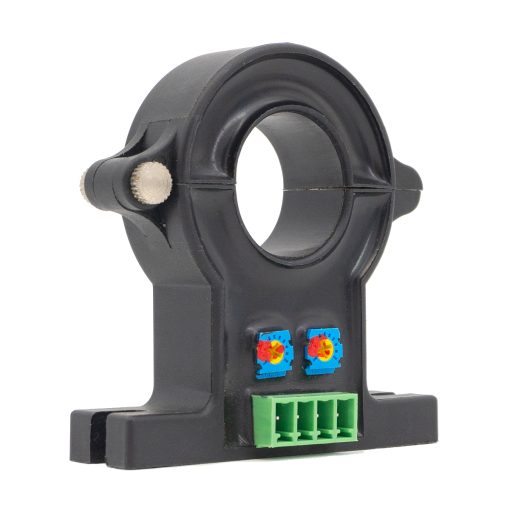

K6-P5S2-200 Split-Core Hall-Effect Current Sensor 5VDC (200A to 2.5V ± 2V)
This K6-P5S2-200 is a 5 V-powered split-core Hall-effect current sensor designed to measure current without breaking the circuit. You clamp it around one conductor, power it from +5 V, and read its analog output on the M terminal. With no current, the output sits at 2.5 V. As the current waveform changes, the output swings between roughly 0.5 V and 4.5 V, allowing a PLC, microcontroller, or data acquisition system to measure the current while remaining electrically isolated from the high-current conductor.
Features
- Dismountable Design
- Galvanic Isolation
- Versatile Current Measurement
- Adjustable Calibration
- Pluggable Terminal Block

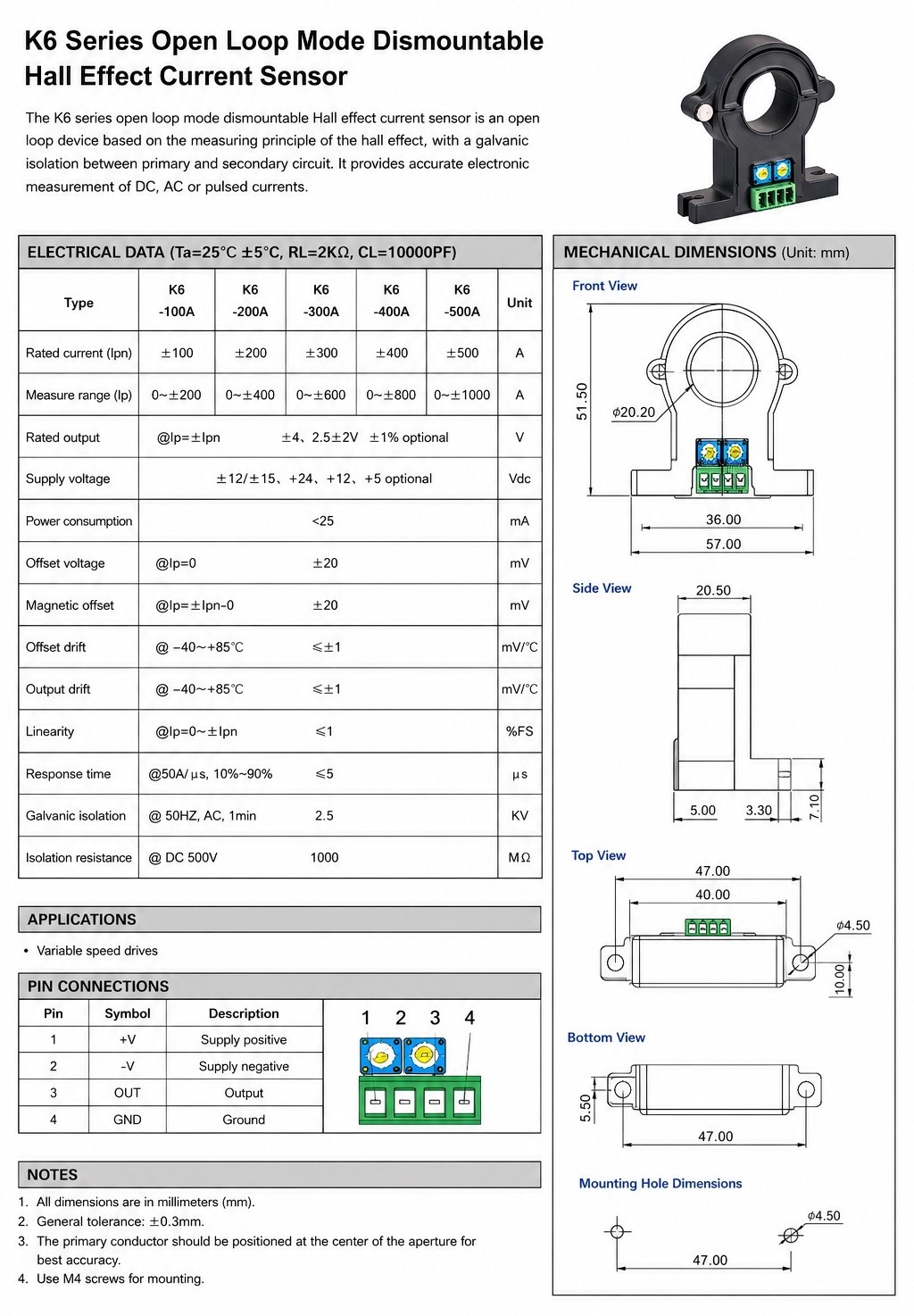

Specifications
Applications
- Variable speed motor drives
- Power monitoring and electronic current measurement systems
Package Content
- 1 x K6-P5S2-200 Split-Core Hall-Effect Current Sensor 5VDC (200A to 2.5V ± 2V)
- 1 x 4-Pin Pluggable Terminal Block Connector
