KBP06 Bridge Rectifier Single-Phase 2A 600V
The KBP06 is a single-phase silicon bridge rectifier designed for full-wave AC-to-DC rectification in electronic power circuits. It provides a compact solution for converting an AC input into a pulsating DC output, making it suitable for use in power supply stages and other circuits that require rectified voltage. The device has a molded plastic body with plated, solderable leads and polarity markings on the case.
The KBP series is designed for printed circuit board mounting and features low reverse leakage and high forward surge current capability. The datasheet specifies a maximum repetitive peak reverse voltage of 600V for the KBP06 variant, with a maximum average forward output rectified current of 2.0A for the series. The package is suitable for any mounting position and is rated for high-temperature soldering under the conditions stated in the datasheet.
Features:
- Single-phase bridge rectifier.
- Silicon rectifier construction.
- Full-wave rectification.
- Molded plastic body.
- Plated solderable leads.
- Polarity symbols marked on the case.
- Low reverse leakage.
- High forward surge current capability.
- Suitable for printed circuit boards.
- Any mounting position.
Specifications:
| Parameter | Value |
|---|---|
| Part Number | KBP06 |
| Device Type | Silicon Bridge Rectifier |
| Configuration | Single Phase |
| Rectification | Full Wave |
| Maximum Repetitive Peak Reverse Voltage (VRRM) | 600V |
| Maximum RMS Voltage (VRMS) | 420V |
| Maximum DC Blocking Voltage (VDC) | 600V |
| Maximum Average Forward Output Rectified Current | 2.0A |

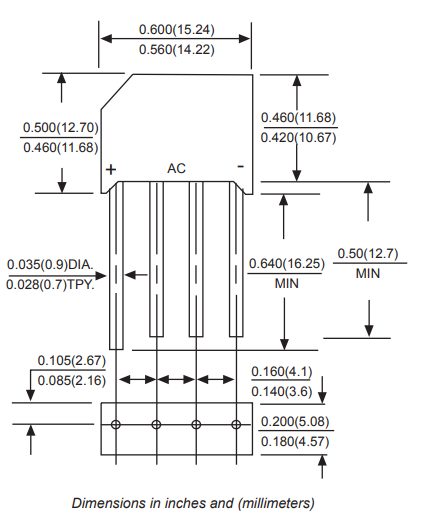

| Package | KBP molded plastic |
| Mounting | Through Hole |
| Body Material | Molded Plastic |
| Operating Junction Temperature | -60°C to +150°C |
| Storage Temperature | -60°C to +150°C |
| Weight | 1.95g |
| Flammability Classification | UL 94V-0 |
Pinout:
| Terminal | Function |
|---|---|
+ |
Positive DC output |
~ |
AC input |
~ |
AC input |
- |
Negative DC Output |
Applications:
- AC-to-DC power supplies.
- Linear power supplies.
- Adapter circuits.
- PCB power supply stages.
- Battery charger circuits.
- DC power conversion.
- General-purpose rectification.
- Electronic equipment power sections.
Packages Included:
- 1 × KBP06 Bridge Rectifier Single-Phase 600V 2A.
