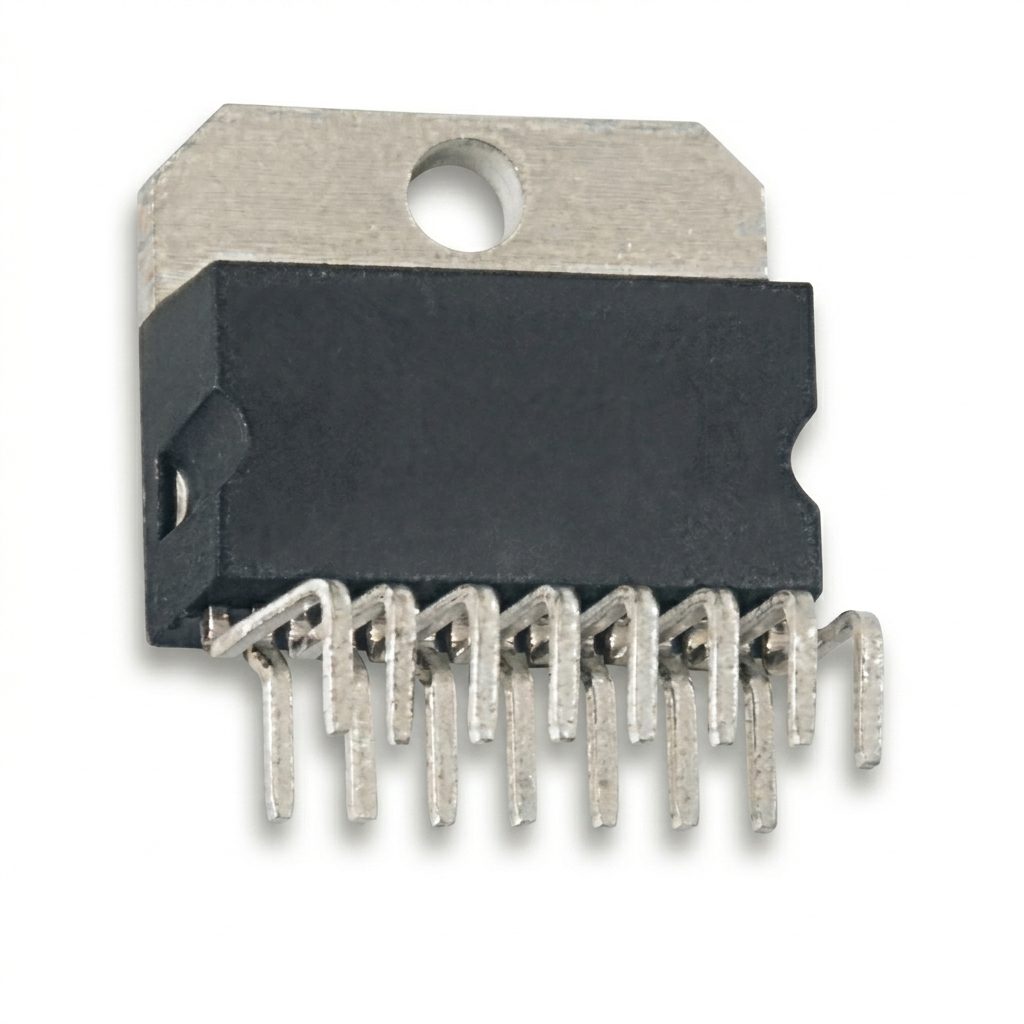

L292 Switch-Mode DC Motor Driver IC TO-220-15
L292 Switch-Mode DC Motor Driver IC TO-220-15 Ultra-Reliable Dual H-Bridge Motor Control with Advanced Protection & High Efficiency ensures stable.
75.00 EGP
Buy NowL292 Switch-Mode DC Motor Driver IC TO-220-9
L292 Switch-Mode DC Motor Driver IC TO-220-15 is Ultra-Reliable Dual H-Bridge Motor Control with Advanced Protection & High Efficiency is designed for precise and efficient DC motor driving in demanding applications. It features a dual H-bridge architecture, switch-mode operation, and integrated protection functions that ensure safe and stable performance under varying load conditions. With its 15-pin TO-220 package, it provides enhanced control capability, improved thermal handling, and easy integration into industrial automation, robotics, and motion control systems requiring reliable high-power motor operation.
Features
- High-power dual H-bridge motor driver for advanced control systems.
- Efficient switch-mode operation reduces power loss.
- 15-pin TO-220 package enables extended functionality.
- Built-in overcurrent and thermal protection for safety.
- Supports precise speed and directional motor control.
- High reliability for continuous industrial operation.
- Excellent heat dissipation for stable performance.
- Compatible with microcontroller-based control systems.
- Ideal for demanding automation and robotics applications.
- Robust design ensures long operational lifespan.
Specifications
| Parameter | Details |
| Product Type | DC Motor Driver IC |
| IC Model | L292 |
| Driver Type | Switch-Mode Motor Driver |
| Motor Type | DC Motor |
| Package Type | TO-220-15 / Multiwatt15 |
| Supply Voltage | 18V to 36V DC |
| Maximum Supply Voltage | 36V DC |
| Output Current | 2A |
| Peak Output Current | 2.5A |
| Operating Frequency | 1kHz to 30kHz |
| Logic Enable Inputs | 2 |
| Input Signal | Symmetric to Ground |
| Loop Gain Adjustment | External |
| Power Supply Type | Single Supply |
| Input Voltage Range | -15V to +Vs |
| Inhibit Voltage Range | 0V to Vs |
| Total Power Dissipation | 25W |
| Thermal Resistance | 3°C/W Max |
| Thermal Protection | Yes |
| Storage Temperature | -40°C to +150°C |
| Junction Temperature | -40°C to +150°C |
| Applications | Motor Positioning Systems, Typewriters, Microprocessor Controlled Motor Systems |

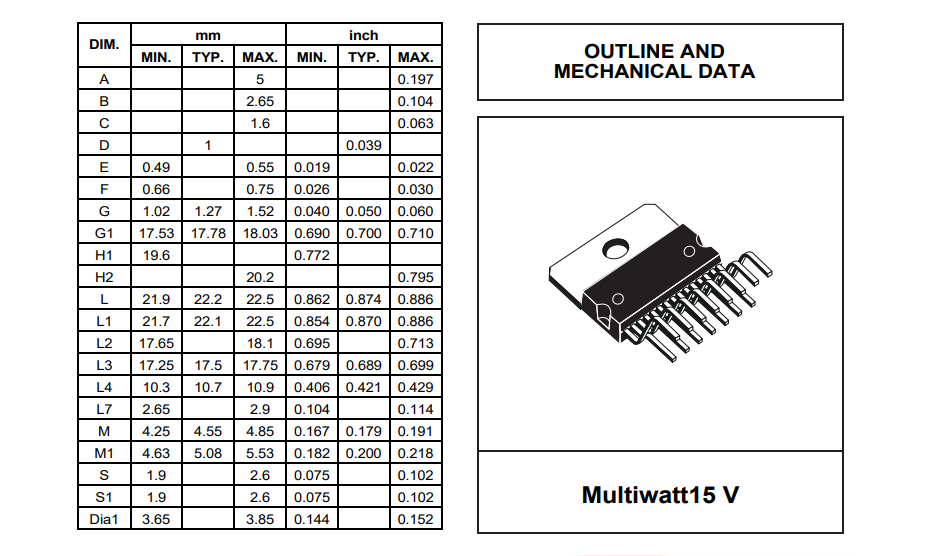

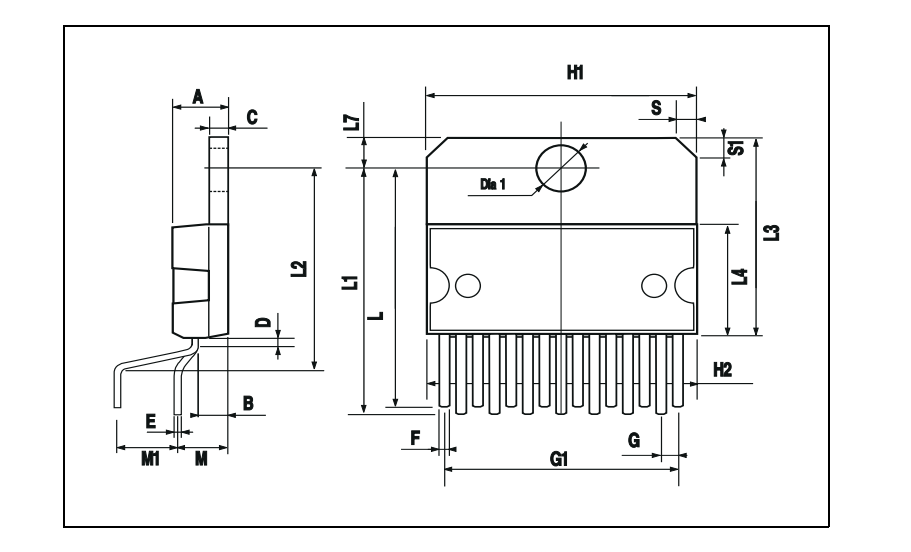

Dimensions

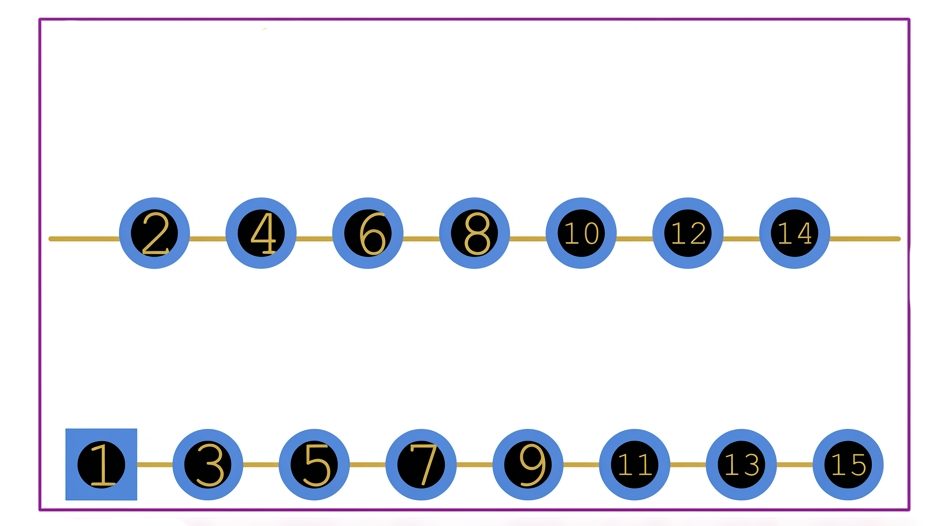

Footprint
Pin Configuration
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | Sense A | Current sensing input for bridge A. |
| 2 | Output 1 | Motor output terminal 1. |
| 3 | VS | Motor power supply input. |
| 4 | Input 1 | Logic control input 1. |
| 5 | Enable A | Enables H-bridge A output stage. |
| 6 | Input 2 | Logic control input 2. |
| 7 | GND | Ground reference connection. |
| 8 | Output 2 | Motor output terminal 2. |
| 9 | Sense B | Current sensing input for bridge B. |
| 10 | VSS | Logic supply voltage input. |
| 11 | Reference | Current limit reference voltage input. |
| 12 | Enable B | Enables H-bridge B output stage. |
| 13 | Brake | Activates motor braking function. |
| 14 | Diagnostic | Fault/status output signal. |
| 15 | Thermal Flag | Over-temperature warning output. |
Applications
- DC motor speed control systems.
- Industrial automation equipment.
- Robotics and robotic motion systems.
- Conveyor belt control systems.
- CNC machine motor drives.
- Electromechanical actuator systems.
- Positioning and control systems.
- Smart automotive subsystems.
- Battery-powered motor applications.
- Educational electronics projects.
- Industrial drive modules.
- Precision motion control systems.
Package Contents
- 1 x L292 Switch-Mode DC Motor Driver IC TO-220-15
