MAX3232 Transceiver IC 3V–5.5V PDIP-16
MAX3232 Buffers / Drivers PDIP-16 is a low-power dual RS-232 transceiver with two drivers and two receivers, operating from 3.0V to 5.5V with integrated charge pumps for reliable serial communication.
20.00 EGP
Buy NowMAX3232 Transceiver IC 3V–5.5V PDIP-16
The MAX3232 Transceiver IC 3V–5.5V PDIP-16 is a high-performance dual RS-232 transceiver designed to provide reliable communication between TTL/CMOS logic circuits and RS-232 serial interfaces. The device integrates two line drivers and two line receivers, allowing full-duplex serial communication while operating from a single 3.0V to 5.5V power supply. Its built-in dual charge pump generates the positive and negative RS-232 voltages internally, eliminating the need for external ±12V supplies and significantly simplifying circuit design.
Features
- Dual RS-232 transceiver.
- Two drivers and two receivers.
- Single supply operation from 3.0V to 5.5V.
- Integrated dual charge-pump circuitry.
- Requires only four external capacitors.
Specifications
| Name of the product | MAX3232 ESE MAXIM |
| Product Category | Driver – Interface |
| Product Sub-Category | RS Integrated |

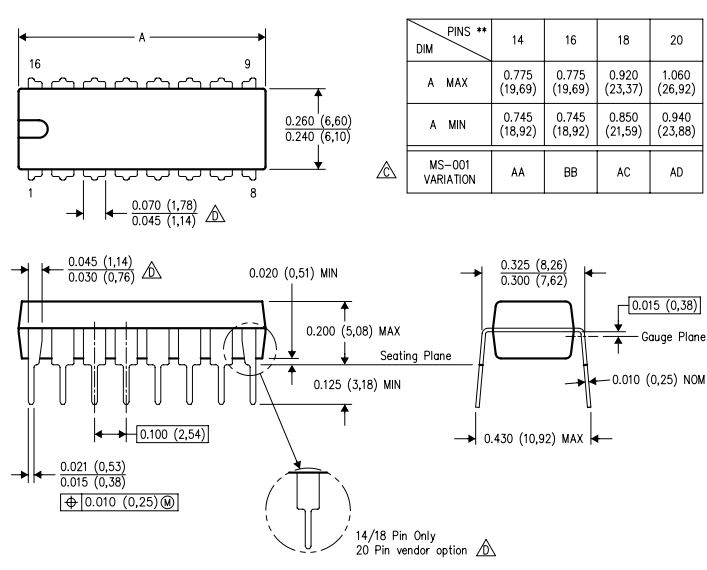

| Package Type | DIP-16 |
| Number of Pins | 16 |
| Input Voltage | 3 – 5.5V |
| Interface Type | RS232 |
| Number of Drivers | 2 |
| Number of Recipients | 2 |
| Device Type | transceiver |
Pin Configuration:
Applications:
- RS-232 serial communication.
- Microcontroller interfaces.
- Arduino projects.
- Embedded systems.
- Industrial automation.
- PLC communication.
- GPS receivers.
- Barcode scanners.
- Data loggers.
- POS terminals.
- Serial printers.
- Test and measurement equipment.
Package Include:
1x MAX3232 Buffers / Drivers PDIP-16
