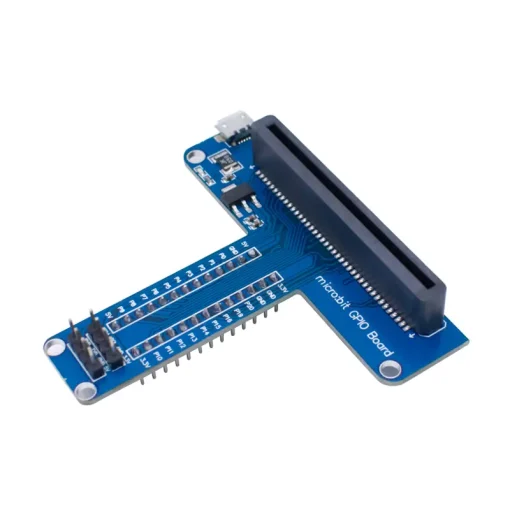

Micro:bit GPIO Expansion Board
The Micro:bit GPIO Expansion Board is a simple, plug-and-play breakout that brings all the BBC micro:bit edge connector pins to clearly labelled, breadboard-friendly 2.54 mm female headers. It provides easy access to every GPIO pin, power rails (3.3V and 5V), and multiple ground connections, eliminating the need for edge connector adapters or messy wiring. Just slot in your micro:bit and start prototyping.
Features:
- Full GPIO breakout.

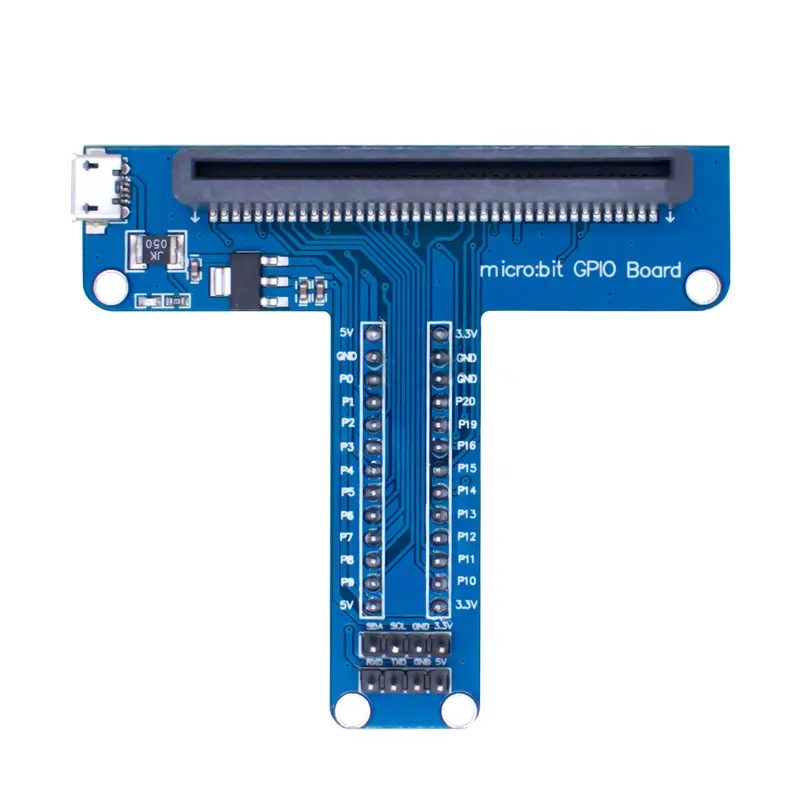

- Clear, permanent pin labelling.
- Multiple power rails.
- P10 on both sides.
- No soldering required.
- Compact and lightweight.
- Compatible with all BBC micro.
Specifications:
| Compatibility: | BBC micro:bit V1 and V2 |
| Power outputs: | 3.3V (×2), 5V (×2) 5V is only active when micro:bit is powered via USB |
| Ground pins: | 5 dedicated GND connections |
| Pin pitch: | 2.54 mm (standard breadboard spacing) |
| Connector type: | Micro:bit edge connector + female header strips (2.54 mm) |
Applications:
- Rapid prototyping with sensors, LEDs, and actuators.
- Robotics and motor driver circuits.
- Educational STEM projects in classrooms and workshops.
- IoT experiments with external modules.
- Servo control.
Package Content:
- 1x Micro:bit GPIO Expansion Board (Micro: bit is not Included)
