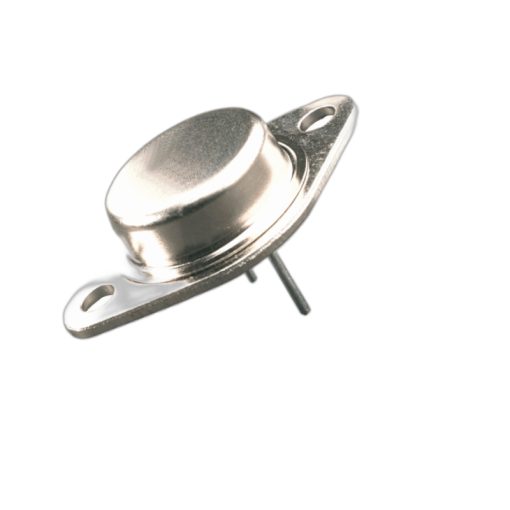

MJ11022 Darlington Transistor TO-3
The MJ11022 Darlington Transistor TO-3 is a high-power, high-gain transistor designed for switching and amplification applications.
400.00 EGP
In stockSKU 3496300138777
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
MJ11022 Darlington Transistor TO-3
The MJ11022 is a Darlington power transistor in a TO-3 metal package, designed for high power, high-efficiency applications. It is commonly used in power amplification, motor control, and other high-current applications due to its excellent switching and amplification capabilities. The Darlington configuration enhances the current gain of the transistor, making it suitable for driving higher loads. It features a maximum collector-emitter voltage of 250V and a maximum collector current of 15A, which makes it an excellent choice for high-power circuits.
Features:
- High power and high current handling capabilities.
- Darlington configuration for increased current gain.
- TO-3 package for effective heat dissipation.
- Maximum collector-emitter voltage of 250V.
Specifications:
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage | 250VDC |
| Collector-Base Voltage | 250VDC |
| Emitter-Base Voltage | 50VDC |
| Continuous Collector Current | 15A |
| Peak Collector Current | 30A |
| Base Current | 0.5A |
| Power Dissipation (TC=25°C) | 175W |
| Thermal Resistance Junction-to-Case | 0.86°C/W |
| DC Current Gain (IC=10A, VCE=5V) | 400min |
| Collector-Emitter Saturation Voltage (IC=10A, IB=100mA) | 2Vmax |
| Base-Emitter Saturation Voltage (IC=15A, IB=150mA) | 3.8Vmax |
| Current-Gain Bandwidth Product | 3MHztyp |
| Output Capacitance | 400pFtyp |
| Operating Temperature Range | -65°C to +175°C |
Foot print:
Applications:
- General-purpose power amplifiers.
- Low-frequency switching circuits.
- Motor control systems.
- Power regulators and drivers.
- Audio amplification stages.
Package Include:
1x MJ11022 Darlington Transistor TO-3
