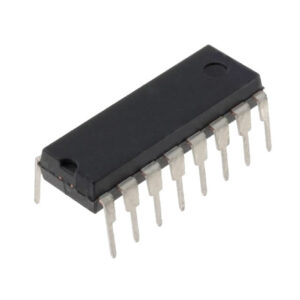

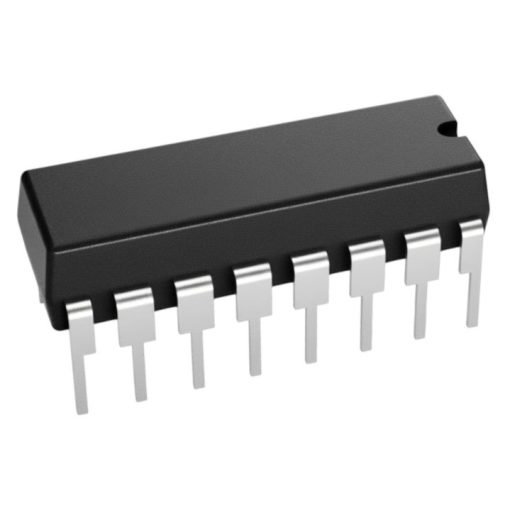

NE646N Dolby Noise Reduction Circuit DIP-16

The NE646N is a monolithic IC for Dolby B-type noise reduction, designed to improve audio in magnetic tape and FM broadcast applications.

80.00 EGP

In stockSKU 3496300098101
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Availability: In Stock
SKU:3496300098101

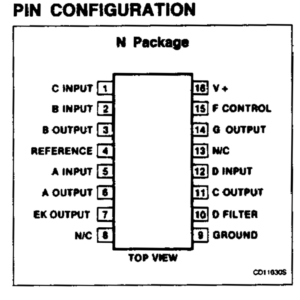

NE646N Dolby Noise Reduction Circuit

The NE646N is a monolithic integrated circuit designed for Dolby B-type noise reduction systems. It is a direct replacement for the earlier NE645B/NE646B devices and is engineered to significantly reduce the background noise typically introduced during the recording and playback of audio on magnetic tape. This circuit also improves the noise level in FM broadcast reception.

Features
  • Accurate Record Mode Frequency Response
  • Excellent Frequency Response Tracking
  • Excellent Back-to-Back Dynamic Response
  • Improved Op-Amp Stability
  • High Reliability Packaging
Specifications
Parameter Value Unit
Supply Voltage Range (Vcc) 8 to 20 V
Typical Supply Current (Vcc = 12V) 16 (Typ) mA
Operating Ambient Temperature 0 to +70 °C
Voltage Gain (Pins 5-3, f=1kHz) 26 (Typ) dB
Total Harmonic Distortion (THD) 0.05 (Typ) %
Signal-to-Noise Ratio (Record Mode) 72 (Typ) dB
Signal-to-Noise Ratio (Playback Mode) 82 (Typ) dB
Input Resistance (Pin 5) 50 (Typ) kΩ
Output Resistance (Pin 3) 80 (Typ) Ω
Package 16-Pin Plastic DIP

Applications
  • Tape Decks
  • Dolby Surround Sound Systems
  • FM Broadcast Reception
  • Professional Audio Recording Equipment
