ON/OFF Switch 3 pins 6A 250VAC 15x21mm
ON/OFF Switch is a versatile 3-pin configured as a Single-Pole Double-Throw (SPDT) switch, rated for 6A at 250VAC. Measuring approximately 15x21mm for the mounting hole and bezel, it is designed for straightforward panel installation. The three terminals—common (C), normally open (NO), and normally closed (NC)—provide flexible wiring options for either simple on/off operation or as a changeover switch. Its durable construction makes it suitable for controlling power in various household, commercial, and hobbyist electronic applications.
Features:
- Single-Pole Double-Throw (SPDT) Configuration.
- Panel Mount Design with Nut Fixing.
- Quick-Connect or Solder Terminals.
- AC Mains Rated.
- Durable Toggle or Rocker Actuator.
- Simple On/Off or Changeover Functionality.
Specifications:
| Parameter | Specification |
|---|---|
| Type: | SPDT (Single-Pole Double-Throw) |
| Contact Rating: | 6A at 250VAC
10A at 125VAC |
| Maximum Voltage: | 250VAC |
| Maximum Current: | 6A |
| Number of Terminals: | 3 |

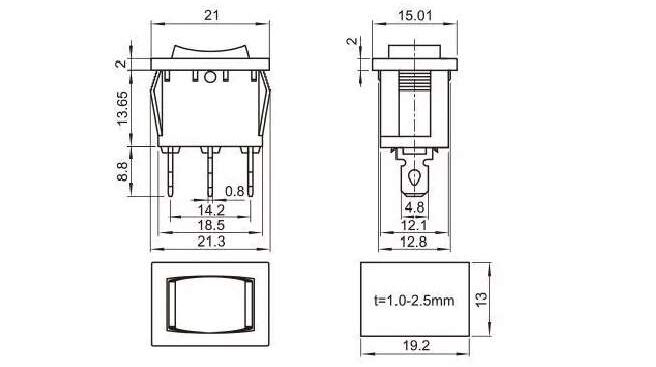

| Mounting Hole Size: | ~15mm x 21mm |
| Terminal Type: | Quick-Connect (Blade) or Solder Lug |
| Actuator Type: | Toggle or Rocker |
| Contact Material: | Silver Alloy |
| Mechanical Life: | >10,000 cycles |
Pinout:
| Terminal | Function (Common SPDT Configuration) |
|---|---|
| Center Terminal | Common (C) |
| Top Terminal | Normally Open (NO) |
| Bottom Terminal | Normally Closed (NC) |
Applications:
- it’s used for Appliances (Fans, Lights, Heaters).
- Control Panels for Industrial Equipment.
- DIY Electronics Projects.
- Audio Equipment Power Control.
- Power Supply Units (PSU).
- Hobbyist and Maker Projects.
Packages:
- 1x ON/OFF Switch 3 pins 6A 250VAC 15x21mm.
