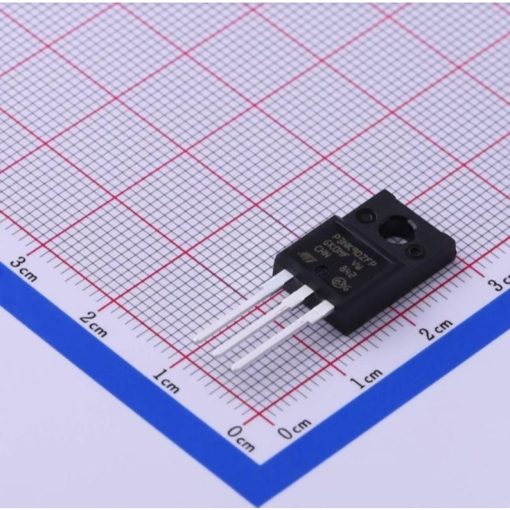

P3NK90ZFP MOSFET Transistor N-channel 900V 3A 25W 3.6Ω TO-220F
P3NK90ZFP MOSFET Transistor N-channel 900V 3A 25W 3.6Ω TO-220F is a high-voltage N-channel power MOSFET designed for efficient switching and power management applications. With a 900V drain-source voltage rating, 3A continuous drain current, 25W power dissipation, and 3.6Ω on-resistance, it delivers reliable performance in switch-mode power supplies, lighting systems, motor controls, and industrial electronics. The insulated TO-220F package provides enhanced electrical isolation and simplified thermal management for robust circuit designs.
Features
- High-voltage N-channel power MOSFET.
- Maximum drain-source voltage of 900V.
- Continuous drain current up to 3A.
- Typical on-resistance of approximately 3.6Ω.
- SuperMESH™ technology for improved efficiency.
- Built-in Zener protection for gate safety.
Specifications
| Parameter | Details |
|---|---|
| Transistor Type | N-Channel MOSFET |
| Drain-Source Voltage (VDS) | 900V |
| Continuous Drain Current (ID) | 3A |
| Power Dissipation (PD) | 25W |
| Drain-Source On-Resistance (RDS(on)) | 3.6Ω (typ.) |
| Gate-Source Voltage (VGS) | ±30V |
| Gate Threshold Voltage (VGS(th)) | 2V–4.5V |
| Total Gate Charge (Qg) | 22.7nC |
| Input Capacitance (Ciss) | 590pF |
| Package | TO-220F |
| Mounting Type | Through Hole |
| Operating Temperature Range | -55°C to 150°C |
| Number of Pins | 3 |

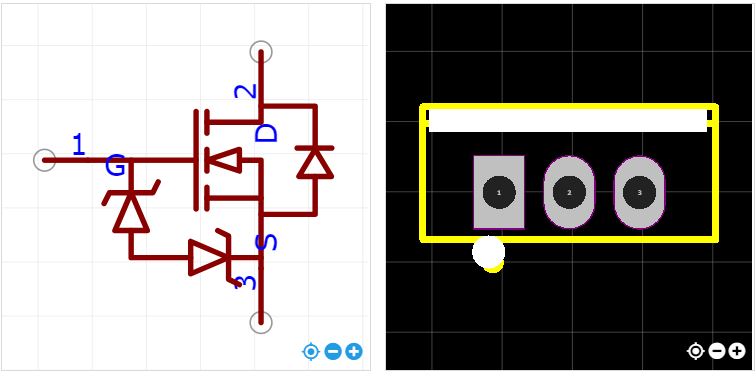

Footprint
Applications
- Switching power supplies.
- Offline AC-DC converters.
- LED lighting drivers.
- Power adapters and chargers.
- High-voltage switching circuits.
- Power factor correction (PFC) circuits.
- Industrial power control systems.
- General high-voltage power electronics.
Package Contents
- 1 x P3NK90ZFP MOSFET Transistor N-channel 900V 3A 25W 3.6Ω TO-220F
