Power Adapter 48V 2A with Dual Jack (5.5×2.5mm)

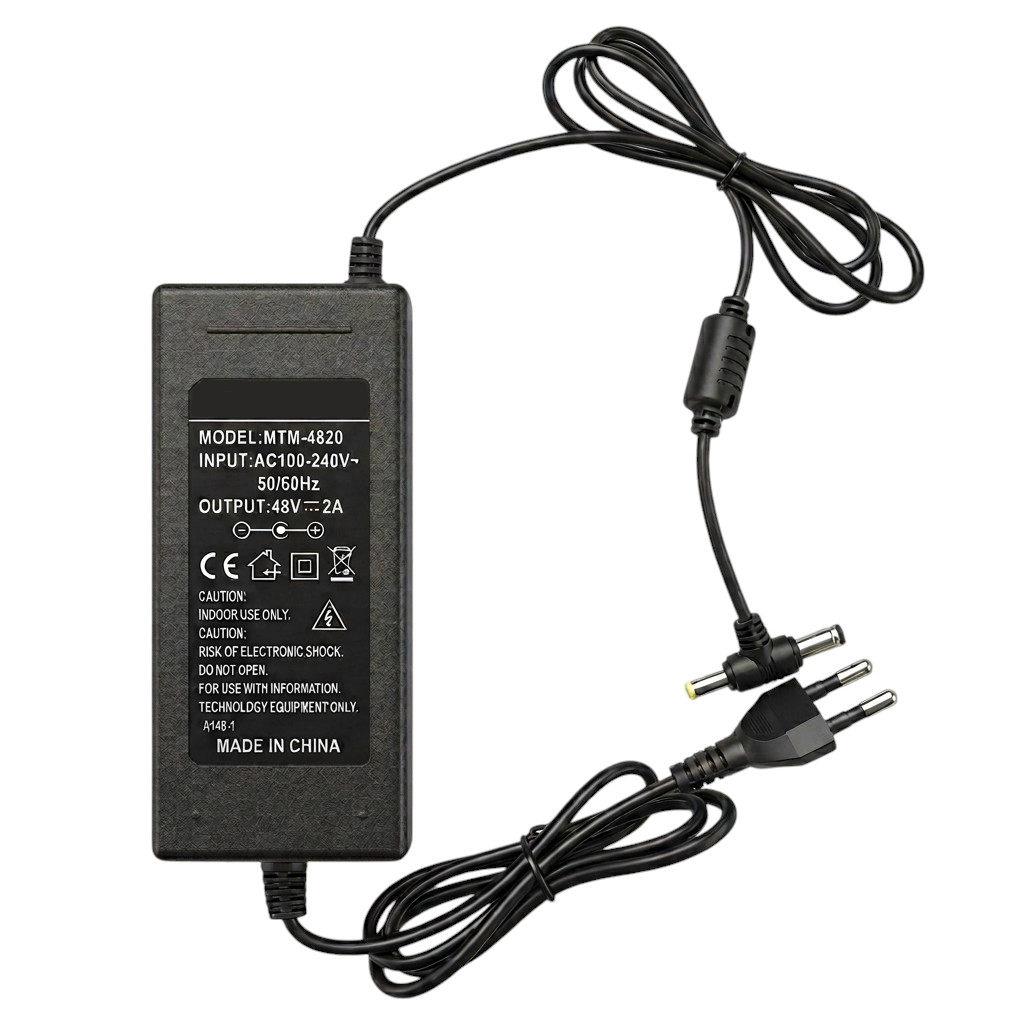

A compact, switch‑mode desktop/wall power adapter that delivers a regulated 48V DC output at up to 2A. It accepts a wide AC 100–240V, 50/60Hz mains input, making it suitable for use on most power grids worldwide. The DC output cable terminates in a unique T‑shaped dual barrel connector, giving you two common plug sizes on one cable — 4.0×1.7 mm and 5.5×2.5 mm — so a single adapter can fit devices with either socket. The output lead is fitted with a ferrite core to help suppress electrical noise, and the unit carries a center‑positive polarity configuration. Intended for indoor use with information‑technology equipment.
Features
- Stable 48V DC output rated at 2A for reliable, continuous operation.
- Universal / wide‑range AC input (100–240V ~, 50/60Hz)

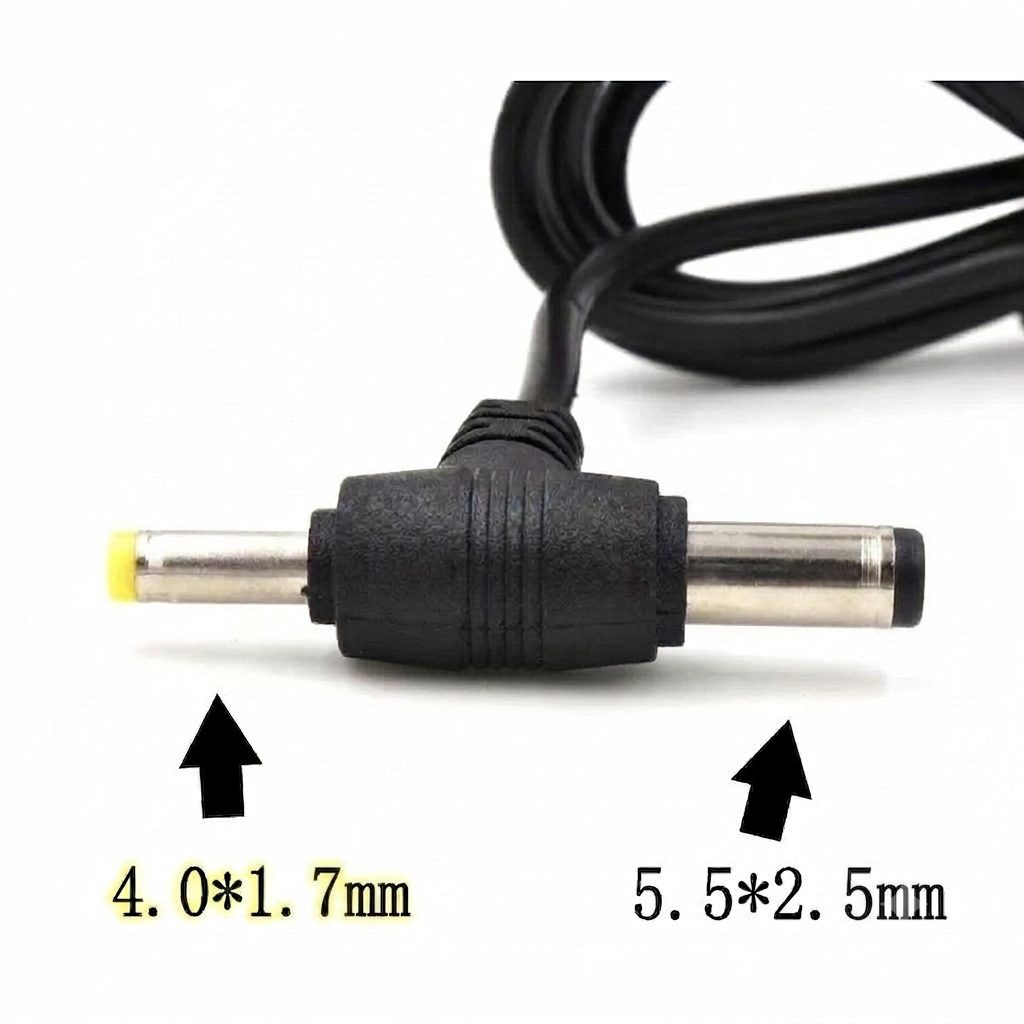

- Dual‑size DC output connector on a single cable:
- 4.0 × 1.7 mm barrel plug (yellow‑tipped)
- 5.5 × 2.5 mm barrel plug (black‑tipped)
- Double‑insulated (Class II) construction
- CE marked and compliant with indoor‑use
- LED Indicator
Specifications
| Parameter | Value |
|---|---|
| Product type | AC–DC power adapter (switching type) |
| Input voltage | AC 100–240 V ~ |
| Input frequency | 50 / 60 Hz |
| Output voltage | 48 V DC |
| Output current | 2 A |
| Max. output power | 96 W (48 V × 2 A, calculated) |
| DC polarity | Center-positive (+) |
| DC connector 1 | 4.0 mm (outer) × 1.7 mm (inner) – yellow tip |
| DC connector 2 | 5.5 mm (outer) × 2.5 mm (inner) – black tip |
| Connector style | T-shaped dual barrel head |
| AC plug type | 2-pin round (Euro-style) plug |
| Output cable feature | Integrated ferrite core (noise filter) |
| Insulation class | Class II (double-insulated) |
| Housing colour / finish | Black, textured |
| Intended environment | Indoor use only |
| DC Cable Length | 70 cm |
| AC Cable Length | 70 cm |
| Weight | 200 g |
| Adapter Dimensions | 59 x 137 mm |
| Country of origin | Made in China |
Applications
- Indoor Information Technology (IT) equipment requiring a 48V DC supply.
- Any compatible electronic device that requires 48V DC at up to 2A.
Package Content
- 1 x Power Adapter 48V 2A with Dual Jack (5.5×2.5mm)
