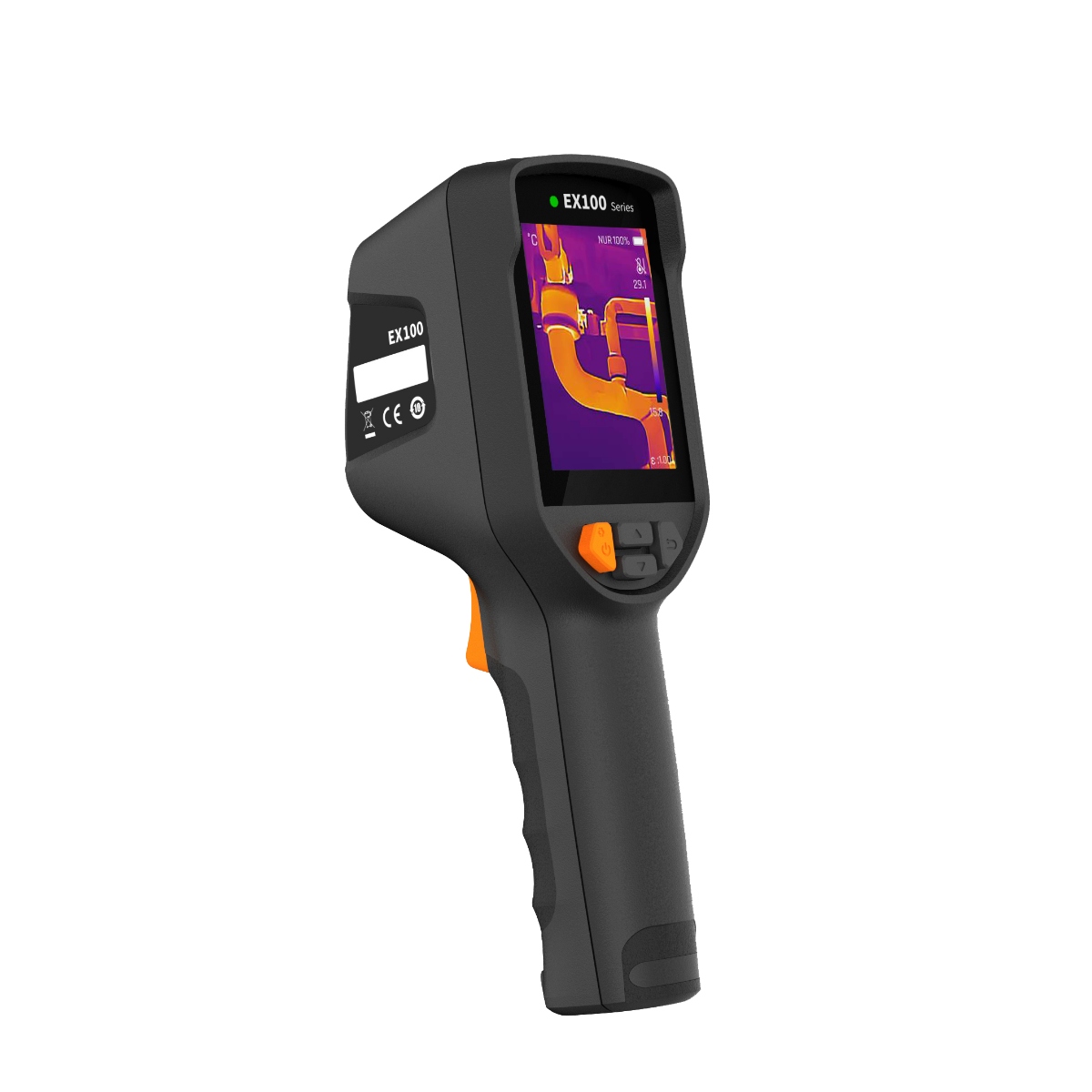

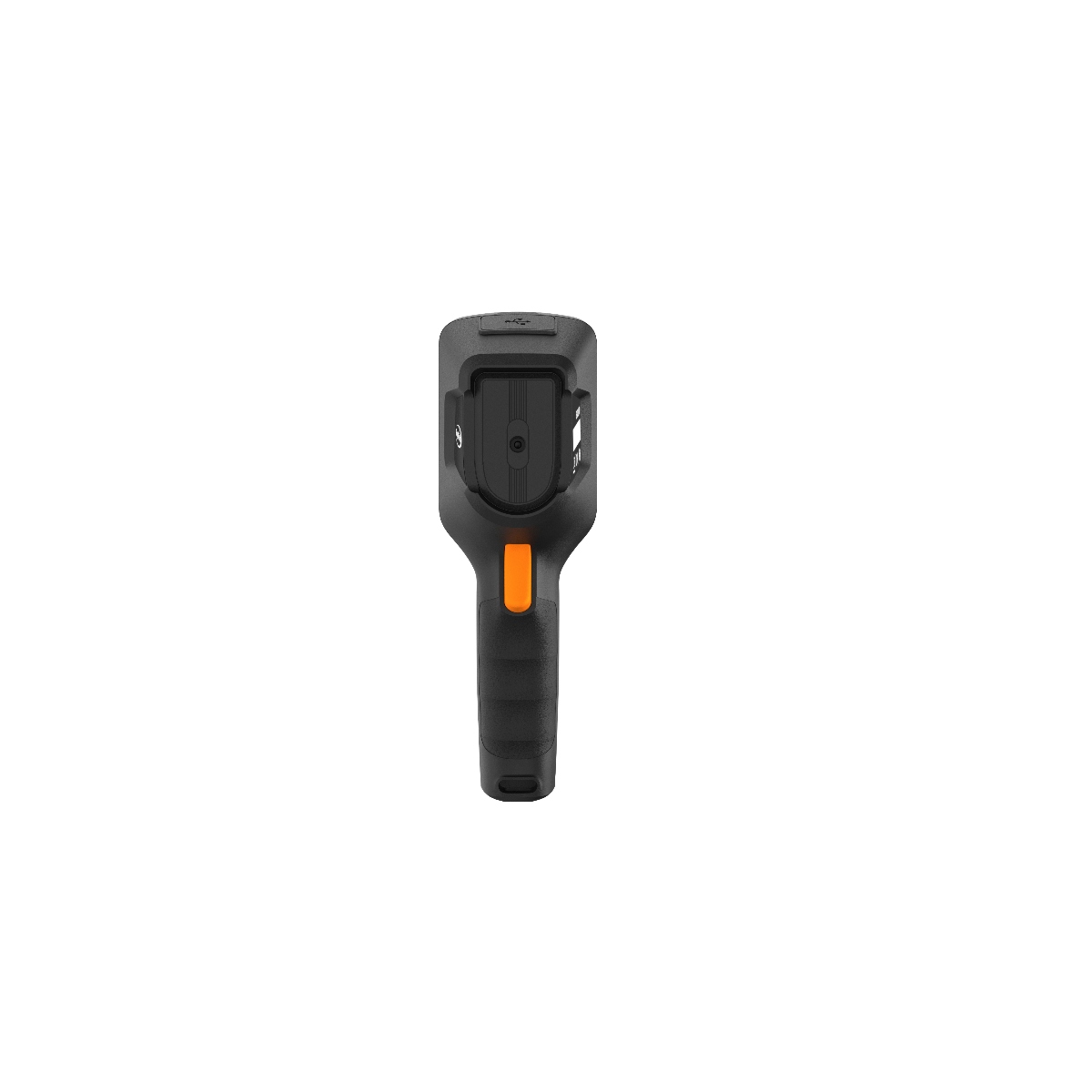

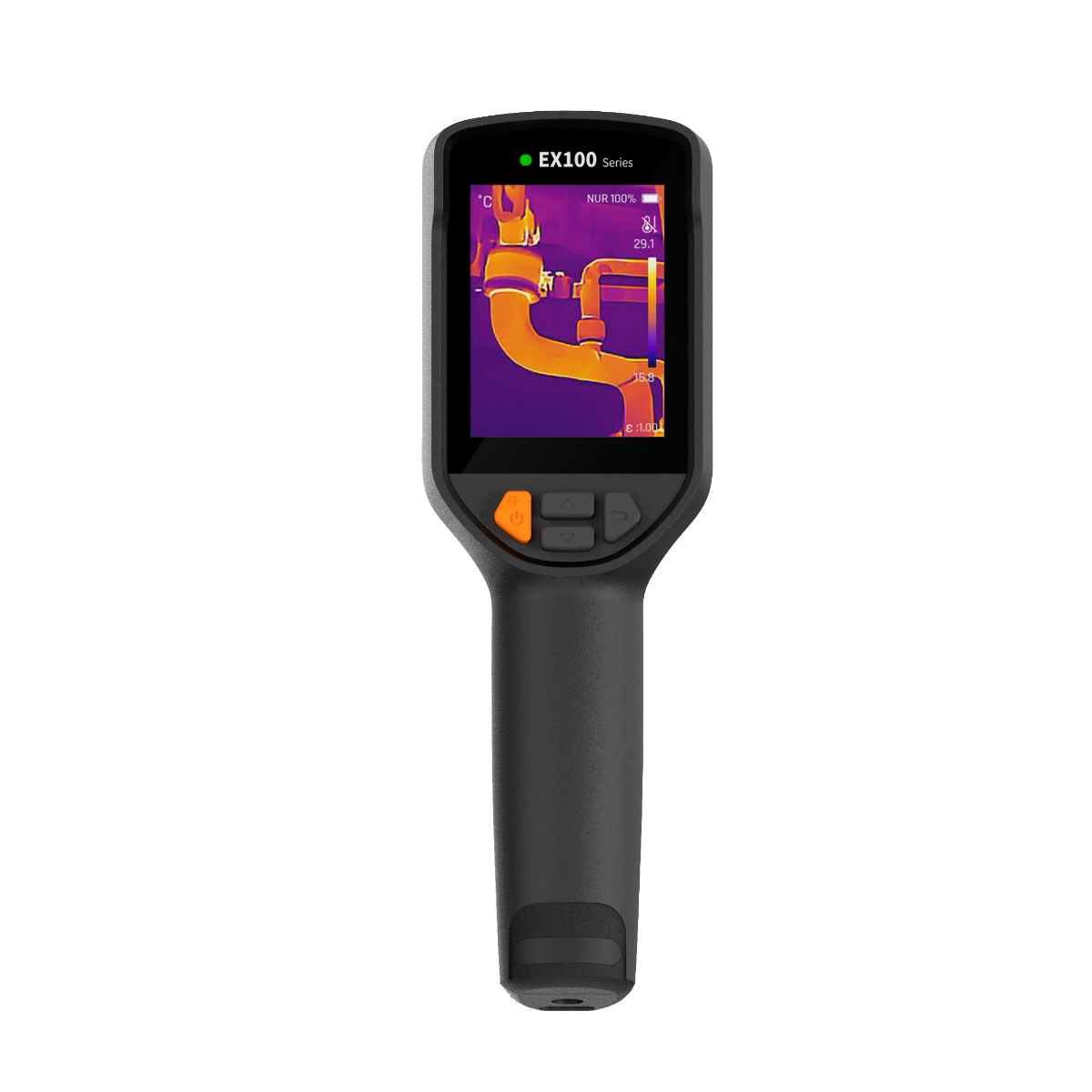

Raythink EX100 Handheld Infrared Thermal Imager
Raythink EX100 Handheld infrared thermal imager is a compact inspection tool designed for electrical diagnostics, HVAC leak detection, and automotive maintenance. According to the official Raythink product page, the EX100 combines a 160 x 120 infrared detector with AI real-time super resolution to 320 x 240, giving users clearer thermal detail in a practical handheld format.
The EX100 is built for routine temperature inspection with a -20C to 550C measurement range, 40mK thermal sensitivity, and 25Hz refresh rate. It includes a 2.8-inch 240 x 320 display, onboard video recording, UVC video transmission with temperature data, and USB connectivity for PC-side analysis, making it a solid fit for maintenance teams that need portable thermal imaging without unnecessary complexity.
Features:
- 160 x 120 infrared detector: Captures thermal information for everyday industrial and maintenance inspection tasks.

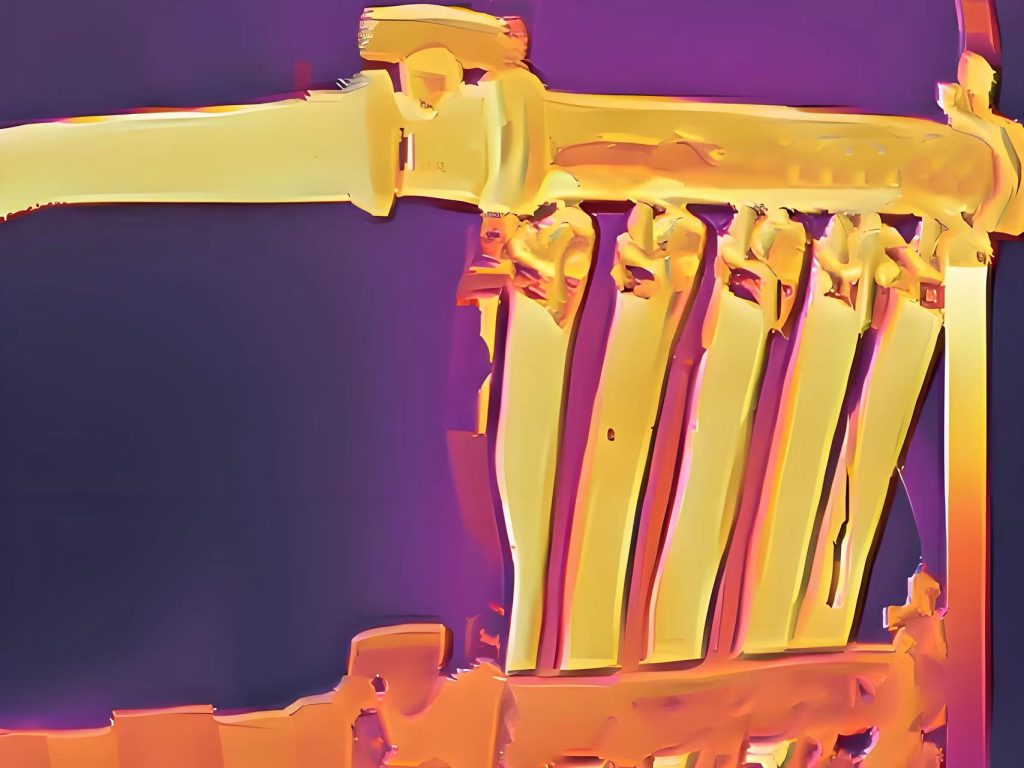

- AI super resolution to 320 x 240: Improves visual clarity and thermal detail presentation.
- 40mK sensitivity: Helps reveal subtle temperature differences during troubleshooting.
- 2.8-inch integrated display: Provides direct on-device thermal viewing with 240 x 320 resolution.
- Wide temperature range: Measures from -20C to 150C and 100C to 550C with automatic range switching.
- UVC video transmission: Streams temperature-bearing video to a PC for analysis.
- Onboard recording and alarms: Supports video recording plus full-frame high and low temperature alarms with automatic capture.
- Long battery life: 2750mAh battery with rated runtime of 10 hours or more.
Specifications:
| Parameter | Value |
|---|---|
| Detector Type | 12um uncooled vanadium oxide detector |
| Infrared Resolution | 160 x 120 |
| Super Resolution | 320 x 240 |
| Lens Focal Length | 2.6mm |
| Field of View | 40 deg x 30 deg |
| IFOV | 4.62 mrad |
| Focus Mode | Fixed focus |
| Minimum Imaging Distance | 11cm |
| Temperature Range | -20C to 150C; 100C to 550C auto range switching |
| Thermal Sensitivity | 40mK |
| Frame Rate | 25Hz |
| Accuracy | +/-2 percent or +/-2C, whichever is greater |
| Display | 2.8-inch, 240 x 320 |
| Palettes | White Hot, Black Hot, Iron Red, Lava, Rainbow, High Contrast Rainbow |
| Image Mode | Infrared |
| Measurement Analysis | Center point, max temp, min temp, 3 custom points |
| Laser Pointer | Not supported |
| Video Transmission | UVC with temperature data |
| Connection | USB |
| Storage | Built-in 8GB memory |
| Battery | 2750mAh lithium battery |
| Runtime | >=10 hours |
| Protection Rating | IP54 |
| Weight | 257g +/-10g with battery |
| Dimensions | 206.9 x 67 x 81.5mm |
Applications:
- Electrical inspection and hotspot detection.
- HVAC troubleshooting and leak detection.
- Automotive maintenance and diagnostics.
- General industrial temperature inspection.
- Equipment inspection.
- Electronic Circuit.
Packing Included:
- Infrared thermal imager.
- USB cable.
- Certificate of conformity.
- Calibration certificate.
- Lanyard.
