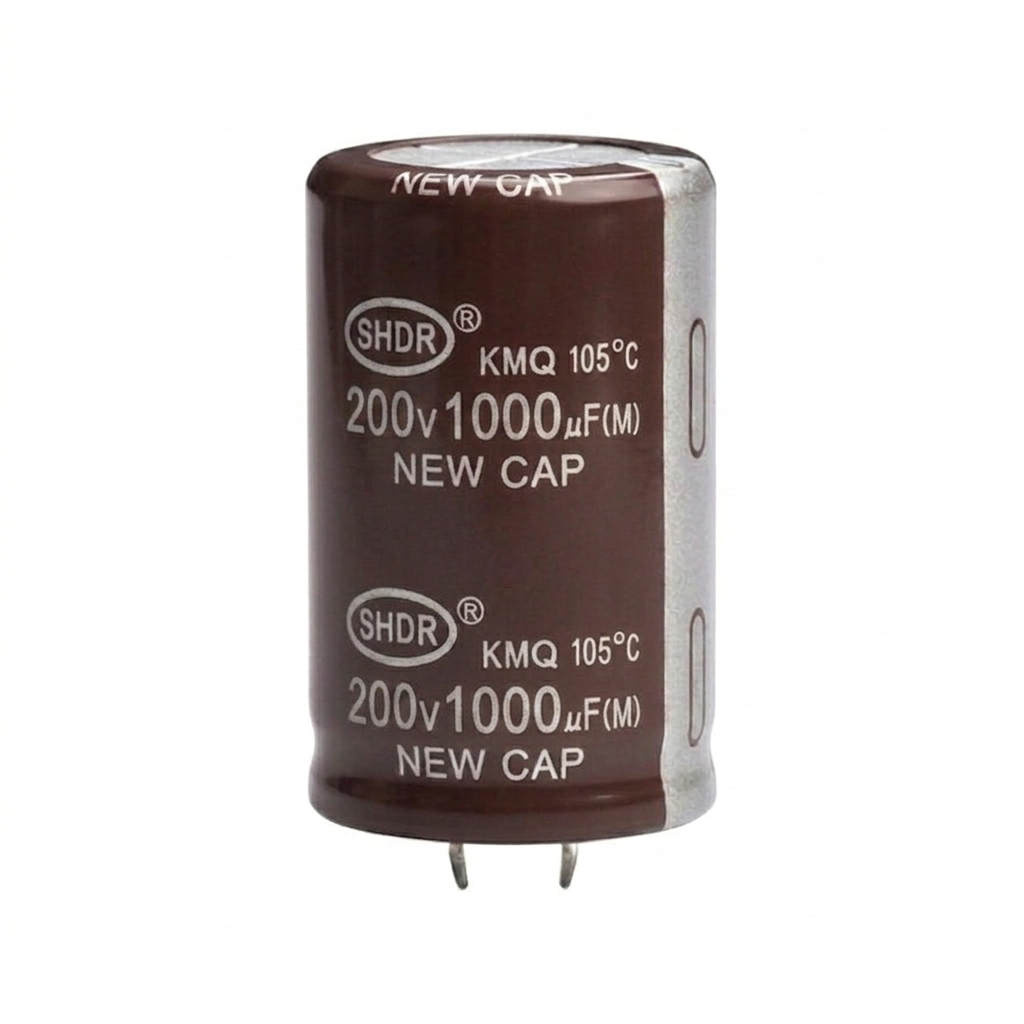

SHDR Aluminum Electrolytic Capacitor 1000uF 200V 30x45mm
SHDR Aluminum Electrolytic Capacitor 1000µF 200V 30x45mm: High-voltage polarized capacitor for power filtering and inverters in a compact radial package
80.00 EGP
Buy NowSHDR Aluminum Electrolytic Capacitor 1000UF 200V
SHDR Aluminum Electrolytic Capacitor 1000UF 200V 30x45mm is a radial lead polarized capacitor engineered for high-voltage filtering, smoothing, and energy storage applications. It is designed to provide stable capacitance characteristics and dependable operation in power supply circuits, industrial electronics, motor control systems, and high-voltage equipment.
Features:
- High-capacitance aluminum electrolytic capacitor.
- 1000µF capacitance value.
- 200VDC rated voltage.
- Radial through-hole mounting.
- Compact 30x45mm package size.
- High-temperature operation up to 105°C.
- Polarized capacitor design.
- Suitable for high-voltage applications.
Specifications:
| Parameter | Value |
|---|---|
| Capacitance | 1000μF. |
| Rated Voltage | 200VDC. |
| Capacitance Tolerance | ±20%. |
| Construction | Radial Can. |
| Mounting Type | Snap In. |
| Can Diameter | 30mm. |
| Can Height | 45mm. |
| Lead Spacing | Standard Radial Pitch. |
| Polarity | Polar. |
| Temperature Rating | 105°C. |
| Series | KMQ. |
| Brand | SHDR. |
| Sleeve Color | Brown. |
| Origin | China. |

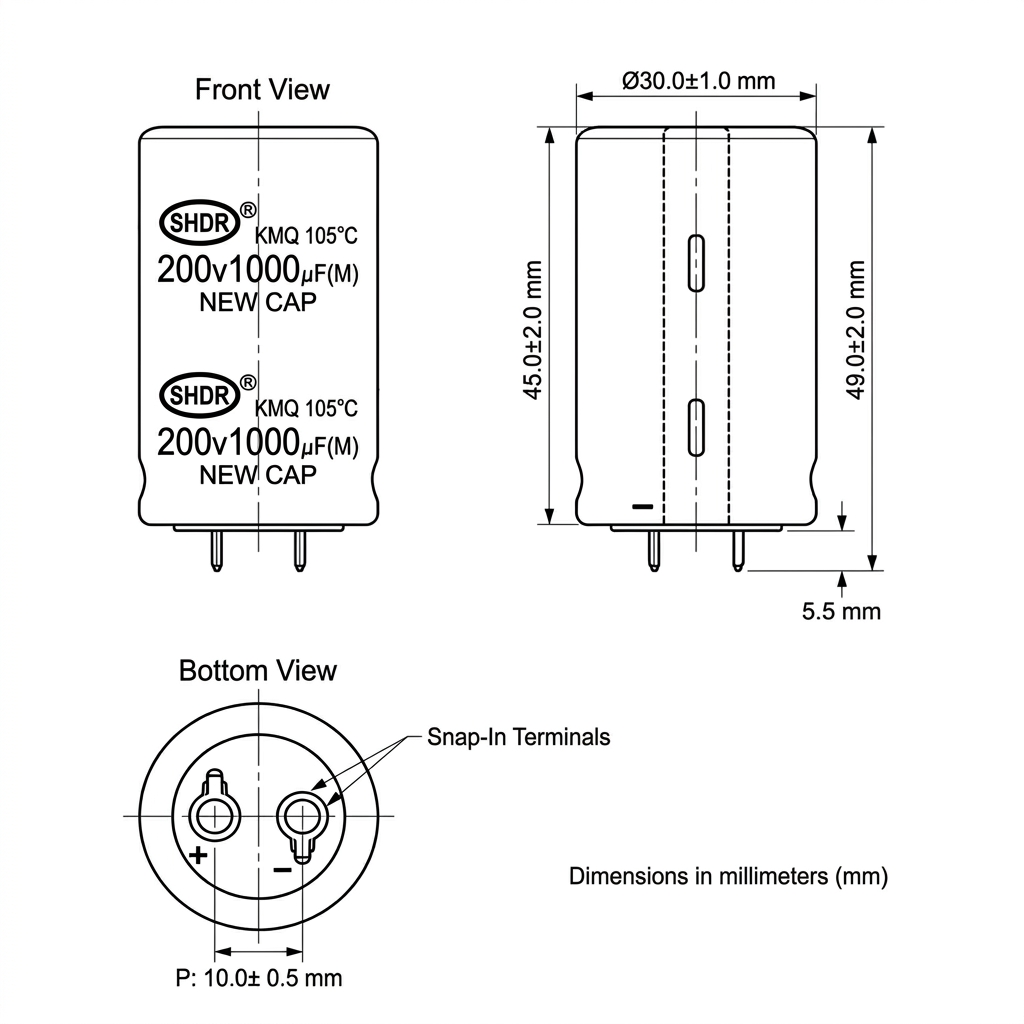

Dimension:
Applications:
- Input and output filtering in AC-DC switching power supplies.
- Bulk energy storage in PFC and inverter DC link circuits.
- Smoothing capacitors in high-voltage linear and switching regulators.
- Audio amplifier power supply filtering and decoupling.
- Industrial control system power supply conditioning.
- LED driver and lighting power supply energy storage.
- Uninterruptible power supply (UPS) battery charging circuits.
- Welding equipment and motor drive DC bus capacitance.
- Automotive auxiliary power supply applications.
- General-purpose high-voltage DC filtering and energy storage.
Package Include:
- 1x SHDR Aluminum Electrolytic Capacitor 1000UF 200V 30x45mm
