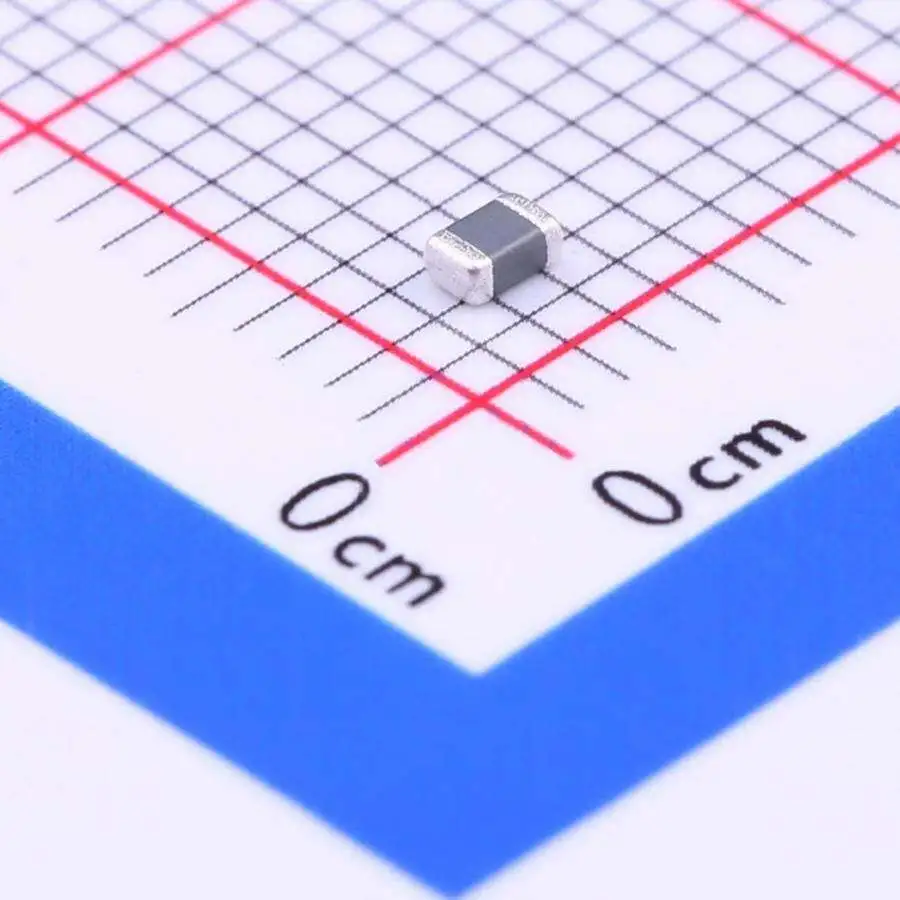

SMD Ferrite Beads 38Ω @ 100MHz ±25 0805
The SMD Ferrite Beads 38Ω @100MHz ±25% 0805 is a compact surface-mount electromagnetic interference (EMI) suppression component designed for high-frequency noise filtering in modern electronic circuits. This ferrite bead provides effective impedance at high frequencies while maintaining low DC resistance, allowing stable current flow with minimal signal loss.
Designed in a standard 0805 surface-mount package, this ferrite bead is ideal for space-constrained PCB layouts and automated assembly processes. With an impedance rating of 38Ω at 100MHz and ±25% tolerance, it ensures reliable suppression of high-frequency noise in power supply lines and signal paths.
Features:
- High impedance of 38Ω at 100MHz for effective EMI suppression.
- Compact 0805 SMD package for space-saving PCB layouts.
- ±25% impedance tolerance for stable filtering performance.
- Low DC resistance for minimal signal loss.
Specifications:
| Parameter | Value |
|---|---|
| Component Type | Ferrite Bead |
| Mounting Type | SMD |
| Package Size | 0805 |
| Impedance | 38Ω@100MHz |
| Impedance Tolerance | ±25% |
| Frequency Reference | 100MHz |
| Material | Ferrite |
| Compliance | RoHS |
Applications:
- Power supply noise filtering.
- EMI suppression in digital circuits.
- RF and communication devices.
- Microcontroller and embedded systems.
- Consumer electronics.
- Industrial control systems.
- Signal line noise filtering.
Package Include:
1x SMD Ferrite Beads 38Ω @ 100MHz ±25 0805
