SS8050 Y1 BJT SMD NPN Transistor 25V 1.5A 300mW SOT-23
The SS8050 Y1 BJT SMD NPN Transistor is a general-purpose bipolar junction transistor designed for switching, amplification, driver, and control applications. It provides a collector-emitter voltage rating of 25V and a continuous collector current rating of 1.5A, making it suitable for electronic circuits requiring a compact NPN transistor with moderate current-handling capability.
Features:
- NPN bipolar junction transistor.
- SS8050 transistor type.
- Y1 marking.
- 25V collector-emitter voltage rating.
- 1.5A continuous collector current.
- 300mW collector power dissipation.
Specifications:
| Parameter | Value |
|---|---|
| Component Type | NPN Bipolar Junction Transistor |
| Transistor Type | NPN |
| Model Number | SS8050 Y1 |
| Collector-Emitter Voltage VCEO | 25V |
| Collector-Base Voltage VCBO | 40V |
| Collector Current IC | 1.5A |
| Power Dissipation PC | 300mW |
| DC Current Gain hFE | 400 maximum at 100mA |
| Collector-Emitter Saturation Voltage VCE(sat) | 500mV maximum at 800mA |
| Emitter-Base Voltage VEBO | 5V |
| Transition Frequency fT | 100MHz |
| Collector Cutoff Current ICBO | 100nA maximum |
| Package | SOT-23 |
| Number of Transistors | 1 NPN |
| Junction Temperature | 150℃ |
| Operating Temperature | -55℃ to +150℃ |
| Mounting Type | Surface Mount |

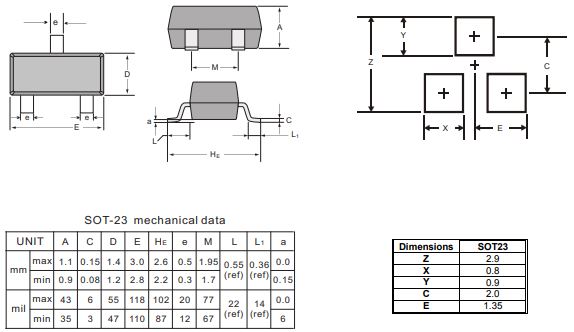

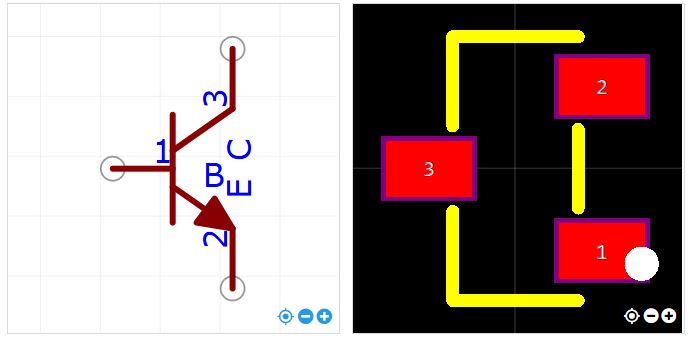

Foot print:
Applications:
- General-purpose transistor switching.
- Low-power switching circuits.
- Signal amplification.
- Audio-frequency driver stages.
- Transistor driver circuits.
- Signal-processing circuits.
- Interface circuits.
- Control circuits.
- Embedded electronic systems.
- Consumer electronic equipment.
- LED driver circuits.
- Compact surface-mount PCB designs.
Package Include:
1x SS8050 Y1 BJT SMD NPN Transistor 25V 1.5A 300mW SOT-23.
