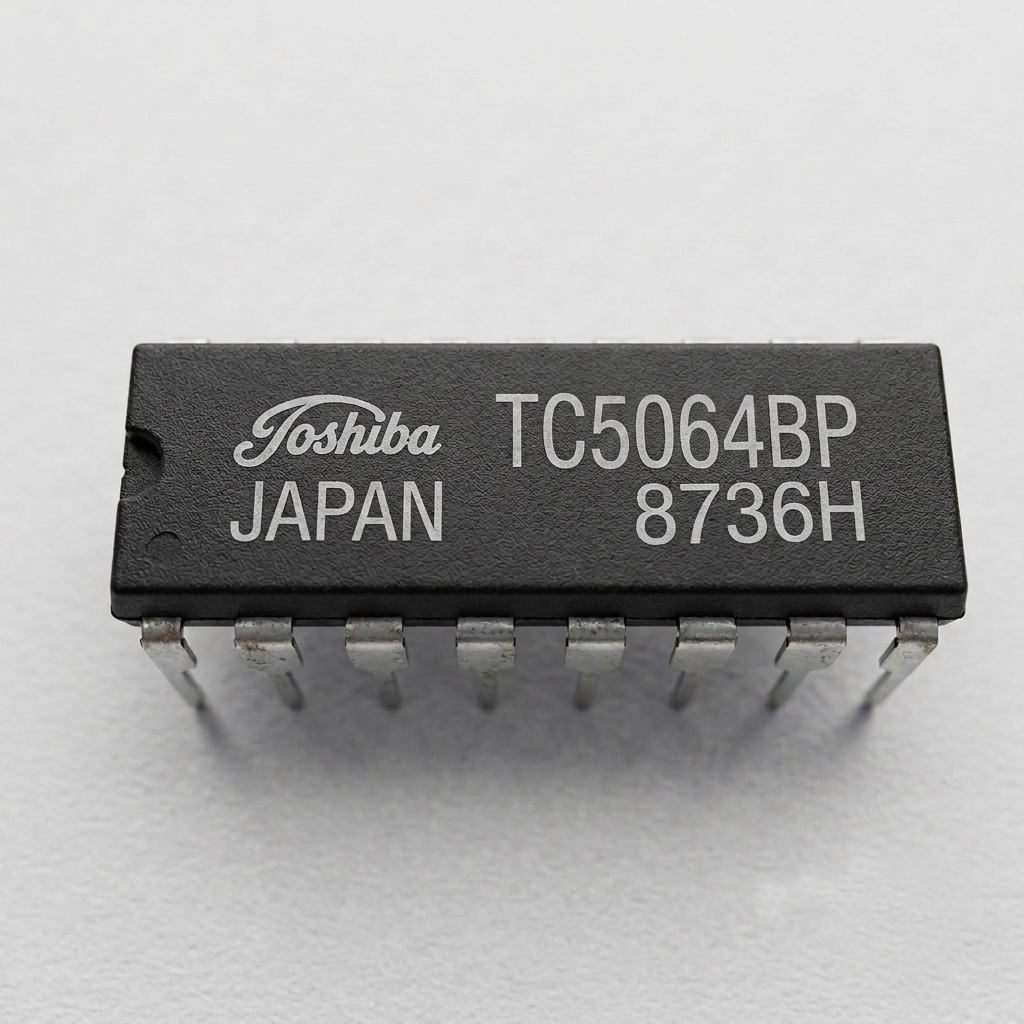

Toshiba TC5064BP Hex High-Voltage Buffer with Inhibit 3V to 18V 300mW DIP-16
The TC5064BP is a C2MOS digital integrated circuit containing six non-inverting buffer circuits with open-drain structure outputs. It features two common INHIBIT inputs (AIN, BIN) and is built using high-breakdown-voltage P-channel MOS FETs capable of withstanding up to -50V.
Designed for high-voltage output capabilities, the TC5064BP is an ideal solution for driving fluorescent display tubes and interfacing low-voltage logic with high-voltage MOS LSI circuits.
Features
- Type: Hex High Voltage Buffer (Non-Inverting Type)
- High Output Voltage Capability: Features P-channel MOS FETs with open-drain structure capable of -50V breakdown voltage
- Control Inputs: Includes two common INHIBIT inputs (AIN, BIN)
- Output Impedance Control: Supports High-Impedance (HZ) state via INHIBIT pin configurations
- Wide Operating Voltage Range: 3V to 18V
- Package: 16-pin Dual In-line Package (DIP-16 / 3D16A-P)
Specifications
1. Absolute Maximum Ratings (Ta = 25°C)
| Characteristic | Symbol | Rating | Unit |
|---|---|---|---|
| DC Supply Voltage | VDD | VSS – 0.5 ~ VSS + 20 | V |
| Input Voltage | VIN | VSS – 0.5 ~ VDD + 0.5 | V |
| Output Voltage | VOUT | VDD – 50 ~ VDD + 0.5 | V |
| Power Dissipation | PD | 300 | mW |
| DC Input Current | IIN | ±10 | mA |
| Storage Temperature Range | Tstg | -65 ~ 150 | °C |
| Lead Temp. / Time | Tsol | 260°C · 10sec | — |
2. Recommended Operating Conditions
| Characteristic | Symbol | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| Supply Voltage | VDD | 3 | — | 18 | V |
| Input Voltage | VIN | 0 | — | VDD | V |
| Operating Temperature | Topr | -40 | — | 85 | °C |
3. Key Electrical Characteristics (VSS = 0V)
- High Level Output Current (IOH): Up to -35mA (at VDD = 15V, VOH = 12V at 25°C)
- Output OFF Current (IOFF): -10µA max at VOUT = VDD – 45V (25°C)
- Quiescent Supply Current (IDD): 0.005µA (Typ. at VDD = 5V, 25°C)
- Input Capacitance (CIN): 5pF (Typ.), 7.5pF (Max)
4. Truth Table (TC5064BP)
| Input (AIN) | Input (BIN) | Input (IN) | Output (TC5064BP) |
|---|---|---|---|
| L | H | L | HZ |
| L | H | H | H |
| * | L | * | HZ |
| H | * | * | HZ |
* HZ = High Impedance | * = Don’t care
Applications
- Fluorescent Display Tube Driving Circuits: Driving digit and segment signals for VFDs.
- Logic Level Translation: Interfacing between CMOS/TTL/NMOS and PMOS circuits.
- High-Voltage MOS LSI Interfacing: Buffer stage driving for circuits operating with high negative voltages (e.g., -EV).
Package Content
- 1 x Toshiba TC5064BP Hex High-Voltage Buffer with Inhibit 3V to 18V 300mW DIP-16
