WAGO NV-F13 Panel Mount Wire Connector 1 In 3 Out

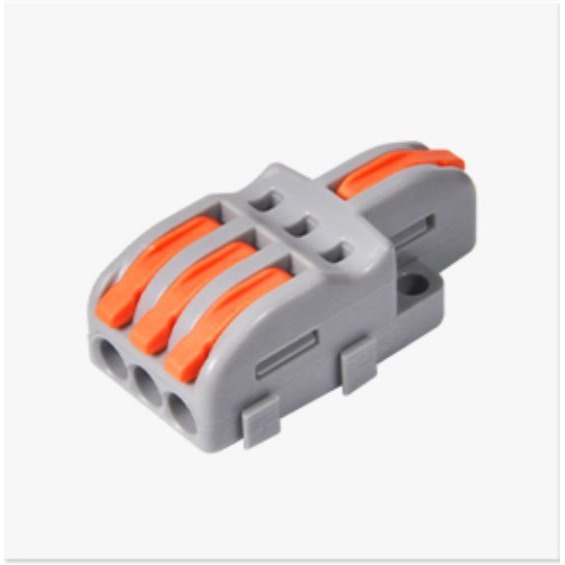

The WAGO NV-F13 Panel Mount Wire Connector 1 In 3 Out is a compact lever-operated wire connector designed to distribute one incoming wire to three outgoing wires. Its spring-lever mechanism allows quick, tool-free wire insertion and removal while providing a secure electrical connection.
Features:
- 1 In 3 Out Configuration Connects one incoming wire to three outgoing wires.
- Lever-Operated Design Orange levers provide quick and easy wire insertion and removal.
- Spring Clamp Connection Provides secure clamping without screws or soldering.
- Reusable Wires can be disconnected and reconnected as needed.
- Compact Size Suitable for installations with limited space.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Wire Connector |
| Model | NV-F13 |
| Connection Configuration | 1 In 3 Out |
| Input | 1 Wire |
| Output | 3 Wires |
| Connection Type | Lever / Spring Clamp |
| Rated Voltage | 250VAC* |
| Rated Current | 32A* |
| Wire Size | 0.08–2.5 mm²* |
| Maximum Wire Size | Up to 4.0 mm² for certain conductor types* |
| Wire Gauge | 28–14 AWG / up to 12 AWG depending on conductor type* |
| Strip Length | Approximately 10 mm* |

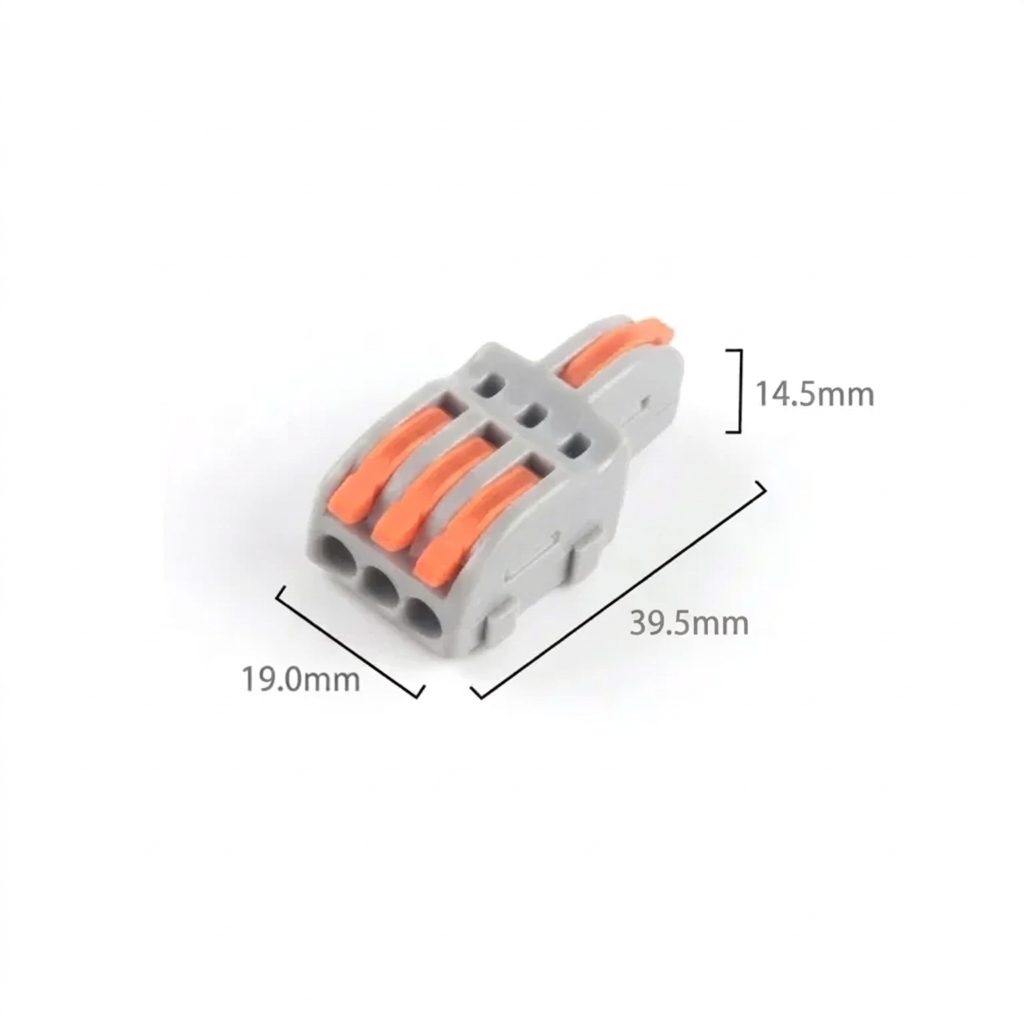

| Dimensions | Approx. 39.5 × 19.0 × 14.5 mm |
| Housing Color | Gray |
| Lever Color | Orange |
Applications:
- Electrical wire distribution
- Lighting installations
- Junction boxes
- Control panels
- Electrical cabinets
- Low-voltage wiring
- Branch and parallel wiring
- DIY electrical projects
- Compact wiring installations
- Maintenance and repair work
Package Include:
1x WAGO-NV-F13 Panel Mount Wire Connector 1 In 3 Out.
