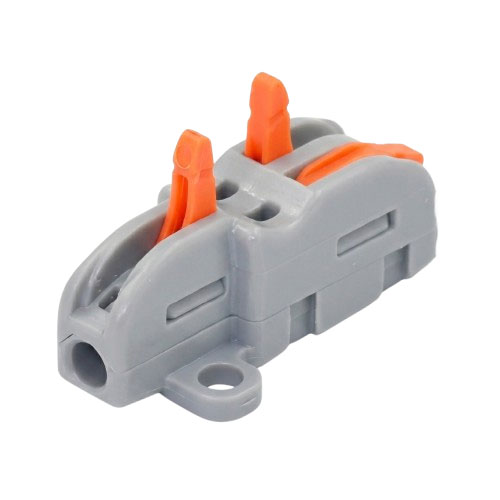

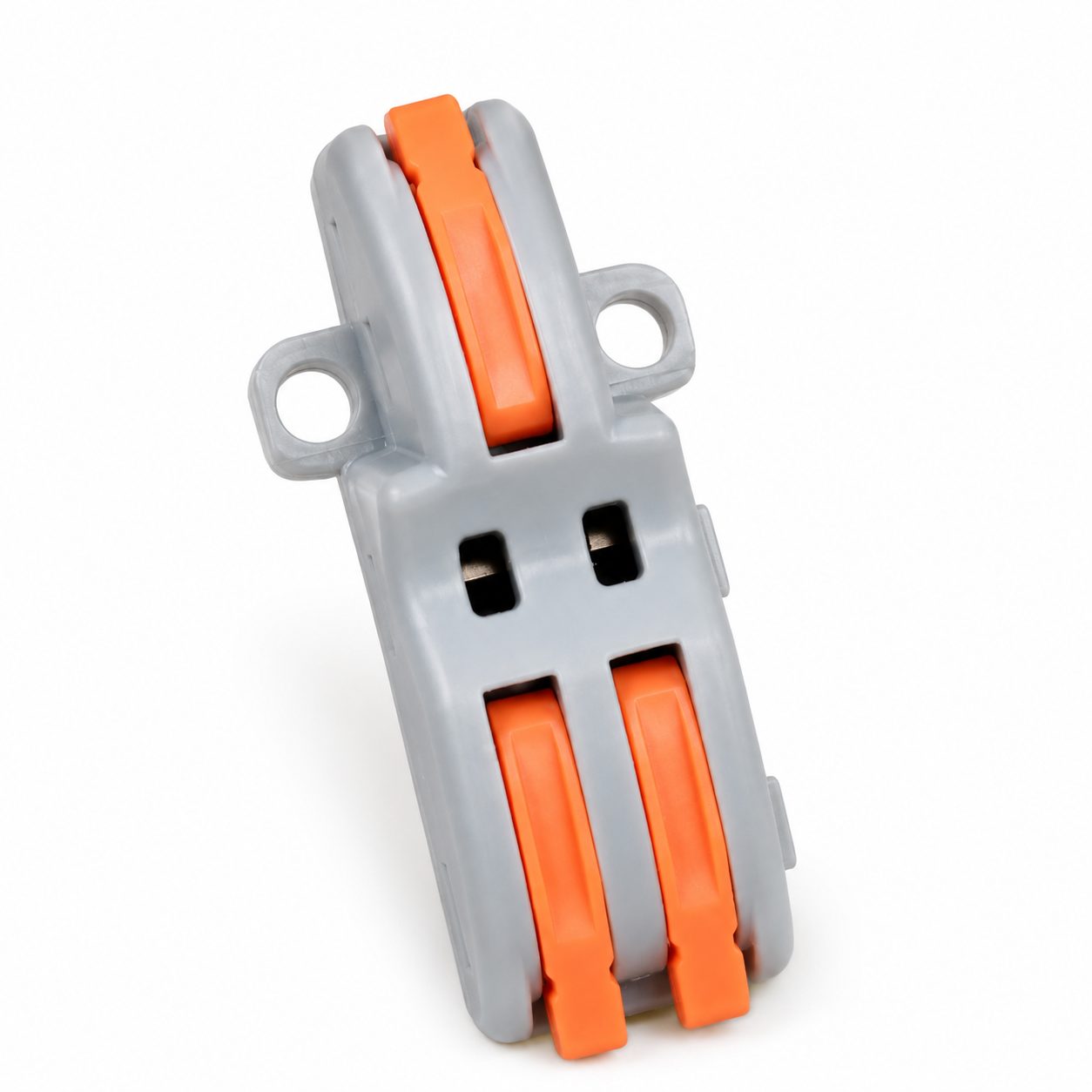

WAGO NV-F12 Panel Mount Wire Connector 1 In 2 Out
The WAGO NV-F12 Panel Mount Wire Connector (1 in 2 out) is a compact lever splitter for quick, reusable wire branching without screws or soldering
12.00 EGP
In stockSKU 3496300132423
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
WAGO NV-F12 Panel Mount Wire Connector 1 In 2 Out
The WAGO NV-F12 Panel Mount Wire Connector 1 In 2 Out is a compact lever-operated wire connector designed to distribute one incoming wire to two outgoing wires. It provides a quick and reusable method for branching electrical connections without screws or soldering.
Features:
- 1-in-2-out wire distribution configuration.
- Lever-operated spring-clamp connection.
- Supports solid, stranded, and flexible conductors.
- Supports wire sizes from 0.08–2.5mm², with up to 4.0mm² for applicable conductor types.
- Rated for up to 400VAC.
- Rated current of up to 32A.

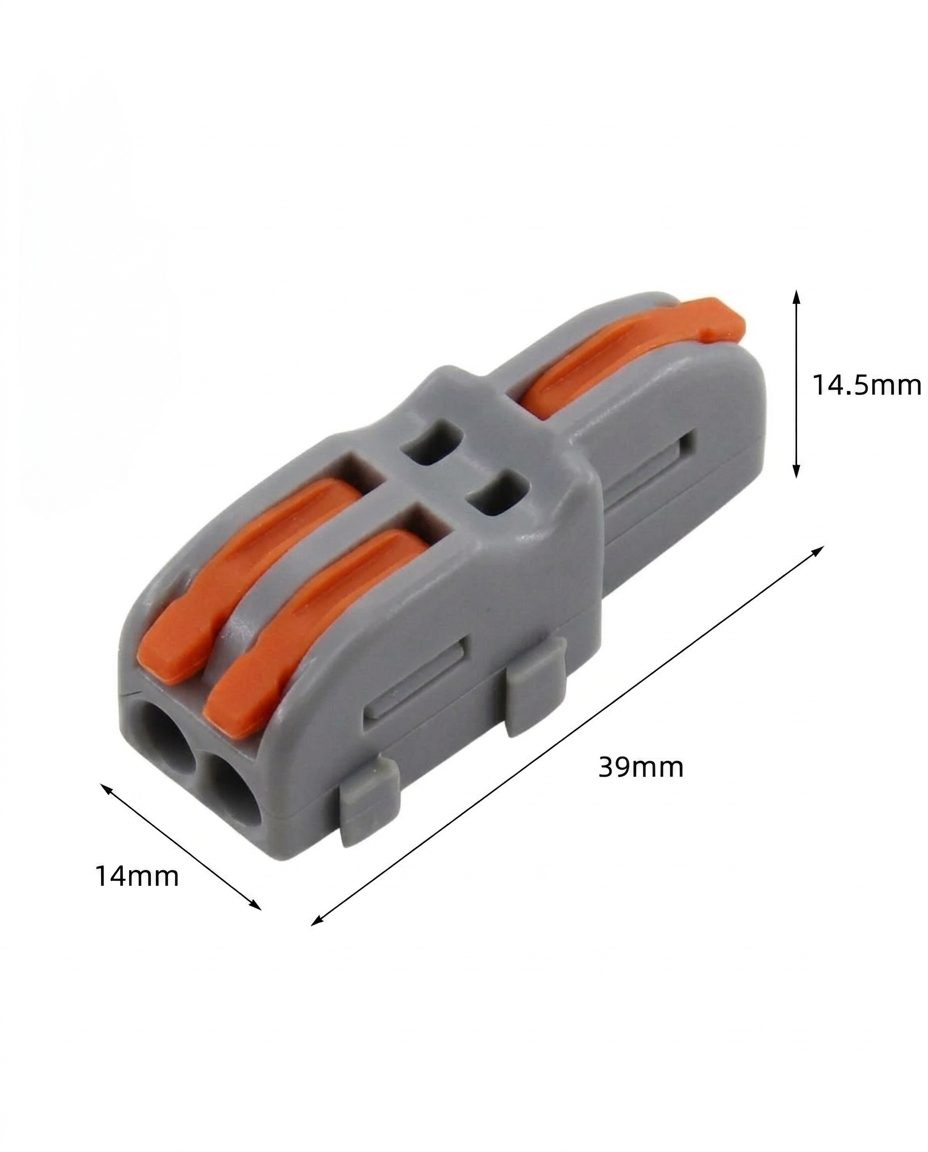

Specifications:
| Parameter | Value |
|---|---|
| Product Type | Panel Mount Wire Connector. |
| Model | NV-F12. |
| Connection Configuration | 1 In 2 Out. |
| Input | 1 Wire. |
| Outputs | 2 Wires. |
| Connection Type | Lever / Spring Clamp. |
| Rated Voltage | 400VAC. |
| Rated Current | 32A. |
| Compatible Wire Size | 0.08–2.5mm². |
| Maximum Wire Size | Up to 4.0mm² for applicable conductor types. |
| Wire Gauge Range | 28–14AWG / up to 12AWG depending on conductor type. |
| Supported Wire Types | Solid, Stranded, and Flexible Conductors. |
| Lever Color | Orange. |
| Connection Method | Spring Clamp. |
| Reusable | Yes. |
Applications:
- Lighting line distribution.
- Junction box wiring.
- Control panel connections.
- Low-voltage branching.
- Electrical maintenance.
- DIY wiring projects.
- Electrical wire distribution.
- Compact branch connections.
- Electronics and electrical prototyping.
Package Include:
1x WAGO NV-F12 Panel Mount Wire Connector 1 In 2 Out
