The Relays

Contents List

1. Introduction

Relays are important components in electrical and electronic systems because they allow one circuit to control another circuit. They are widely used in industrial automation, home appliances, automotive electronics, robotics, power control, and smart home projects.

A relay can enable a low-power control signal to switch a separate electrical load, such as a lamp, fan, pump, or motor. Depending on its design, it can also provide electrical isolation between the control circuit and the switched circuit.

Although relays may appear simple, choosing and using them correctly requires an understanding of their operating principles, contact configurations, coil requirements, switching ratings, and load characteristics.

In this article, we will explore the main types of relays, explain how they operate, compare their advantages and limitations, and examine practical methods for selecting, connecting, and troubleshooting them.

2. What Is a Relay?

A relay is an electrically controlled switching device that opens, closes, or changes the connections of an electrical circuit in response to a control signal.

In a conventional electromechanical relay, applying voltage to a coil produces a magnetic field that moves an internal mechanism and changes the state of its contacts. When the coil is de-energized, a spring or another mechanism usually returns the contacts to their normal position.

Relays are useful when a control circuit cannot directly handle the voltage or current required by a load. For example, a microcontroller can operate a suitable relay driver, which then controls a relay that switches a separate load circuit.

It is important to understand that a relay does not automatically make every circuit safe. Its contact ratings, insulation, construction, wiring, and installation must all be appropriate for the application.

3. How Does a Relay Work?

An electromechanical relay operates through the interaction of an electromagnetic coil and a movable contact mechanism.

Step 1: Applying the Control Signal

When the specified voltage is applied to the relay coil, current flows through the winding and generates a magnetic field.

Step 2: Activating the Mechanism

The magnetic field attracts an internal armature, causing the movable contacts to change position. Depending on the relay configuration, the contacts may close an open circuit or open a closed circuit.

Step 3: Switching the Load

The changed contact state controls the electrical path connected to the relay output. This allows the relay to switch a load independently of the coil’s control signal, within the relay’s specified ratings.

Step 4: Returning to the Normal State

When the coil voltage is removed, the magnetic field decreases and the return mechanism restores the contacts to their normal state in a conventional non-latching relay.

A latching relay behaves differently because it retains its last switching state without continuously energizing its coil.

For example, a temperature controller may activate a relay when a measured temperature exceeds a setpoint. The relay can then switch a compatible heating or cooling circuit according to the controller’s logic.

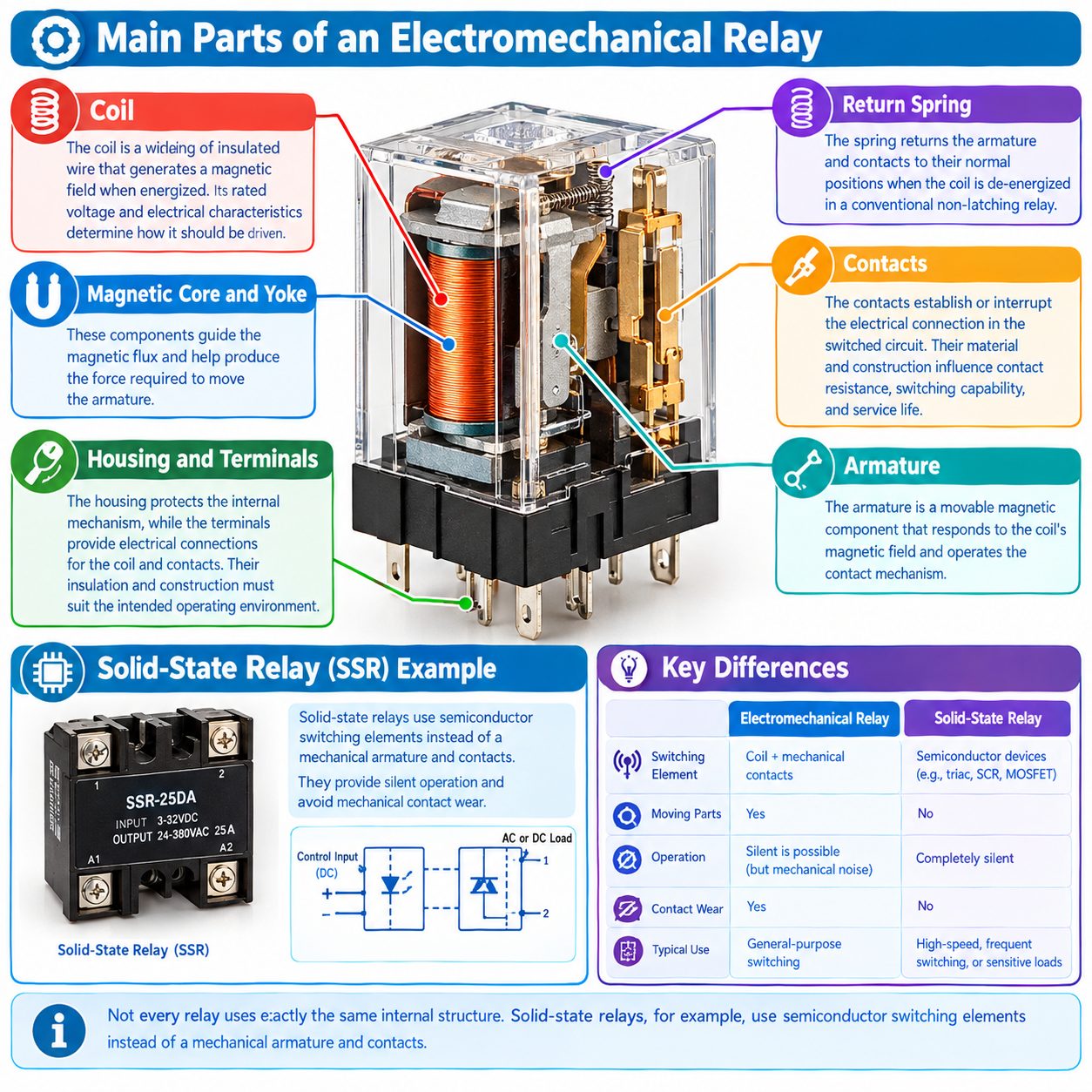

4. Main Parts of an Electromechanical Relay

A conventional electromechanical relay contains several components that work together to perform the switching operation.

Coil:

The coil is a winding of insulated wire that generates a magnetic field when energized. Its rated voltage and electrical characteristics determine how it should be driven.

Magnetic Core and Yoke:

These components guide the magnetic flux and help produce the force required to move the armature.

Armature:

The armature is a movable magnetic component that responds to the coil’s magnetic field and operates the contact mechanism.

Contacts:

The contacts establish or interrupt the electrical connection in the switched circuit. Their material and construction influence contact resistance, switching capability, and service life.

Return Spring:

The spring returns the armature and contacts to their normal positions when the coil is de-energized in a conventional non-latching relay.

Housing and Terminals:

The housing protects the internal mechanism, while the terminals provide electrical connections for the coil and contacts. Their insulation and construction must suit the intended operating environment.

Not every relay uses exactly the same internal structure. Solid-state relays, for example, use semiconductor switching elements instead of a mechanical armature and contacts.

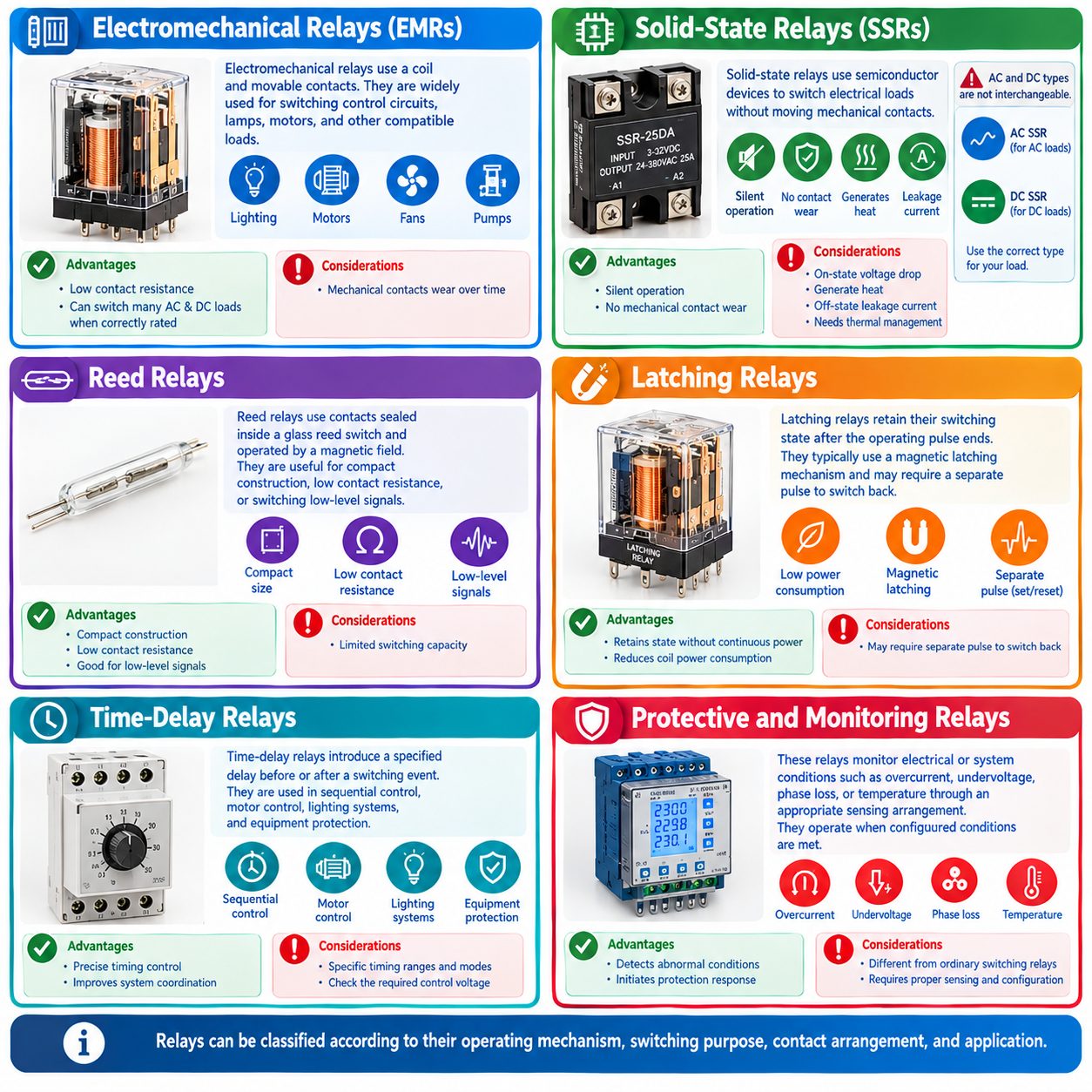

5. Types of Relays

Relays can be classified according to their operating mechanism, switching purpose, contact arrangement, and application.

Electromechanical Relays (EMRs)

Electromechanical relays use a coil and movable contacts. They are widely used for switching control circuits, lamps, motors, and other compatible loads.

Their advantages include low contact resistance and the ability to switch many types of AC and DC loads when correctly rated. Their mechanical contacts, however, wear over time.

Solid-State Relays (SSRs)

Solid-state relays use semiconductor devices to switch electrical loads without moving mechanical contacts.

They provide silent operation and avoid mechanical contact wear. However, they can have an on-state voltage drop, generate heat, exhibit off-state leakage current, and require appropriate thermal management.

AC and DC solid-state relays are not necessarily interchangeable. The output technology must match the load and its switching requirements.

Reed Relays

Reed relays use contacts sealed inside a small glass reed switch and operated by a magnetic field. They are useful in applications that require compact construction, low contact resistance, or switching of low-level signals.

Their switching capacity is limited by their particular design.

Latching Relays

Latching relays retain their switching state after the operating pulse ends. They typically use a magnetic latching mechanism and may require a separate pulse to switch back.

They are useful in applications where reducing continuous coil power consumption is important.

Time-Delay Relays

Time-delay relays introduce a specified delay before or after a switching event. They are used in sequential control, motor control, lighting systems, and equipment protection.

Protective and Monitoring Relays

These relays monitor electrical or system conditions such as overcurrent, undervoltage, phase loss, or temperature through an appropriate sensing arrangement. They operate when configured conditions are met.

Protective relays differ from ordinary switching relays because their main purpose is detecting abnormal conditions and initiating a protective response.

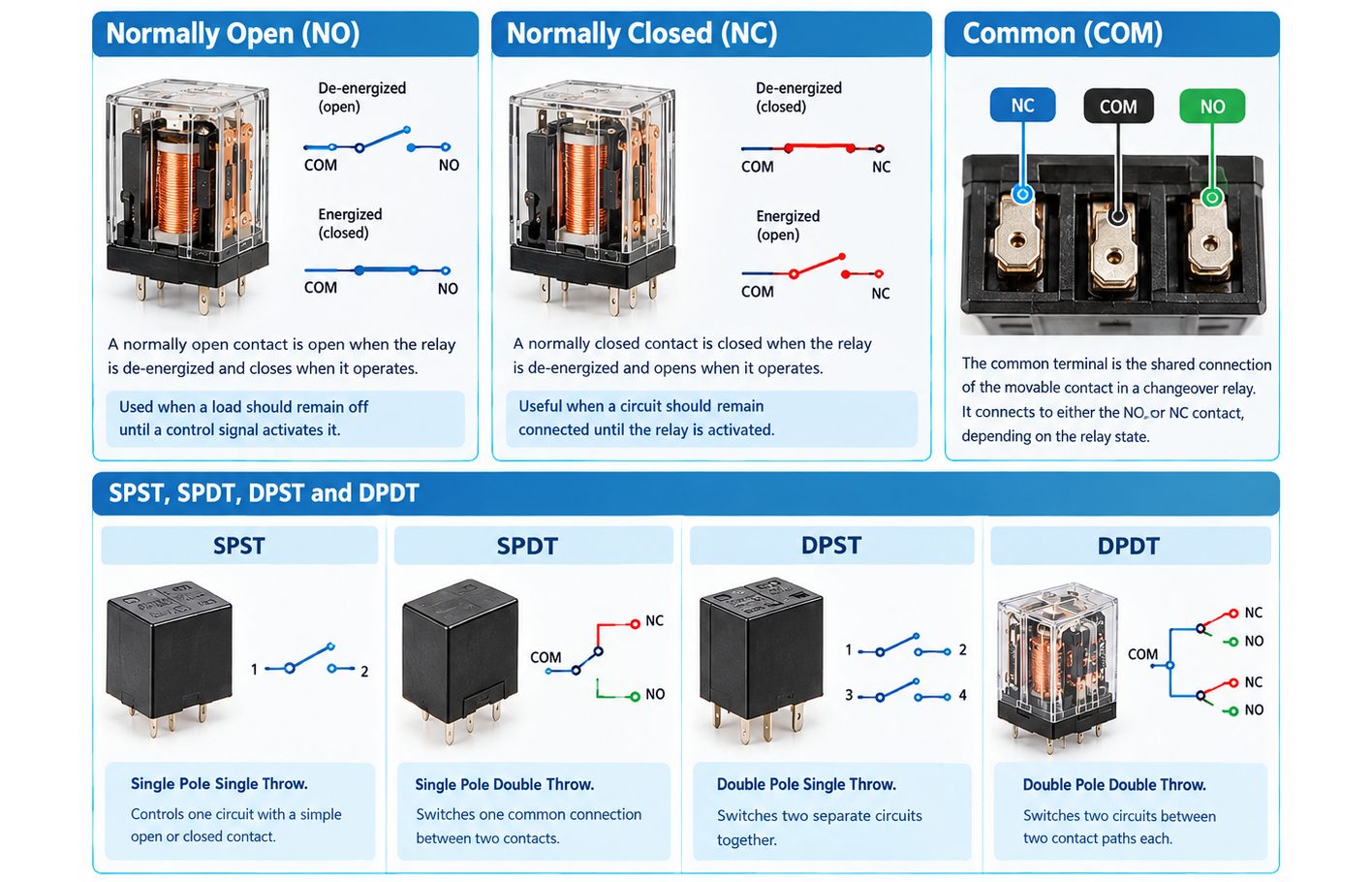

6. Relay Contact Configurations and Terminals

Relay contacts determine which electrical paths are available and how they change when the relay operates.

Normally Open (NO)

A normally open contact is open when the relay is in its normal, de-energized state. When the relay operates, the contact closes.

This configuration is commonly used when a load should remain off until a control signal activates it.

Normally Closed (NC)

A normally closed contact is closed in the relay’s normal, de-energized state. When the relay operates, the contact opens.

This configuration is useful when a circuit should remain connected until the relay is activated.

Common (COM)

The common terminal is the movable contact’s shared connection in a changeover relay. It connects to either the normally open or normally closed contact, depending on the relay state.

SPST, SPDT, DPST, and DPDT

These abbreviations describe the number of poles and switching paths. The actual contact arrangement and ratings should always be verified from the relay datasheet.

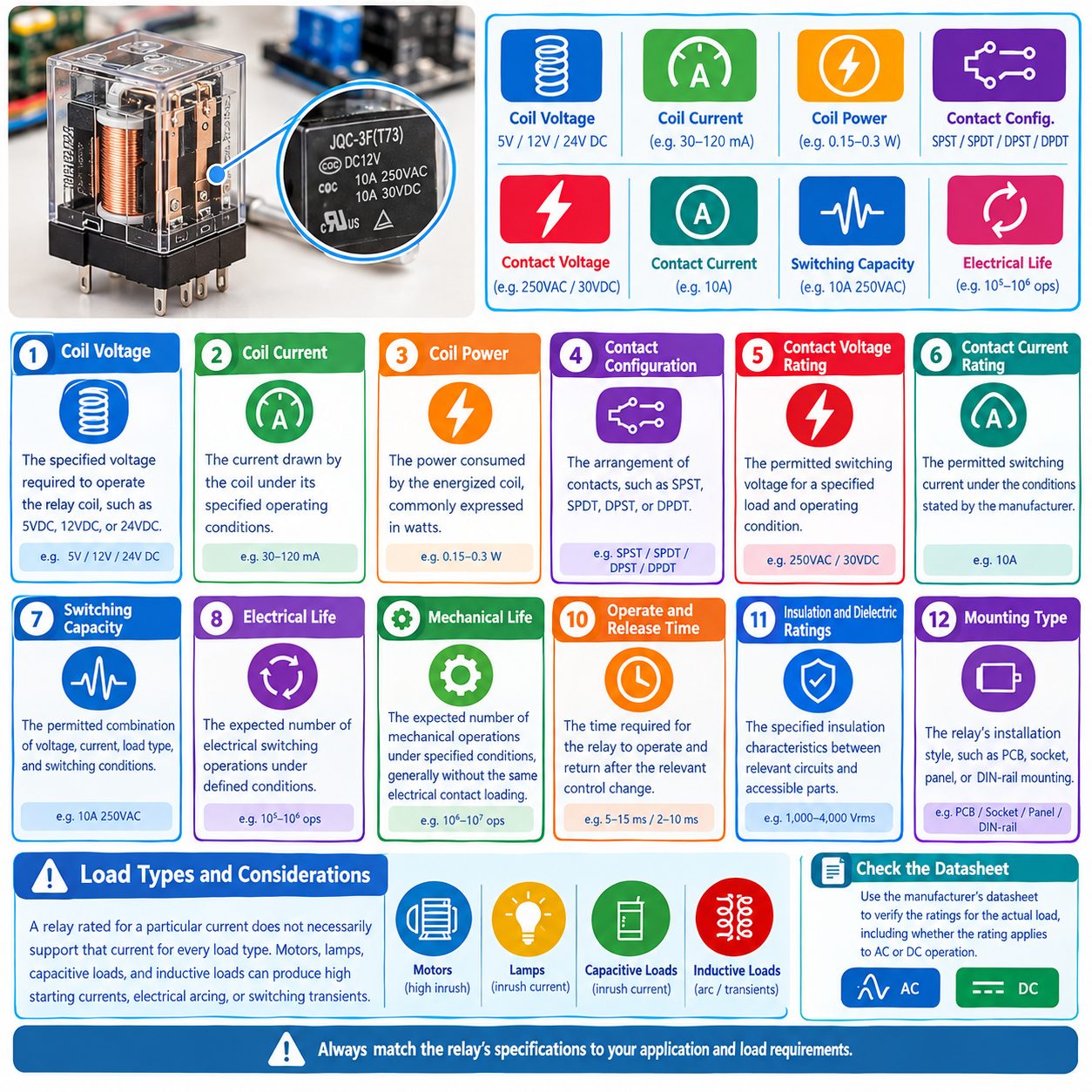

7. Important Relay Specifications

Before selecting a relay, review its electrical and mechanical specifications rather than relying only on the printed current rating.

A relay rated for a particular current does not necessarily support that current for every load type. Motors, lamps, capacitive loads, and inductive loads can produce high starting currents, electrical arcing, or switching transients.

For this reason, use the manufacturer’s datasheet to verify the ratings for the actual load, including whether the rating applies to AC or DC operation.

8. Advantages and Disadvantages of Relays

Advantages

Disadvantages

The most appropriate choice depends on the load, switching frequency, required isolation, power consumption, environmental conditions, and expected service life.

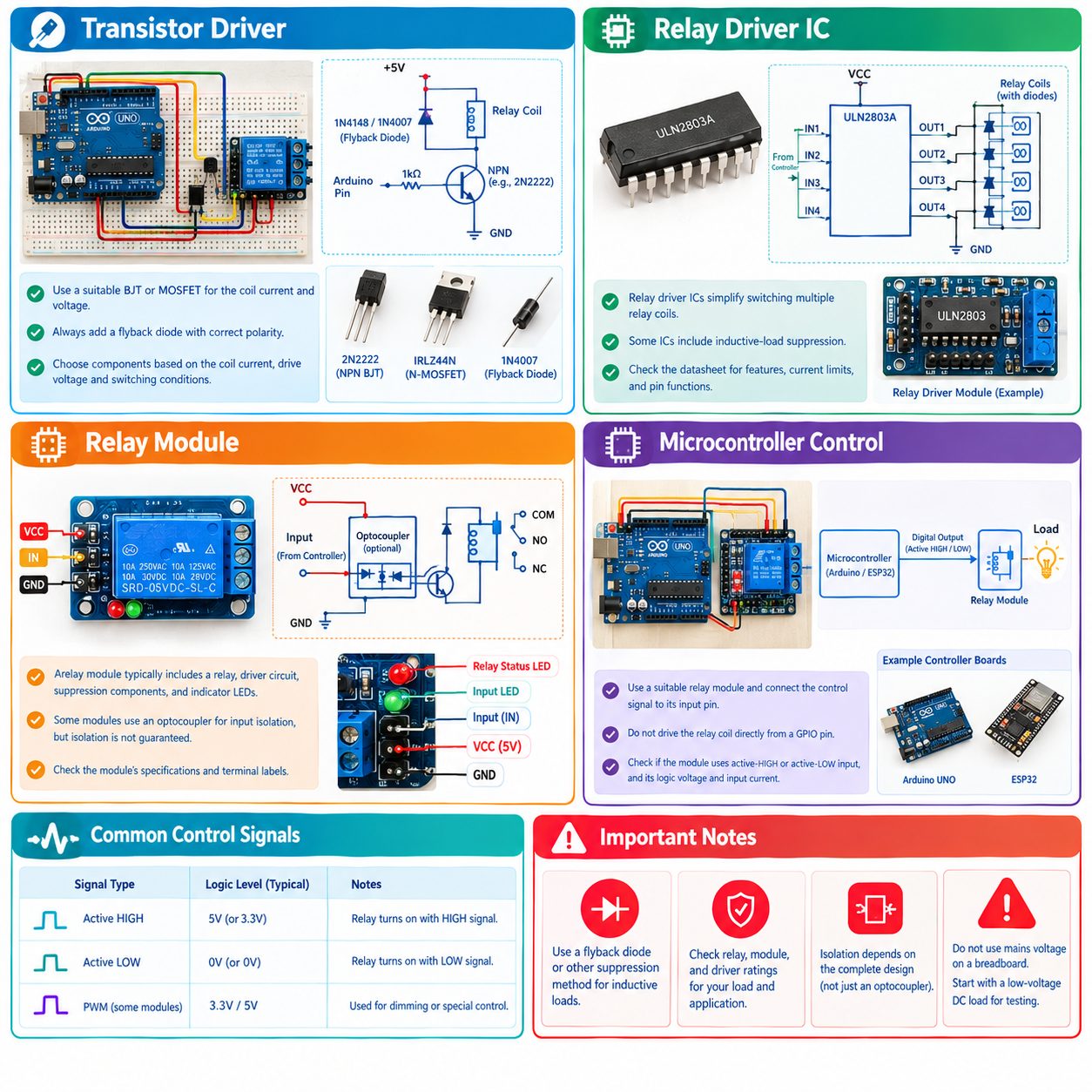

9. Relay Driver Circuits and Control Methods

A relay coil often requires more current than a microcontroller’s GPIO pin can safely provide. Therefore, a driver circuit is commonly used between the controller and the relay.

Transistor Driver

A suitable BJT or MOSFET can switch the current through a DC relay coil. The transistor must be selected for the coil current, drive voltage, and switching conditions.

A suitable flyback diode is commonly connected across a DC relay coil to limit the voltage transient produced when the coil is switched off. The diode’s polarity must be correct, and the chosen suppression method must suit the circuit’s required release time.

Relay Driver IC

A relay driver IC can simplify switching several relay coils. Some driver ICs incorporate inductive-load suppression, but the exact device datasheet must be checked to confirm its capabilities.

Relay Module

A relay module typically combines a relay with some of the required driver circuitry. Depending on the design, it may include a transistor or MOSFET, suppression components, indicator LEDs, and an input interface.

Not all modules provide galvanic isolation, even when they include an optocoupler. Isolation depends on the complete circuit design, power arrangements, PCB layout, and construction.

Microcontroller Control

An Arduino, ESP32, or another microcontroller can generate a control signal for a suitable relay module. The controller should operate the module’s input circuit rather than driving an incompatible relay coil directly.

Also check whether the module uses an active-HIGH or active-LOW input, its logic voltage requirements, and its input current.

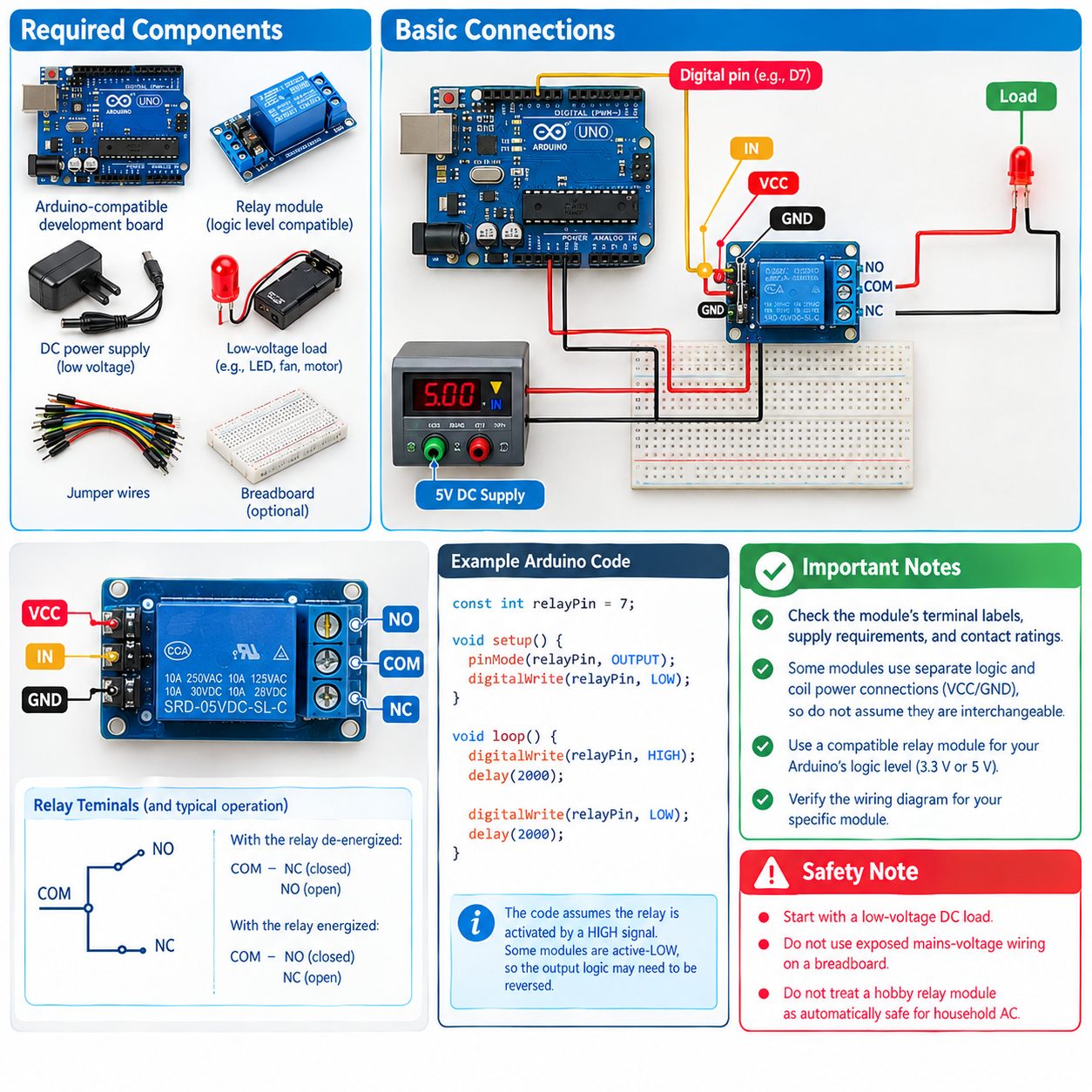

10. How to Connect a Relay to an Arduino?

A relay module is a practical way to introduce relay control in an Arduino project. The following example uses a compatible low-voltage DC load to demonstrate the basic principle.

Required Components:

Basic Connections:

Example Arduino Code

The following example assumes that the relay module is activated by a HIGH signal. Some modules are active-LOW, in which case the output logic must be reversed.

const int relayPin = 7;

void setup() {
  pinMode(relayPin, OUTPUT);
  digitalWrite(relayPin, LOW);
}

void loop() {
  digitalWrite(relayPin, HIGH);
  delay(2000);

  digitalWrite(relayPin, LOW);
  delay(2000);
}

The program activates the relay for two seconds and deactivates it for the next two seconds, repeating continuously.

This is a basic demonstration rather than a complete safety-critical control system. For applications that must prevent unintended activation, consider startup behavior, reset conditions, watchdog handling, and the load’s safe state.

Safety note: Begin with a low-voltage DC load. Do not use exposed mains-voltage wiring on a breadboard or treat an ordinary hobby relay module as automatically safe for household AC.

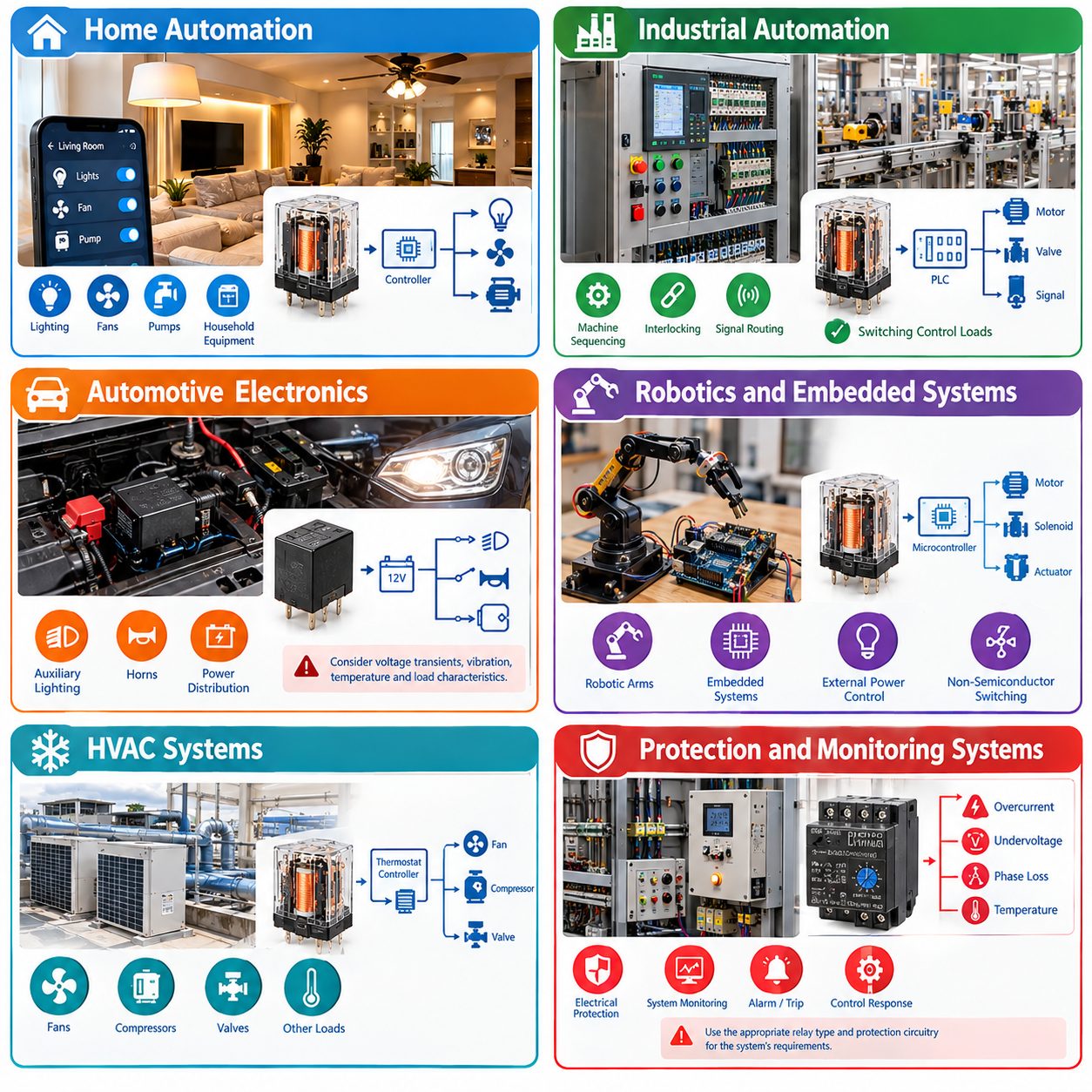

11. Practical Applications of Relays

Relays are used wherever electrical switching or control between circuits is required.

Home Automation

Relays can control compatible lighting circuits, fans, pumps, and other household equipment through a properly designed controller.

Industrial Automation

Control panels use relays for machine sequencing, interlocking, signal routing, and switching suitable control loads.

Automotive Electronics

Automotive relays are used in systems such as auxiliary lighting, horns, and selected power distribution circuits. Automotive voltage transients, vibration, temperature, and load characteristics must be considered.

Robotics and Embedded Systems

Relays can switch external power supplies or compatible actuators under microcontroller control when semiconductor switching is not the preferred solution.

HVAC Systems

Heating, ventilation, and air-conditioning equipment may use relays to control compatible fans, compressors, valves, and other loads.

Protection and Monitoring Systems

Monitoring relays can detect specified electrical abnormalities and initiate a control or protection response. The relay type and surrounding protection circuitry must match the system’s requirements.

12. How to Choose the Right Relay?

Selecting a relay involves matching its specifications to the control circuit, the load, and the operating environment.

Step 1: Identify the Load

Determine whether the load is resistive, inductive, capacitive, a motor, a lamp, or another type. Its startup current and switching behavior may differ significantly from its normal operating current.

Step 2: Select the Correct Coil Voltage

Choose a coil voltage compatible with the available supply. Calculate or verify the required coil current and power to ensure that the driver can operate it reliably.

Step 3: Check the Contact Ratings

Verify the permitted switching voltage and current for the actual AC or DC load. For inductive or high-inrush loads, consult the manufacturer’s specific load ratings and derating guidance.

Step 4: Choose the Contact Configuration

Select NO, NC, or changeover contacts according to the required behavior when the relay is de-energized. Determine whether one or multiple circuits must be switched.

Step 5: Consider Switching Frequency and Service Life

For frequent switching, evaluate the expected electrical life under the actual load. An electromechanical relay may not be the best option for very high switching frequencies.

Step 6: Check Environmental and Installation Requirements

Consider ambient temperature, humidity, vibration, contamination, mounting method, enclosure, insulation, and applicable safety requirements.

Step 7: Compare the Datasheets

Check the manufacturer’s complete specifications, including coil operating limits, contact ratings, electrical endurance, insulation, and any load-specific restrictions.

A relay should never be selected based solely on its nominal current rating or physical appearance.

13. Common Relay Problems and Troubleshooting

Relay faults can arise from incorrect wiring, inadequate coil voltage, excessive load current, contact wear, or unsuitable operating conditions.

Before measuring resistance or changing relay wiring, disconnect power and verify that the circuit is de-energized. Do not attempt to repair exposed mains circuits unless qualified to do so.

14. Relay Safety Considerations

Relay selection and installation must account for both electrical safety and reliable operation.

Verify Voltage and Current Ratings.

Use a relay with suitable ratings for the actual load. A contact rating for resistive loads may not apply to motors, transformers, or capacitive loads.

Separate Control and Load Circuits Appropriately.

A relay can provide isolation between its coil and contacts, but the required isolation depends on the relay’s specifications and the complete assembly. Maintain suitable clearances, creepage distances, insulation, and enclosure protection.

Use Suitable Coil Suppression.

DC relay coils can generate significant voltage transients when de-energized. Use an appropriate flyback diode, TVS device, or other suppression method according to the driver design and release-time requirements.

Protect the Load Circuit.

Use suitable fuses, circuit breakers, overcurrent protection, and wiring sized for the application. A relay is a switching device, not a substitute for circuit protection.

Prevent Accidental Contact.

Enclose hazardous terminals and provide strain relief and suitable insulation. Ensure that the device is installed and used in accordance with applicable electrical codes and the manufacturer’s instructions.

Treat Mains Voltage as Hazardous.

Mains-voltage wiring can cause fatal electric shock and fire. Installation, testing, and maintenance of mains circuits should be performed by a qualified person using appropriate protective measures.

A relay module’s small size or optocoupler does not, by itself, establish that the complete assembly is safe for mains switching.

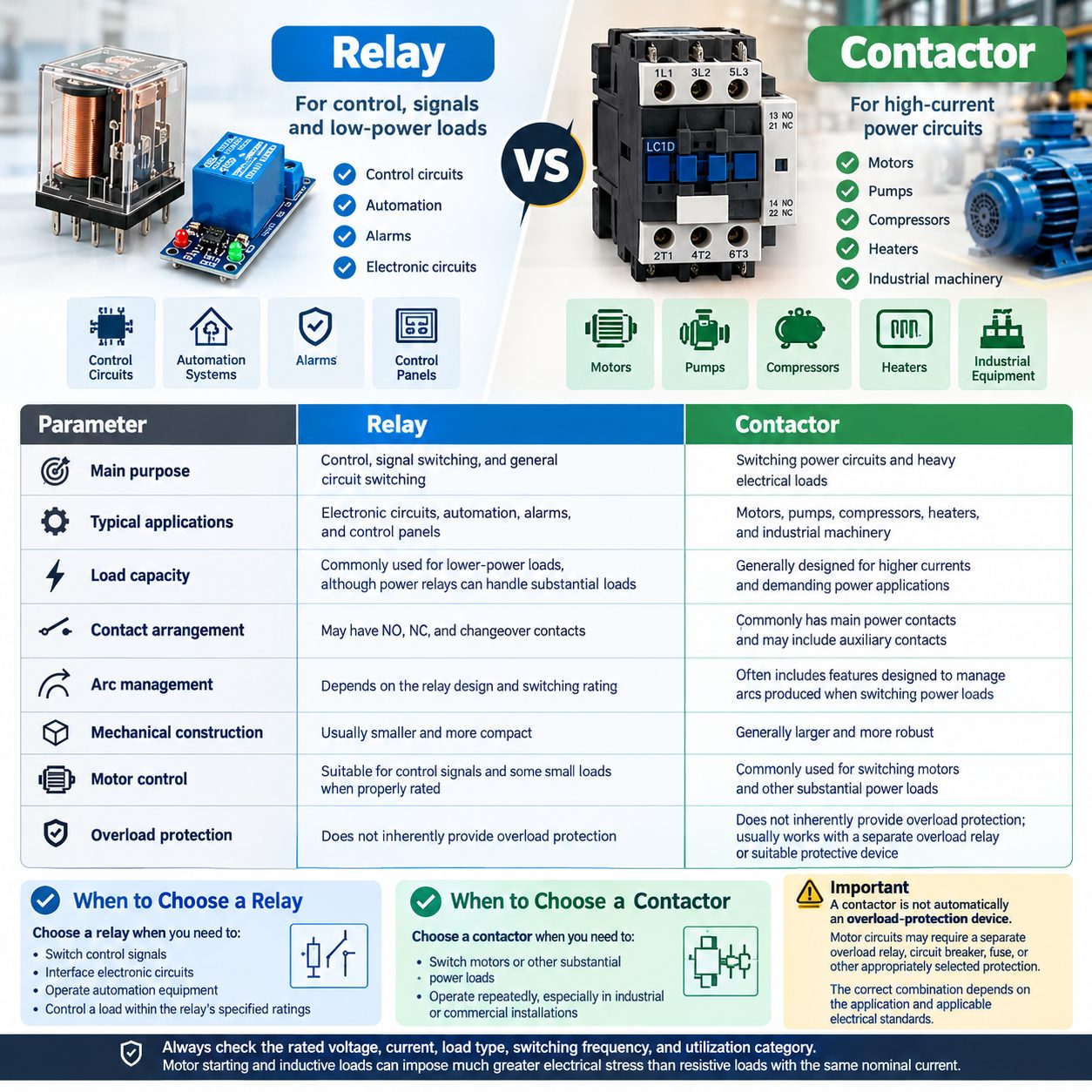

15. Difference between Relays vs. Contactors

Relays and contactors are electrically controlled switching devices used to control circuits. Although they operate on similar principles, they are designed for different switching requirements.

A relay is commonly used in control circuits, signal switching, automation systems, and applications involving relatively low currents. A contactor is designed primarily for switching higher-current power circuits, such as those supplying electric motors, heaters, pumps, and industrial equipment.

Key Differences Between Relays and Contactors

How to Choose Between a Relay and a Contactor

Choose a relay when you need to switch control signals, interface electronic circuits, operate automation equipment, or control a load within the relay’s specified ratings.

Choose a contactor when you need to switch motors or other substantial power loads repeatedly, especially in industrial or commercial installations.

Always check the rated voltage, current, load type, switching frequency, and applicable utilization category. Motor starting and inductive loads can impose much greater electrical stress than resistive loads with the same nominal current.

Important: A contactor is not automatically an overload-protection device. Motor circuits may require a separate overload relay, circuit breaker, fuse, or other appropriately selected protection. The correct combination depends on the application and applicable electrical standards.

16. Frequently Asked Questions

What is the main purpose of a relay?

The main purpose of a relay is to control an electrical circuit using a separate electrical signal. It allows a control system to switch a compatible load without directly carrying the load current through the controller.

What is the difference between a relay and a transistor?

A conventional electromechanical relay uses movable contacts, while a transistor uses semiconductor technology to control current. Relays can switch different types of loads and provide suitable galvanic isolation, while transistors are generally faster and better suited to frequent switching. The correct choice depends on the application.

Can an Arduino control a relay directly?

An Arduino can control a compatible relay module through a digital output. However, a conventional relay coil often requires more current than a microcontroller pin can safely supply, so a suitable driver circuit is normally required.

What is the difference between NO and NC contacts?

NO contacts are open when the relay is in its normal, de-energized state and close when it operates. NC contacts are closed in the normal state and open when the relay operates.

What is the difference between an electromechanical relay and a solid-state relay?

An electromechanical relay uses a physical contact mechanism, whereas a solid-state relay uses semiconductor switching elements. Electromechanical relays offer low contact resistance in many applications, while solid-state relays provide silent operation and avoid mechanical contact wear.

Can a relay switch both AC and DC loads?

Some relays can switch both AC and DC loads, but the permitted voltage and current ratings may differ between them. Always verify the ratings for the specific load type in the manufacturer’s datasheet.

Why is a diode connected across a relay coil?

A flyback diode provides a path for the coil current when a DC relay is switched off, limiting the resulting voltage transient. This helps protect the transistor or other driver component from damage.

What does a 5V relay mean?

A 5V relay typically has a coil designed to operate at a nominal 5VDC supply. This does not mean that its contacts are rated to switch only 5V, nor does it establish their maximum switching voltage or current. Those values must be checked separately.

How do I know whether a relay is faulty?

Check the coil supply, control signal, wiring, and contact operation against the manufacturer’s specifications. A multimeter can help identify an open coil or incorrect contact state when the relay is safely disconnected from power. A relay that clicks may still have damaged contacts.

Do relays consume power?

Yes. A conventional electromechanical relay consumes power while its coil is energized. A latching relay typically requires power only during a switching operation, although its driver circuitry may also consume power.

17. Conclusion

Relays are essential switching components in electronics, embedded systems, industrial automation, and electrical control applications. They enable a control signal to operate a separate circuit and are available in several forms, including electromechanical, solid-state, reed, latching, and time-delay relays.

Understanding the operating principle, contact configuration, coil requirements, and switching ratings is essential for choosing and using a relay correctly. The selection process should also consider load characteristics, switching frequency, electrical life, installation conditions, and safety requirements.

For beginners, a compatible relay module controlled by an Arduino is a practical starting point for learning relay operation. For engineers, selecting the correct relay requires careful examination of the manufacturer’s datasheet and the electrical requirements of the complete system.

Ultimately, the best relay is not simply the one with the highest current rating or lowest price. It is the one that meets the application’s electrical, mechanical, environmental, and safety requirements reliably.

const int relayPin = 7;

void setup() {
  pinMode(relayPin, OUTPUT);
  digitalWrite(relayPin, LOW);
}

void loop() {
  digitalWrite(relayPin, HIGH);
  delay(2000);

  digitalWrite(relayPin, LOW);
  delay(2000);
}
