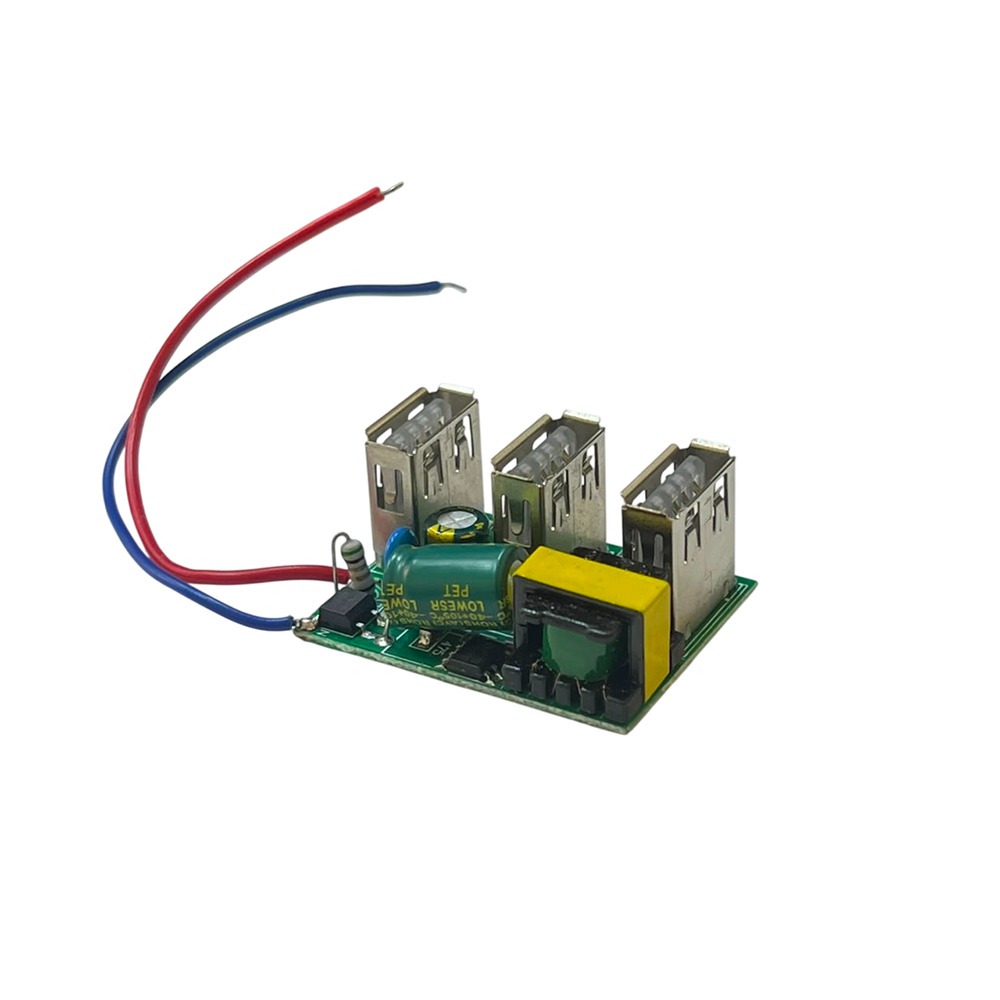

AC/DC Multi-Port USB-A Power Supply Module 5V 1.2A 3 Port
The AC/DC Multi-Port USB-A Charger Module is a compact switching power supply that converts AC mains voltage into a stable 5V DC output distributed across three USB-A ports. It is suitable for integrating into DIY charging stations, custom enclosures, smart furniture, kiosks, and embedded electronic products that require convenient USB charging capabilities.
Designed with efficiency and reliability in mind, the module features built-in protection circuitry to help ensure safe operation during continuous use. Its compact PCB design allows easy installation into custom projects while providing a convenient way to power smartphones, development boards, USB accessories, LED devices, and other 5V USB-powered equipment.
Features:
- Compact PCB design for embedded applications.
- Three USB-A output ports.
- Stable regulated DC output.
- High-efficiency AC to DC conversion.
- Suitable for continuous operation.
- Easy integration into DIY projects.
- Ideal for custom charging stations.
- Reliable switching power supply design.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | AC/DC USB Charger Module |
| Input Voltage | 100–240V AC |
| Input Frequency | 50/60Hz |
| Output Voltage | 5V DC |
| Maximum Output Current | 1.2A Total |
| USB Ports | 3 × USB-A |
| Maximum Output Power | 6W |
| Output Regulation | Regulated Switching Output |
| Isolation | AC to DC Isolated Power Supply |
| Mounting | PCB Module |
| Wire Length | 81.5mm |
Pinout:
| Connection | Description |
|---|---|
| L (Red) | AC Live Input |
| N (Blue) | AC Neutral Input |
Applications:
- USB charging stations.
- DIY electronics projects.
- Smart home devices.
- Raspberry Pi power source.
- Arduino power supply.
- Embedded systems.
- USB-powered LED lighting.
- Industrial control panels.
- Kiosks and vending machines.
- Consumer electronic products.
Package Included:
- 1x AC/DC Multi-Port USB-A Power Supply Module 5V 1.2A 3 Port.
